DGS-3630 Series

Layer 3 Stackable Managed Switches

- Tolly-certified Performance.
- Cost-effective Networking.
- Unlimited Possibilities.

Download the Datasheet

BULLET-PROOF YOUR ENTERPRISE NETWORK MORE COST-EFFECTIVELY

The DGS-3630 Series incorporates 4x embedded 10G stacking/uplink ports, built-in 6kV surge protection, Intelligent Switch Resource Management, and upgradeable software images.

Designed for Small to Medium Businesses, Enterprises and ISPs

The DGS-3630 Series gives new meaning to flexibility and scalability. Featuring high port densities, switch stacking, and easy management, the switches are ideal for a variety of applications at every scale. With Gigabit Ethernet SFP, 10G SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.

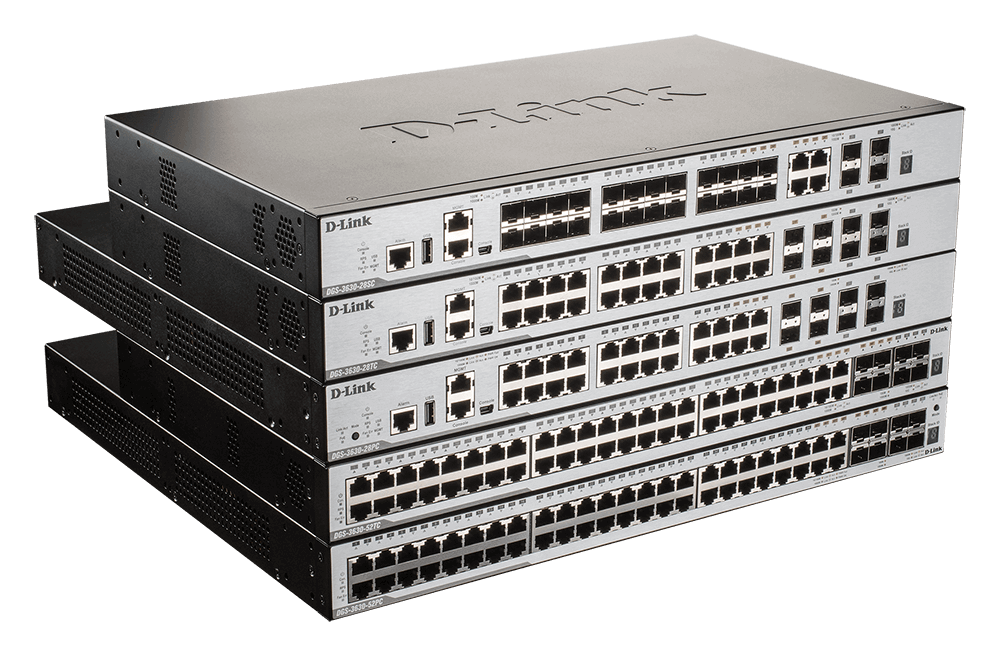

DGS-3630 Series Switches

Tolly-Certified

Tolly, a leading global provider of third-party validation services for vendors of IT products and services, independently tested and verified the outstanding performance of the DGS-3630 Series.

“The D-Link Systems switch matched or exceeded the performance of the Cisco Systems Catalyst across all the performance tests. In addition, the D-Link DGS-3630 has a significantly lower purchase price and consumes much less power than the Cisco Systems Catalyst 3650-24TD-E.”

Download the full report

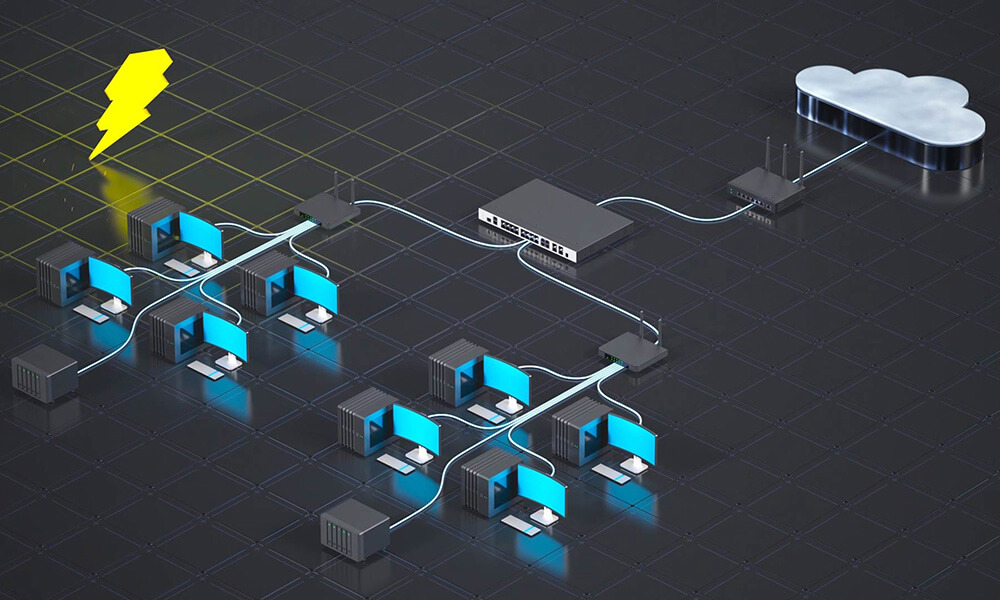

Built-in 6 kV Surge Protection

The DGS-3630 Series features built-in high-capacity 6 kV surge protection on all PoE and non-PoE Ethernet access ports. This helps protect the switches against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged by electrical surges and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacements.

The Core of Your Small to Medium Business Network

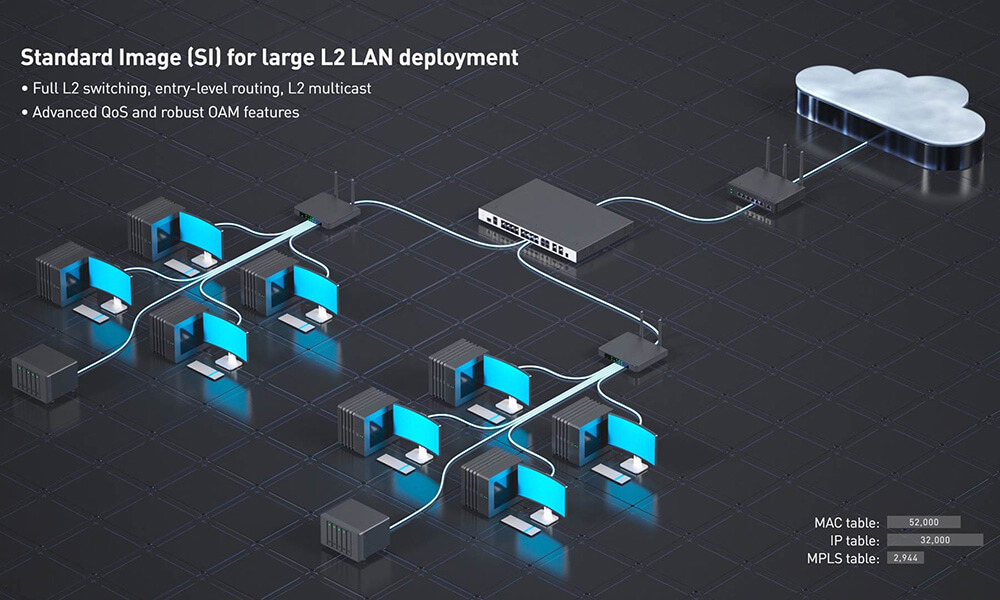

In small to medium businesses, the DGS-3630 Series functions as the core of your network. For large L2 LAN deployments, the Standard Image incorporates comprehensive Layer 2 features, while SRM maximizes the switch IP table.

The Powerful Aggregator for your Enterprise Network

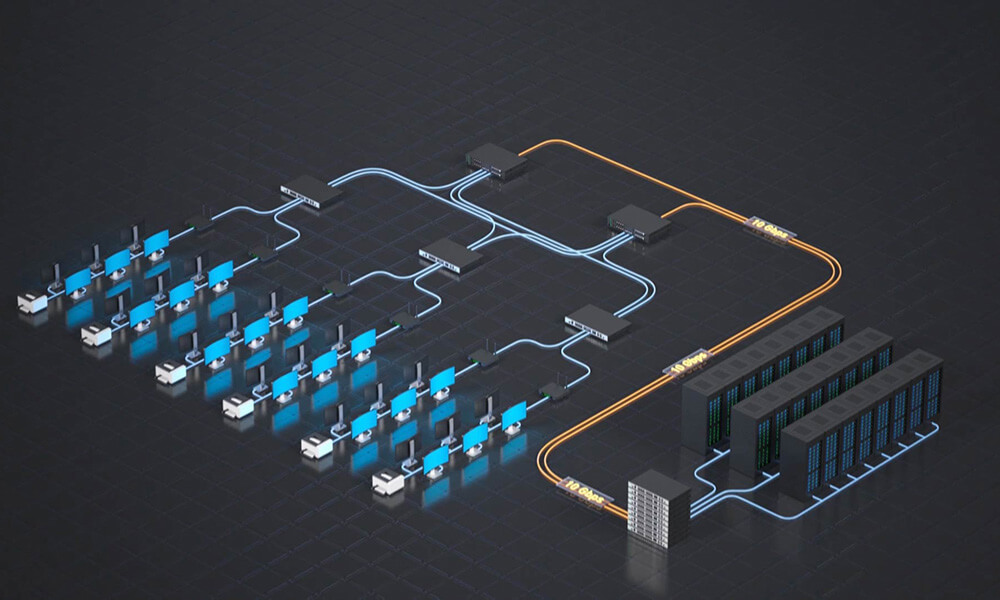

With the Enhanced Image unlocking additional advanced layer 3 routing features, and SRM augmenting the layer 3 table, you can use the embedded 10G stacking ports to stack up to 9 switches and deliver up to 80 Gbps bandwidth.
Leverage 10G Fiber uplinks for superior, scalable connectivity, and improved reliability.

Upgrades as an Access in Large MPLS Networks

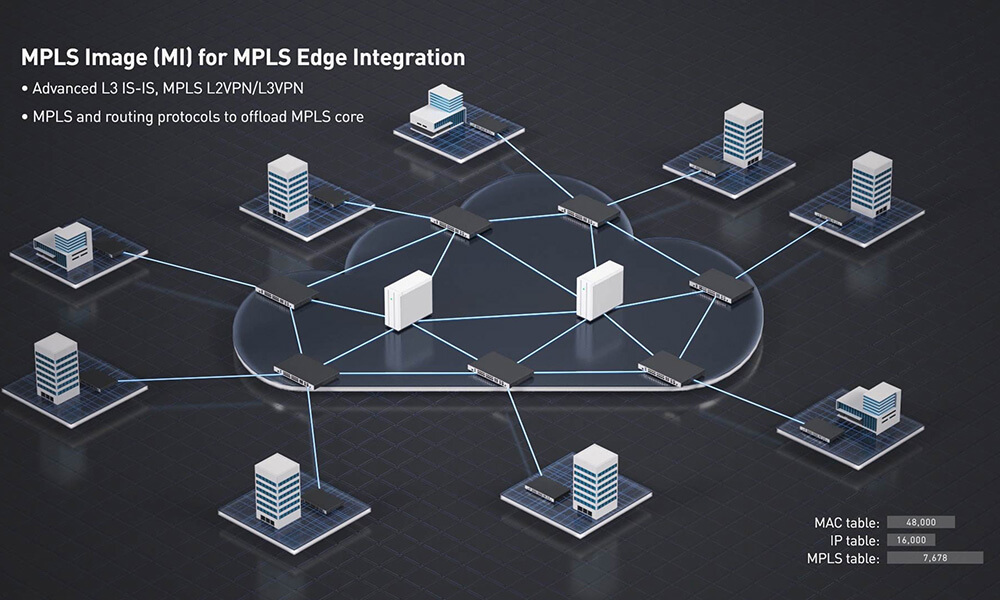

The DGS-3630’s MPLS Image enables it to double up as an Access for large MPLS networks to help offload the MPLS core effectively.

Security, Performance & Availability

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Troubleshoot Faster, Reduce Downtime

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Auto Surveillance VLAN

VLANs prioritize traffic from VoIP phones and IP cameras in the network so that they can effectively and securely manage surveillance and data over their network. The DGS-3630 easily adds a reliable IP Surveillance network into your existing data network, saving you money by eradicating the need for a complex network installation.

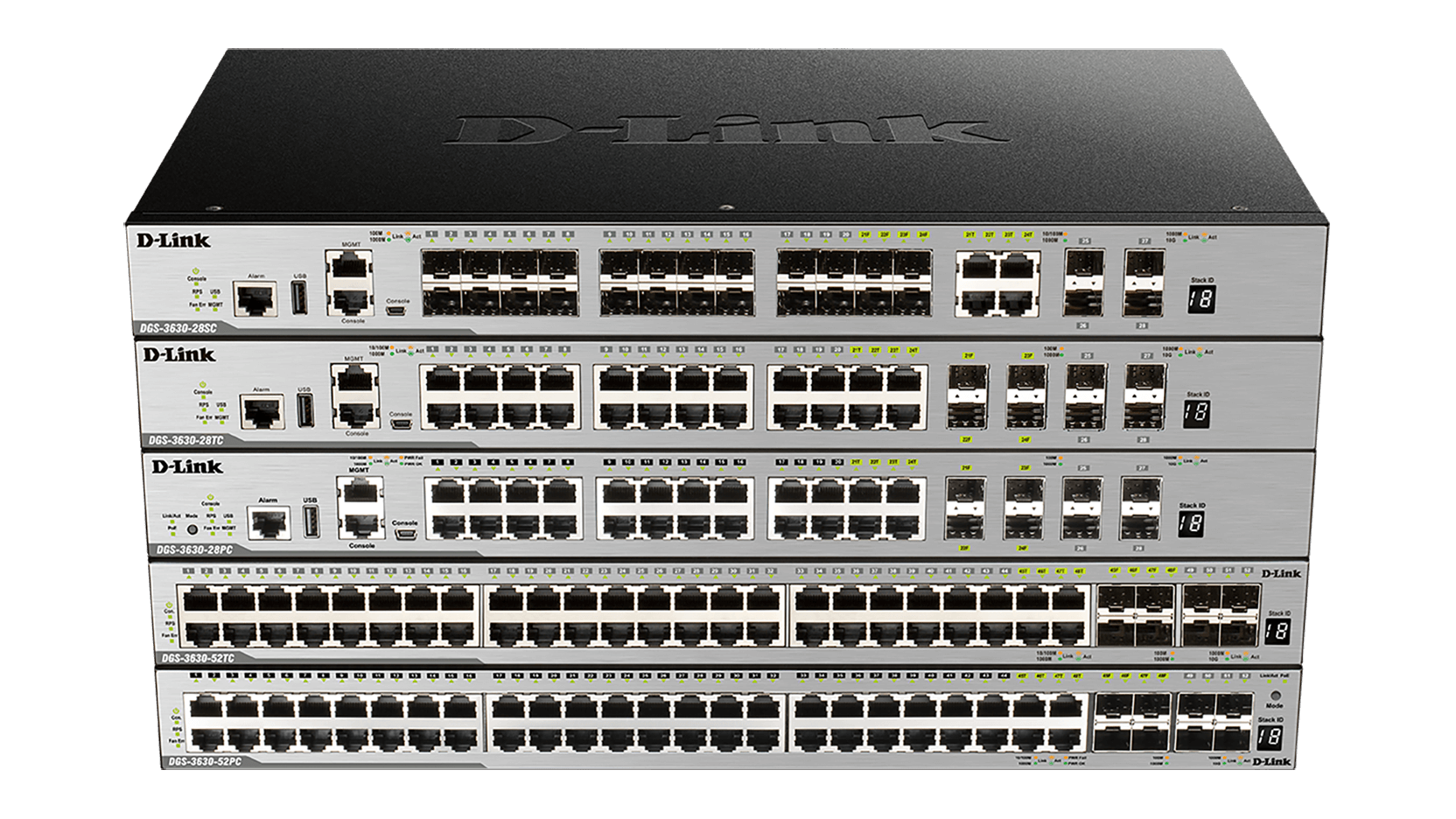

Product
DGS-3630-28PC
DGS-3630-28PC

28-Port Layer 3 Stackable Managed PoE Gigabit Switch

DGS-3630-28SC
DGS-3630-28SC

28-Port Layer 3 Stackable Managed Gigabit Fiber Switch

DGS-3630-28TC
DGS-3630-28TC

28-Port Layer 3 Stackable Managed Gigabit Switch

DGS-3630-52PC
DGS-3630-52PC

52-Port Layer 3 Stackable Managed Gigabit PoE Switch

DGS-3630-52TC
DGS-3630-52TC

52-Port Layer 3 Stackable Managed Gigabit Switch

Interface
20 x
10/100/1000BASE-T PoE ports
4 x
Combo 10/100/1000BASE-T PoE/SFP ports
4 x
10G SFP+ ports
20 x
SFP ports
4 x
Combo 10/100/1000BASE-T/SFP ports
4 x
10G SFP+ ports
20 x
10/100/1000BASE-T PoE ports
4 x
Combo 10/100/1000BASE-T/SFP ports
4 x
10G SFP+ ports
44 x
10/100/1000BASE-T PoE ports
4 x
Combo 10/100/1000BASE-T PoE/SFP ports
4 x
10G SFP+ ports
44 x
10/100/1000BASE-T ports
4 x
Combo 10/100/1000BASE-T/SFP ports
4 x
10G SFP+ ports
Performance
Switch Capacity
128 Gbps
128 Gbps
128 Gbps
176 Gbps
176 Gbps
Max. Packet Forwarding Rate
95.24 Mpps
95.24 Mpps
95.24 Mpps
130.95 Mpps
130.95 Mpps
Technical Specification
Maximum Heat Dissipation
1600.31 BTU/h
216.81 BTU/h
144.58 BTU/h
1653.85 BTU/h
212 BTU/h
Maximum Power Consumption
PoE off: 44.3 W
PoE on: 469.3 W
63.58 W
42.4 W
PoE off: 54.1 W
PoE on: 485 W
62 W
MTBF
259,222.76 hours
280,612.09 hours
300,190.46 hours
199,929.76 hours
263,936.78 hours
PoE
PoE Budget
370 W
370 W
