5G M2M Modem
DWM-311-G
- Product Status (Revision A1 v1.00): Live
- 5G speeds of up to 3.4 Gbps1 for ultra-fast internet access and data transfer
- 1 x 10/100/1000/2500 Ethernet LAN port for high-speed wired connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Where to buy
High Speed 5G NR
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
Backwards Compatibility
Compatible with 4G/3G networks, ensuring broader coverage and enhanced connectivity.
2.5 GbE Wired Reliability
2.5 Gigabit Ethernet LAN port for high-throughput mission-critical M2M applications.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices and network from anywhere via the D-ECS management platform.
Hassle-Free Installation

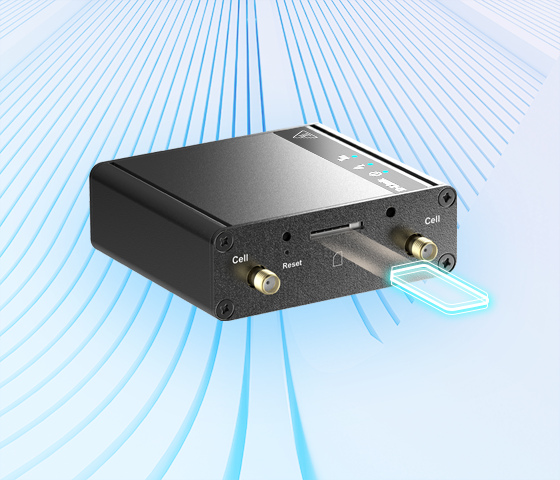

Simply insert the SIM card (Micro-SIM 3FF) and the DWM-311-G is ready to connect your M2M devices to the Internet via the high-speed 5G cellular network. The rugged compact design allows the DWM-311-G to be installed in virtually any location, even in extreme environments. Convenient wall and DIN-rail mounting options allow the DWM-311-G to be mounted virtually anywhere.
Remote Management
D-Link offers the latest advanced EaaS cloud computing platform to enable flexible, secure and low latency networks for mission-critical operations.
With fast, flexible deployment and having full control and visibility over your network, the D-Link D-ECS centralized management platform offers extensive tools to enable device management, traffic analytics, security, cost-management and much more.
Robust Build Quality

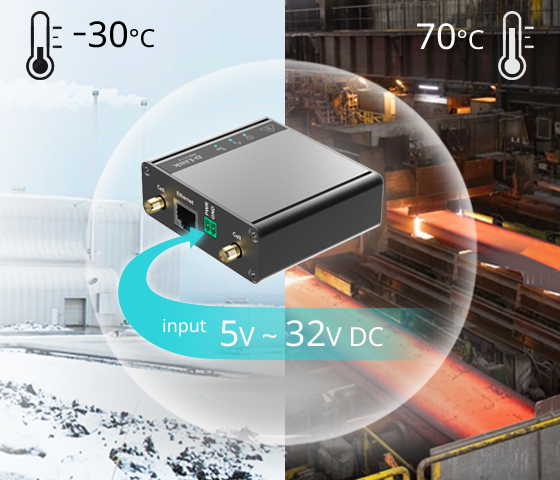

The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-311-G is ready for the most demanding M2M applications in virtually any environment.
The DWM-311-G is also engineered to safely accept wide input voltage(VDC 5~32V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Related Products
Purpose-built to ensure uninterrupted M2M connectivity, even in harsh environments
The DWM-311-G’s 5G and Ethernet interfaces allow wired connectivity to be added to virtually any device. 5G and Ethernet provide driverless, instant access for any Ethernet-enabled device without the need for pre-configuration or special software, making the DWM-311-G a true plug-and-play solution, suitable for mass deployment or small-scale use. If unique settings are required, the easy-to-use web interface can be configured through any web browser.
Versatile Applications

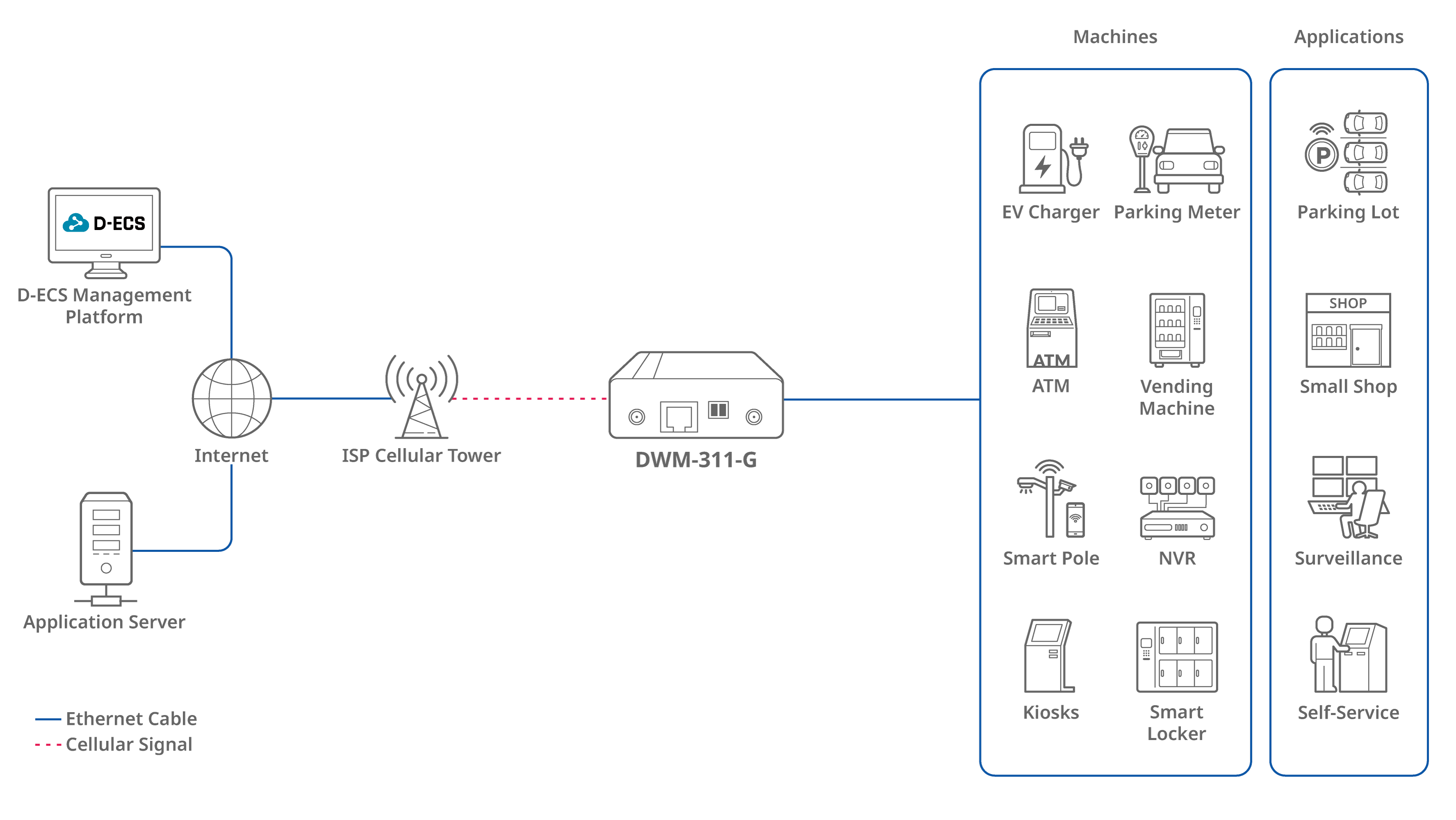

Designed to meet the needs of high-bandwidth, time-sensitive, and mission-critical M2M applications, the cost-effective DWM-311-G offers one 2.5 GbE LAN port for blazing-fast M2M connectivity, suitable for high-speed services such as smart locker, EV charger, POS, parking lot, ATM, vending machines, kiosks, digital signage.
Specification
|
4G/5G Antenna Connectors
|
4 x SMA antennas |
|---|---|
|
Bridge Mode
|
Yes |
|
Cellular Module
|
5G NR |
|
Ethernet Interface
|
1 x 2.5GE |
|
IPv6
|
Cellular IPv6 |
|
LAN
|
DHCP Server |
|
Local Management
|
Web UI/SSH |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
1 x 3FF Micro-SIM |
|
SMS Notification
|
Yes |
|
Power Input
|
2-pin TB for DC 5-32V |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular |
SKU & Certifications
5G NR Bands
| NA SKU 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/ n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 4G LTE: FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 TDD: B34/B38/B39/B40/B41/B42/B43/B46(L AA)/B48 EU SKU 5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 4G LTE: FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71 TDD: B38/B40/B41/B42/B43 |
|---|---|
Certification
|
CE/UKCA FCC |
Approval
|
AT&T Verizon |
