| Metric | Value |
|---|---|
| Ports | 24 × 10G SFP+ & 6 × 100G QSFP28 |
| Switching Capacity | 1.7 Tbps |
| Forwarding Rate | 1,249.92 Mpps |
| Packet Buffer | 6 MB |
| Stacking (VSF) | Up to 6 units — single logical chassis |
| High Availability | M-LAG · ERPS · Hot-swap PSU & fans |
A compact, high-density switch engineered for high availability, open automation and service-level operations — across campus, data center and carrier edge.

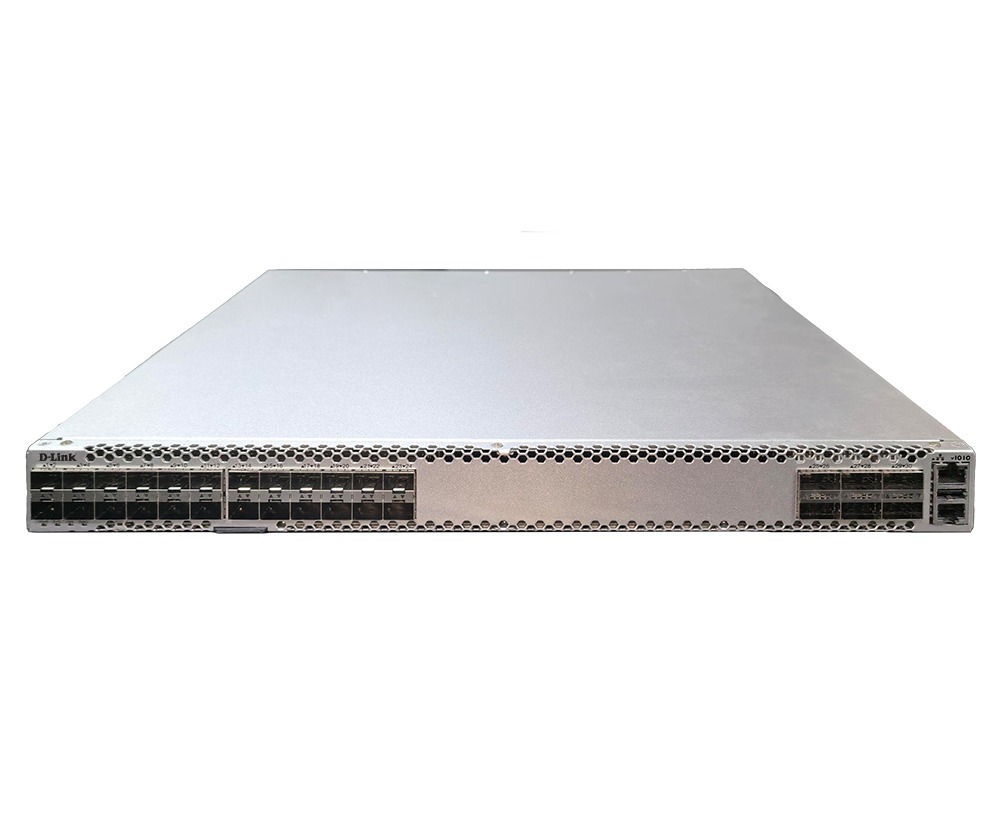

24×10G SFP+ for dense server and access connectivity, plus 6×100G QSFP28 for spine and uplink — ideal for mixed-speed environments.
VXLAN EVPN overlays, VRF tenant segmentation, M-LAG active-active resiliency and MPLS-ready operation — campus core, leaf or compact PE from one SKU.
Stack up to 6 units into a single logical chassis with unified management and resilient forwarding — simplifying campus scale-out and lifecycle operations.

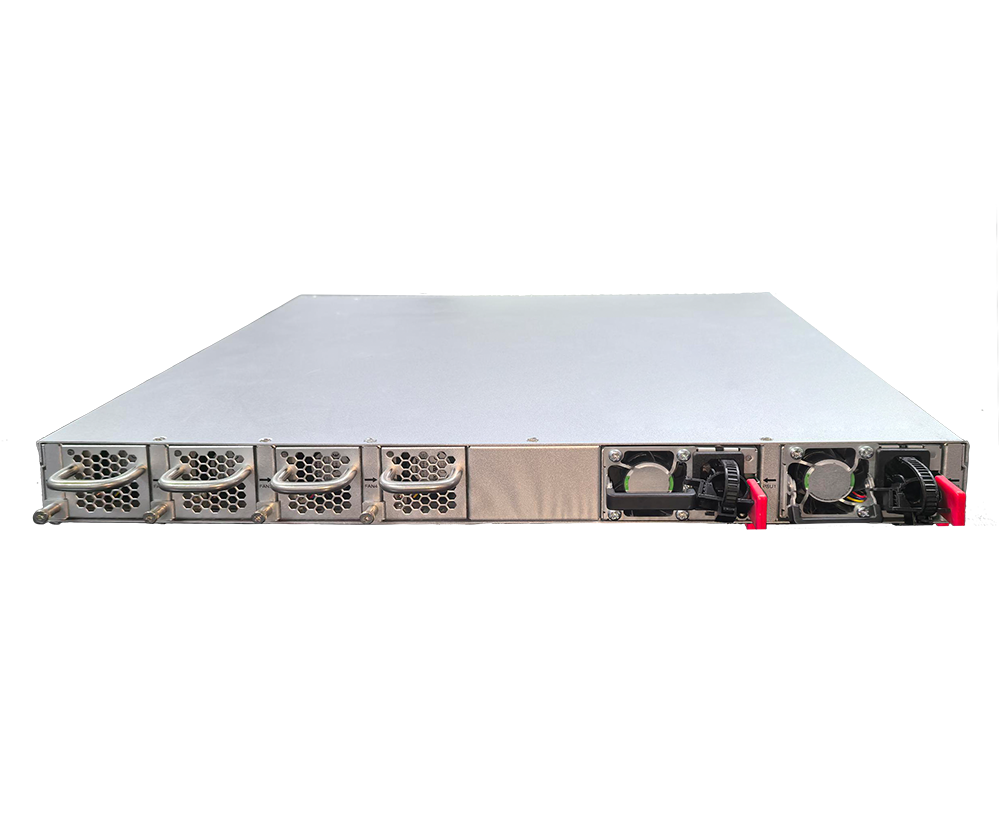

M-LAG for active-active multi-chassis LAG, ERPS ring protection and hot-swappable redundant power and fans for mission-critical uptime.
ZTP for zero-touch provisioning, Netconf, SNMP and integration points for modern automation toolchains and controller-driven environments.
Carrier OAM, multicast optimisations and hardened management features for CCTV, public address and rail transit network deployments.
Runs D-LinkNOS exposing modern management, full L2/L3 features and overlay support — enabling traditional and programmable network models from the same hardware.
Five distinct deployment scenarios demonstrating the DXS-F3400-28SC's ability to span campus, data center and service-provider responsibilities without changing hardware.
Overview: Stack multiple DXS-F3400-28SC units as a single VSF logical chassis to form the campus core. A unified management and forwarding plane simplifies distribution and services — ideal for education campuses, corporate sites and branch aggregation where operational simplicity and resilience are both critical.
Business value: Simplified single-pane management, resilient forwarding and scale-out without complexity.
| Topology Element | Details |
|---|---|
| Core device | DXS-F3400-28SC VSF stack (up to 6 units) |
| Uplinks to WAN/Core | 100G QSFP28 |
| Downlinks to distribution | 10G SFP+ |
| Key protocols | VSF, M-LAG, ERPS, BGP, OSPF |
Overview: Deploy in M-LAG pairs at the distribution layer to give access switches active-active forwarding and predictable convergence. Where single-pane management is preferred, VSF-based distribution simplifies lifecycle operations across multi-building campus networks.
Business value: Active-active forwarding, graceful convergence and reduced operational complexity across multi-building sites.
| Topology Element | Details |
|---|---|
| Distribution device | DXS-F3400-28SC M-LAG pair or VSF cluster |
| Uplinks to campus core | 100G QSFP28 |
| Downlinks to access | 10G SFP+ — dual-homed |
| Key protocols | M-LAG, VSF, ERPS, STP/RSTP |
Overview: Serves as an excellent border leaf for micro-data centers, lab environments and testbeds. Provides policy demarcation, telemetry collection and high-capacity 100G uplinks — enabling fast service rollout and secure separation between test and production zones.
Business value: Policy demarcation, fast telemetry and 100G uplinks for secure zone separation and rapid service iteration.
| Topology Element | Details |
|---|---|
| Border leaf device | DXS-F3400-28SC |
| Uplinks to internet/core | 100G QSFP28 — eBGP peers |
| Downlinks to DC zones | 10G SFP+ — VRF-isolated segments |
| Key protocols | VXLAN EVPN, VRF-Lite, BGP, policy routing |
Overview: Deploy as ToR for 10G server racks with 100G uplinks to spine. Use M-LAG dual-homed pairs for classic high-availability ToR with active-active server connectivity, or in VSF clusters for a virtual ToR model with simplified lifecycle operations and single-pane management.
Business value: High-availability ToR with active-active server connectivity and 100G spine uplinks — M-LAG or VSF depending on operational preference.
| Topology Element | Details |
|---|---|
| ToR device | DXS-F3400-28SC M-LAG pair or VSF cluster |
| Uplinks to spine | 100G QSFP28 — dual-homed to Spine-1 & Spine-2 |
| Downlinks to servers | 10G SFP+ — dual-homed active-active |
| Key protocols | VXLAN EVPN, M-LAG, VTEP, ECMP |
The complete DC fabric stack. Every layer covered — from ToR to spine. All running D-LinkNOS.
| Model | Description | Role |
|---|---|---|
| DXS-F3400-28SC | 24×10G SFP+ · 6×100G · VSF · M-LAG · MPLS | Campus Core / Leaf / PE |
| DXS-F3610-54S | ToR 48×10G SFP+ · 6×100G uplinks | DC Leaf · Border Gateway |
| DQS-5F000-56ZS | 25G Leaf · 100G uplinks · MC-LAG | 25G DC Leaf |
| DTS-F5000-32ZS | Spine · 32×100G · 3.2 Tbps | Spine / Aggregation |
| Ports | 24 × 10G SFP+ & 6 × 100G QSFP28 |
|---|---|
| Console Port | RJ-45 console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management |
| USB Port | 1*2.0 port |
| Switching Capacity | 1.7 Tbps |
| Packet Buffer Memory | 6 MB |
| MAC Address Table | Up to 32K entries |
| Power input | 100 to 240 V AC, 50Hz ± 10% (Hot-Swap)*2 |
| Dimensions | 440 x 410 x 44 mm |
| Operating Temperature | 0° to 40° C |
| Flash | 1 GB - NAND FLASH/ MMC - 8GB |
| Dram | 4 GB |
| Power Consumption | No Load: 45W, Full Load: 70W |
| MTBF (H) | >200 000 |
| Stackability | VSF (up to 6 Units) |
