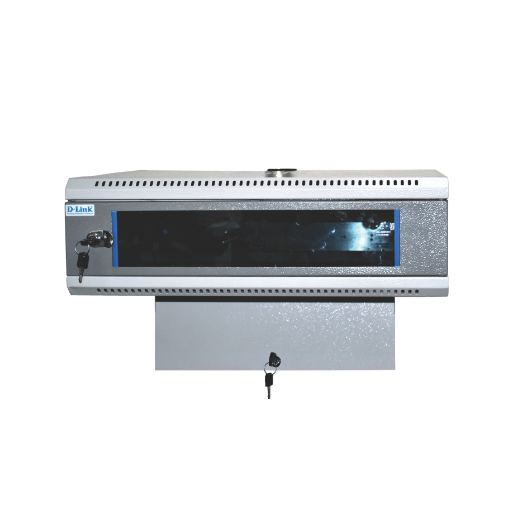

2U DVR Enclosure with Bottom Openable Feature

NWR-2U-5540-GR-DVR

  • Product Status (Revision IN): Live
  • Conforms to DIN 41494 OR equivalent ISO Standards
  • Adjustable 19" mounting verticals maximize space and flexibility.
  • Depth adjustable mounting slots
  • Precision engineering and advanced technology deliver superior quality and faster delivery
  • Top and bottom Panel with ventilation and cable entry facility
  • Provision to mount cooling fans on the top panel
  • Powder coated finish with pretreatment process meeting all industry standards
  • Grounding and Bonding Options. 100% assured compatibility with all equipment conforming to DIN 41494

Download the datasheet.

Where to buy

Specification

Download the datasheet.

Model No NWR-2U-5540-GR-DVR
Rack Standard Conforms to DIN 41494 or equivalent standard
Construction Welded
Front Door Lockable Toughened Glass Door
Basic Frame Steel
Equipment Mounting DIN Standard Slots
Mounting Angle 19" Mounting angles made of formed steel
Standard Finish Powder Coated
Standard Color Grey
Static Load 15 kgs
Top and Bottom Cover Welded to Frame, Bottom openable for DVR Service
