Allowing the switch to be placed on the desktop or mounted on the wall
Connect to up to 16 devices for fast file transfers and smooth media streaming
Fanless design boosts reliability, perfect for noise-sensitive environments
Integrated energy-saving technology to reduce power usage automatically

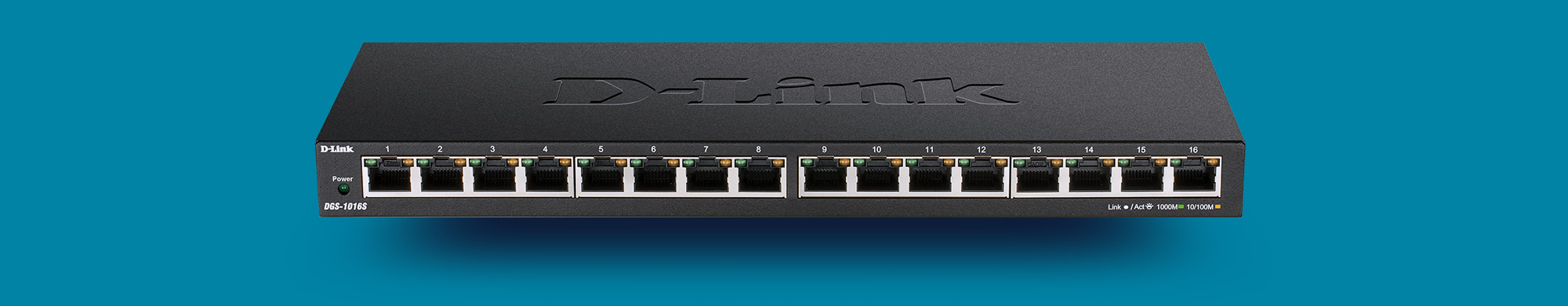

The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.
Gigabit connectivity with support for 802.1p Quality of Service means faster uploads and downloads without video streaming or voice calls being interrupted.

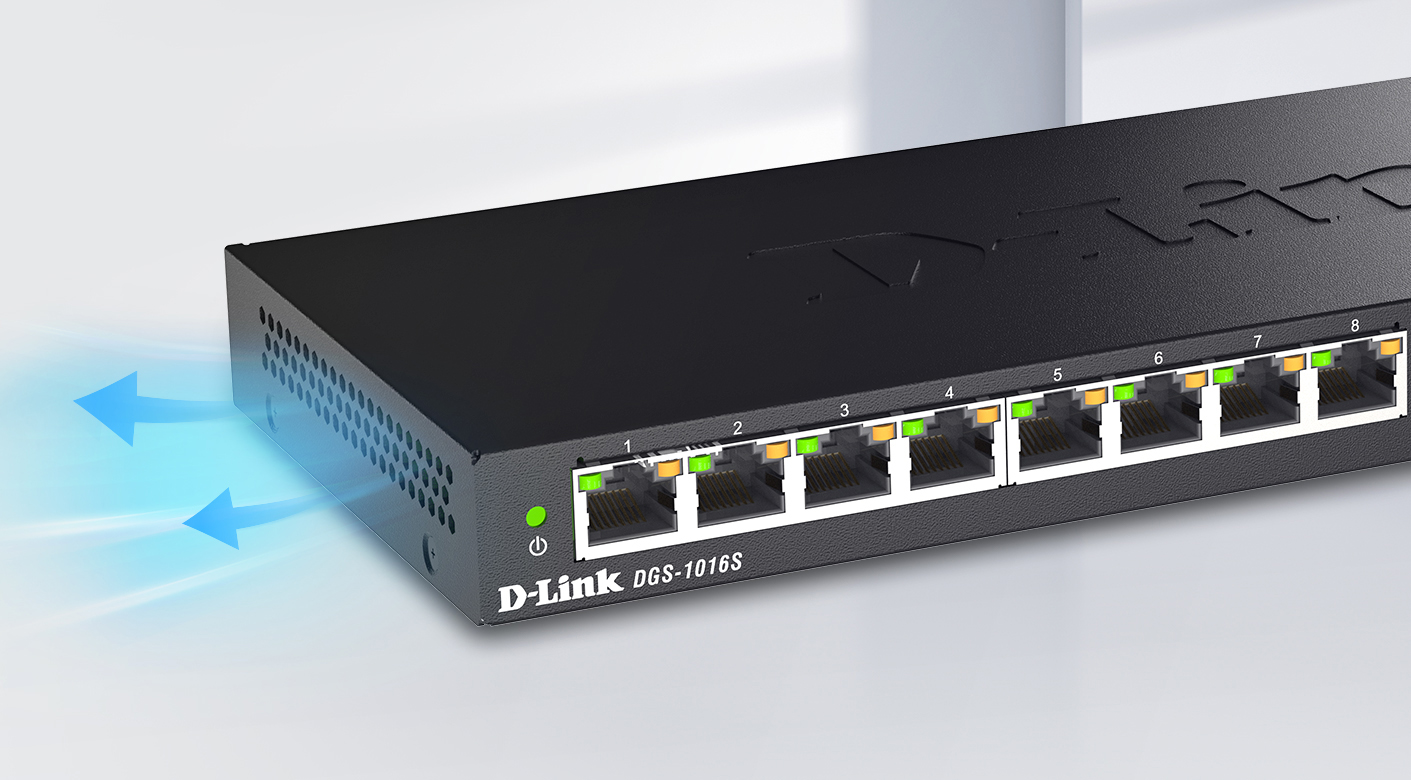

Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.
Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.
Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.
Protégé par l’un des leaders mondiaux du secteur.
|
Interfaces
|
16 x 10/100/1000 Mbps LAN ports |
|---|---|
|
Switch Capacity
|
32 Gbps |
|
Advanced Features
|
Auto-MDI/MDIX crossover for all ports Full/half-duplex for Ethernet/Fast Ethernet speeds Supports 9,216 byte jumbo frames Wire-speed reception and transmission Auto-negotiation for each port Quality of Service (8 queues, strict mode) Back pressure at half-duplex operation |
|
Transmission Method
|
Store-and-Forward |
|
MAC Address Table Size
|
8K entries |
|
Maximum Forwarding Rate
|
23.808 Mpps |
|
Packet Buffer RAM
|
512 KB per device |
|
Media Interface Exchange
|
Auto-MDI/MDIX adjustment for all ports |
|
Dimensions
|
280 x 110 x 25 mm |
|
Weight
|
0.742 kg |
|
Power Input
|
12 V / 1 A |
|
Temperature
|
Operating: 0 to 40 °C (32 to 104 °F) |
|
MTBF
|
647,567.92 hours |
|
Power Consumption
|
Maximum: 9.645 W |
