5 km Long Range Wireless AC Bridges
DAP-3711
- Product Status (EU_RevA1): Live
- Connect wirelessly at up to 5 km distance with up to 867 Mbps speed
- Point-to-point or point-to-multipoint deployment
- IP66-rated water-resistant and dust-tight housing
- TDMA Technology, 8 kV surge protection
- 128-bit personal and enterprise wireless encryption
- PoE support and comes with PoE injector
Where to buy

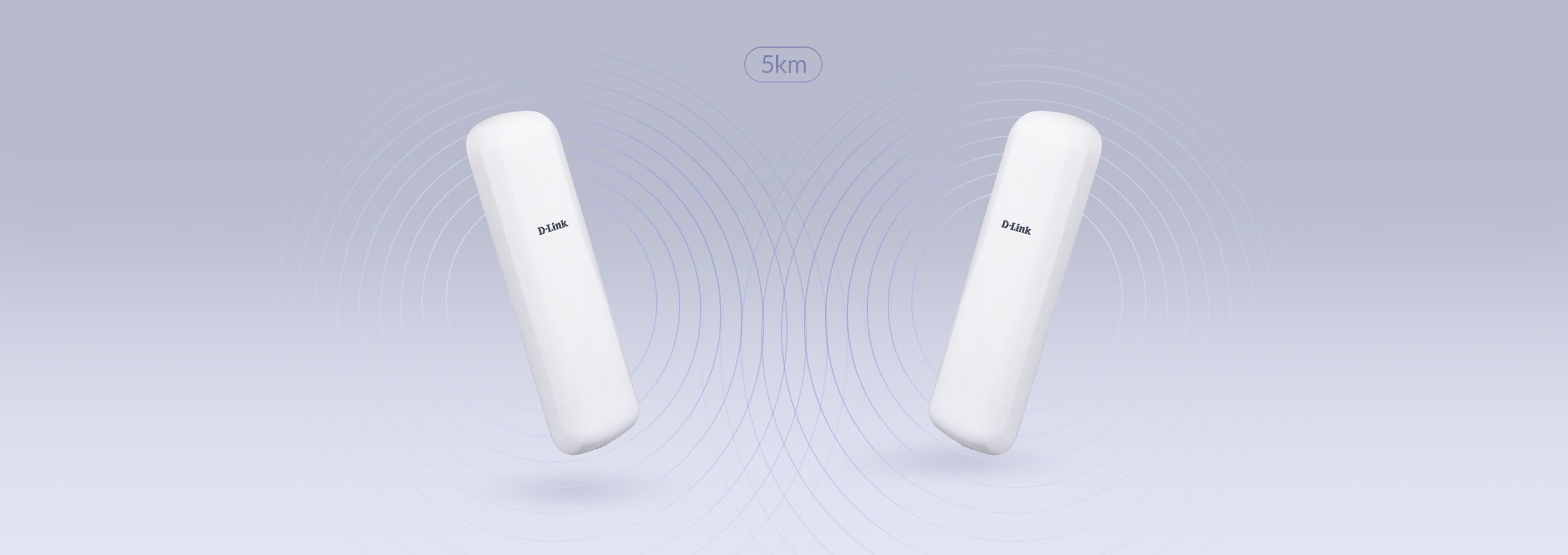

The power to deliver long-distance connectivity
The DAP-3711 is the essential infrastructure wireless solution in providing a reliable solution for outdoor wireless networking.
High-Gain Directional Antenna
Fast, stable, and long-range wireless coverage for up to 5 km
TDMA Technology
High speeds and consistent coverage that filters out interference
IP66 Rated
Water-resistant and dust-tight housing boasts a longer product life
Point-to-Point and Point-to-Multipoint
Distribute connectivity to single or multiple locations wirelessly over long distances
8 kV Surge Protection
Your device and network are protected against unexpected surges, such as lightning
High-Speed Wi-Fi
Blazing speeds of up to 867 Mbps
Wi-Fi Security
128-bit personal and enterprise wireless encryption
PoE Ready
Power over Ethernet makes for an easier installation with a single cable
Designed for Wireless ISPs
Rapid and cost-effective Internet distribution to get customers connected
The power to withstand tough weather
The power to withstand tough weather
The DAP-3711 is enclosed in an unobtrusive IP66-rated housing, protecting it from rain and dirt. With built-in 8 kV surge protection, the DAP-3711 has protection against unexpected surges (such as lightning strikes), enabling it to be deployed where it’s needed, even in harsh environments and tough conditions.
Bring connectivity to areas with limited or no access to fixed internet.
The DAP-3711 features state-of-the-art hardware, including powerful high-gain 15 dBi directional antennas that effortlessly extend the coverage of 5GHz wireless AC speeds of up to 867Mbps to distances of up to 5 km away.
Consistent coverage that filters out interference
The DAP-3711 supports TDMA technology, creating a schedule for the bridge's access point and the client. The sender and receiver are allocated a time slot for transmissions, eliminating hidden node data collisions, maximising airtime efficiency, significantly cutting down interference, and dramatically improving the transfer rate.
Simple installation with Power over Ethernet (PoE)
The DAP-3711 comes with a PoE injector included. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specs
|
Type
|
Infrastructure AP Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC |
|
Frequency band mode
|
Single-band |
|
Wireless speed
|
867 Mbps 5 GHz |
|
Antenna type
|
Embedded sector antenna |
|
Antenna gain
|
15 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Plastic |
|
IP rating
|
IP66 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Maximum number of SSIDs
|
1 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
WEB
|
Supported
|
|
Syslog
|
Supported
|
