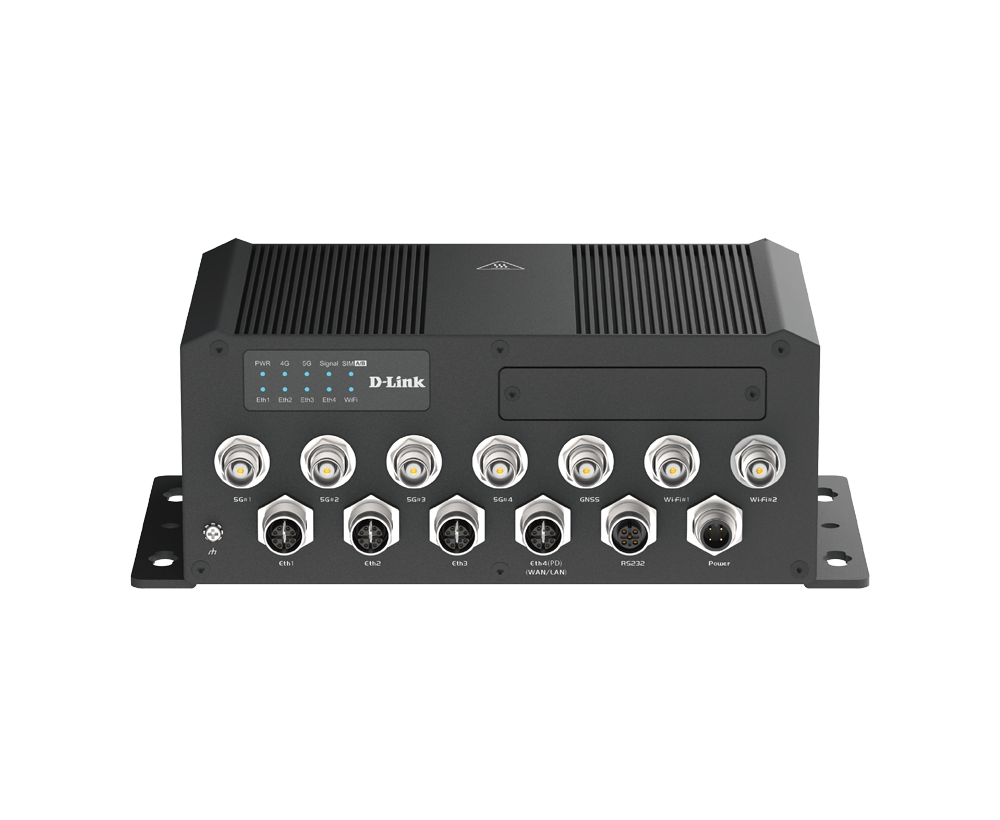

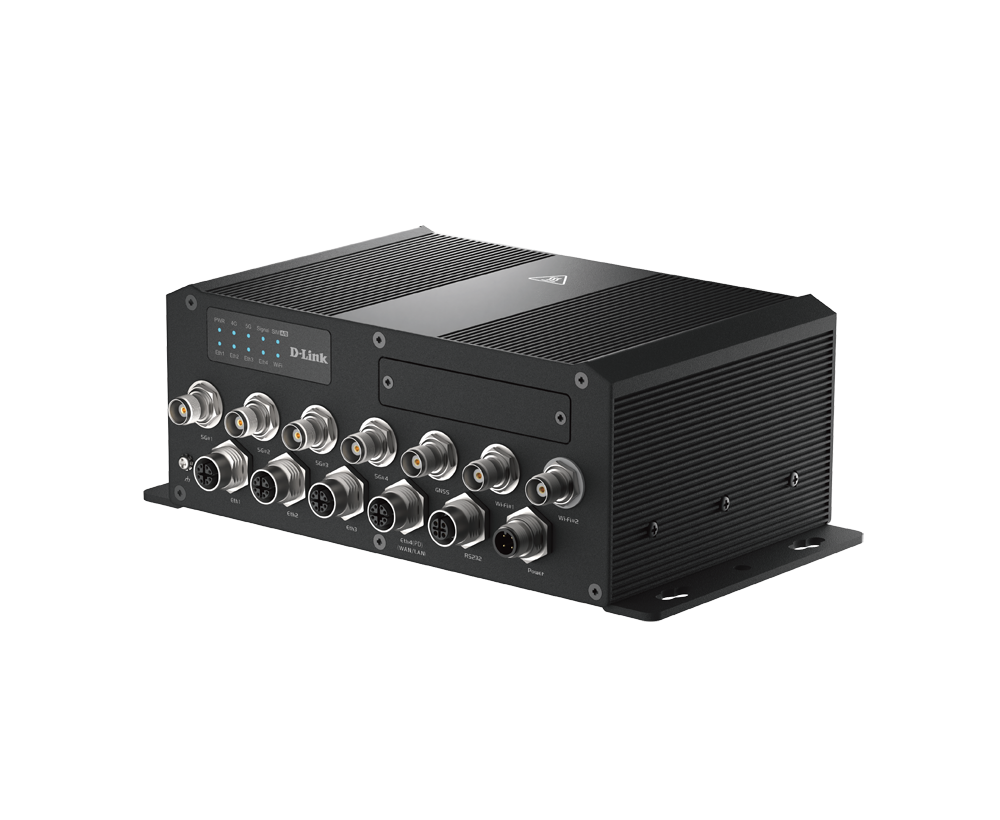

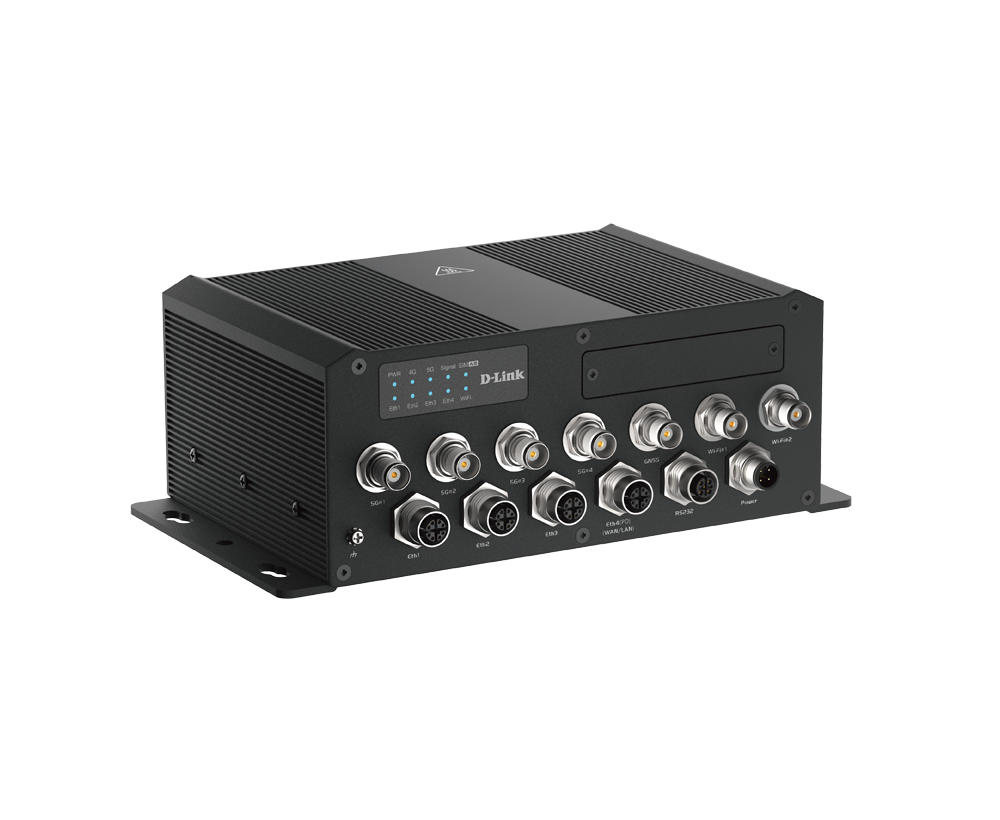

5G Transit Gateway
DTM-570-GS
- Product Status (Revision A1_v1.11): Live
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- 4 x Gb Ethernet Ports(M12 X-Code)
- Wi-Fi 6 AX1800 to connect multiple on-board devices
- 1 x RS-232 (M12 A-coded)
- 1 x USB port for device log information
- GNSS for GPS/GLONASS
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Power Input: DC 18-75V (M12 A-coded), or through PoE (Eth4) (X-coded)
Where to buy
User Benefits
5G SA & NSA
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.
Wi-Fi 6 AX1800
Enable high-speed in-vehicle Wi-Fi for seamless passenger and Wi-Fi equipments access and streamlined operations.
Rugged M12 Connectors
Industrial-rated locking threads ensure on-board connections are protected from harsh elements.
Rail Related Certified
Compliant with EN45545, EN50155, and EN50121-3-2 to ensure reliability and safety in rail transportation.
GPS Location
Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.
Wide Voltage Input Range
Safely accepts power input from various on-board power sources for convenient installation.
Enhanced Onboard Telematics and Infotainment

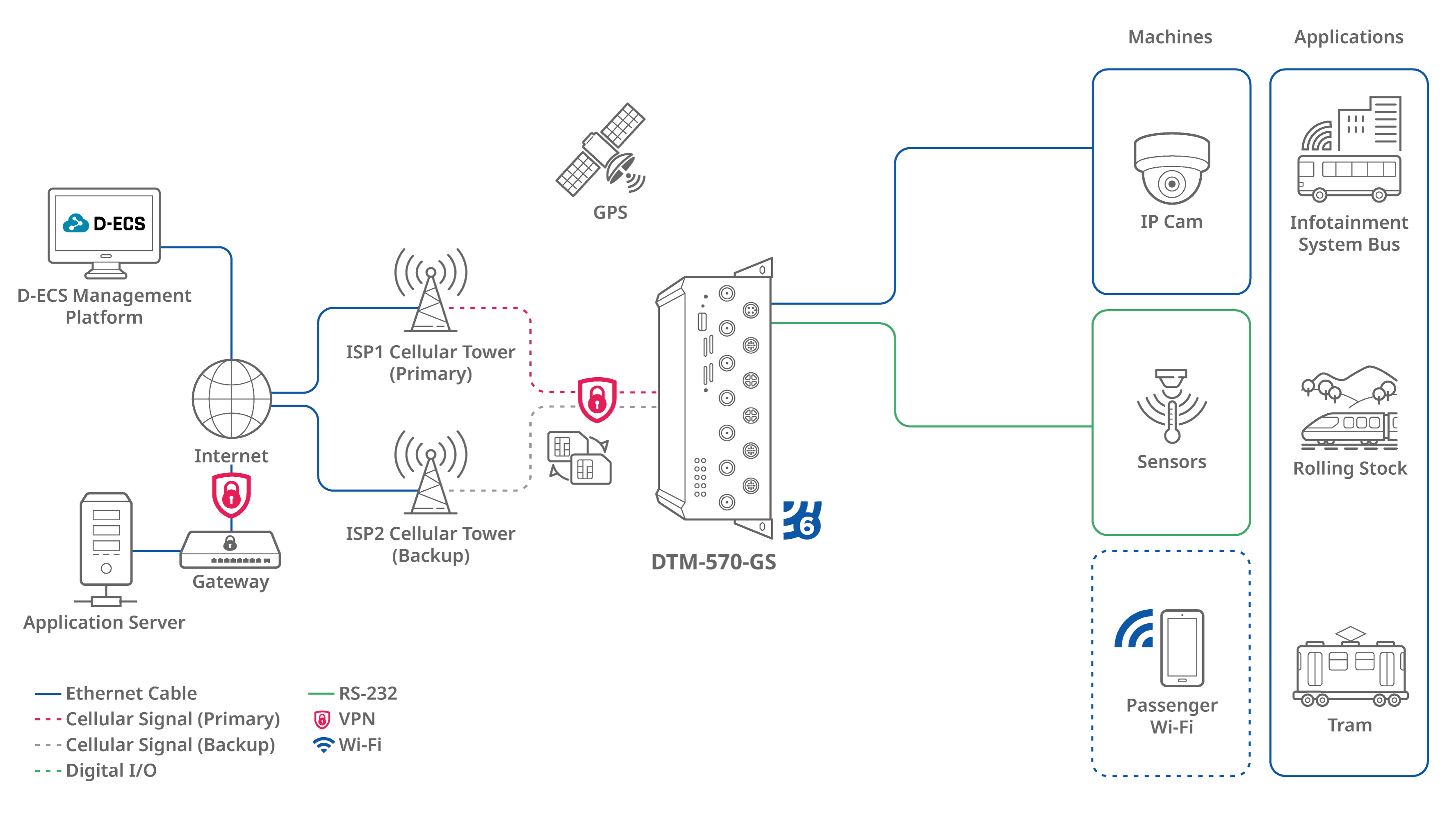

The DTM-570-GS 5G Transit Gateway empowers rail transport with advanced connectivity, linking onboard RS232 and Ethernet devices to the Internet via a robust 5G network. This setup not only facilitates real-time monitoring for passenger safety through surveillance systems but also ensures seamless operation of railway onboard systems. Additionally, it delivers precise station arrival notifications on the digital signage, enhancing the rail passenger experience.
Optimize Railway Operations with Location-Based Services
The DTM-570-GS enhances railway operations with precise GPS location positioning, enabling effective real-time asset utilization. This gateway supports operators by offering detailed insights into the location and mileage of trains, facilitating optimal routing services that assure punctuality and enhance efficiency through timely service.
Robust Design for Rail Application
The DTM-570-GS 5G Transit Gateway is engineered to withstand the rigors of rolling stock environments, meeting mandatory requirements of EN45545, EN50155, and EN50121-3-2 rail-related standards. Its robust design includes industrial-rated M12 connectors, a corrosion-resistant zinc-plated steel casing, and wide voltage input range. This ensures reliable and stable M2M connectivity, even under extreme conditions of movement, temperature, and humidity, making it ideal for demanding rail applications where reliable performance is critical.
Related Products
Streamlined 5G Transit Connectivity for Rail Applications
The DTM-570-GS 5G Transit Gateway delivers 5G NR and LTE support, ensuring high-speed cellular uplinks and robust connectivity. Equipped with four Gigabit Ethernet M12/X-coded ports and Wi-Fi 6 AX1800 capabilities, it seamlessly connects IP cameras, RS232 sensors, and other local devices, making it ideal for demanding IoT applications in transit environments.
Perfectly suited for infotainment systems in buses, rolling stock, and trams, the DTM-570-GS's rugged construction compliant with EN45545, EN50155, and EN50121-3-2 rail-related standards. It ensures reliable performance under tough conditions, enhancing safety and efficiency in public transportation networks.
Applications
Tram
Provide fast Wi-Fi, real-time station updates, and advertising, to enhance commuter journey experiences.
Rapid Transit (Metro)
Enable real-time surveillance and monitoring for enhanced passenger safety with high-speed internet.
Tourist Train
Enhance onboard entertainment, advertising, and shopping experiences to optimize the passenger journey.
Rolling Stock
Deliver reliable internet for infotainment, passenger Wi-Fi, and accurate station notifications.
Specs
|
Antenna Connectors
|
1 x TNC for GPS 2 x TNC for Wi-Fi 4 x TNC for Cellular |
|---|---|
|
Bridge Mode
|
Yes |
|
Cellular Module
|
5G NR |
|
Ethernet Interface
|
(Eth4 is with PoE input) 1 x WAN/LAN GE(M12) 3 x LAN GE(M12) |
|
GNSS
|
GPS / GLONASS |
|
IPv4/v6
|
Yes |
|
LAN
|
DHCP Server/Relay |
|
Local Management
|
Web UI/SSH |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
Port Forwarding
|
Yes |
|
Power Input
|
1 x M12 (A-coded) DC 18~75V or through PoE (Eth4) |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 2FF Mini-SIM |
|
SMS Management
|
N/A |
|
Temperature
|
Operating -30 to 70 ˚C |
|
USB
|
Yes |
|
VPN
|
Yes |
|
WAN
|
Cellular/Ethernet |
|
Wi-Fi Standard
|
IEEE 802.11 ax/ac/n/g/b/a/h |
