New

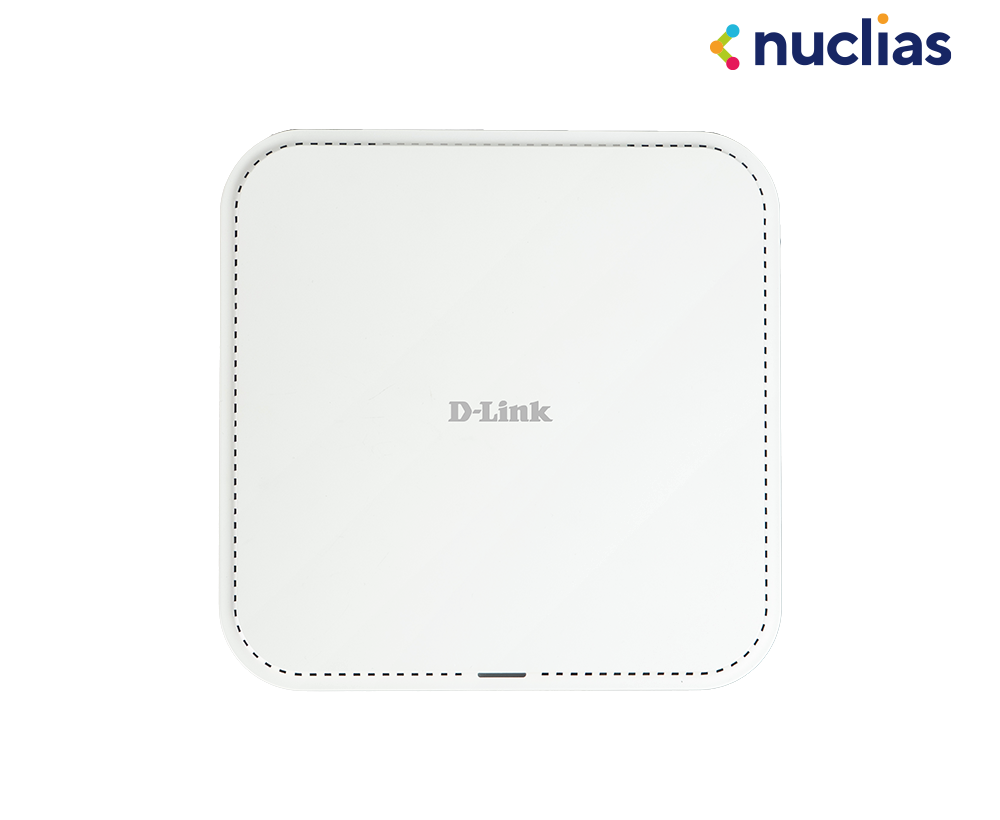

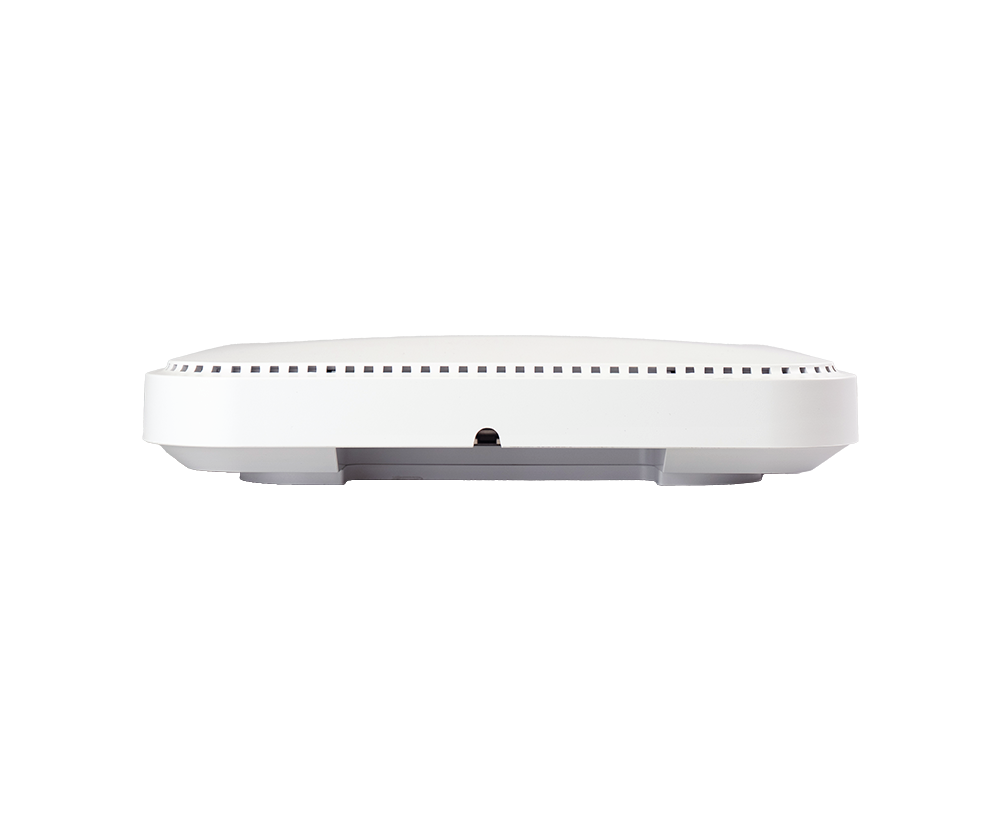

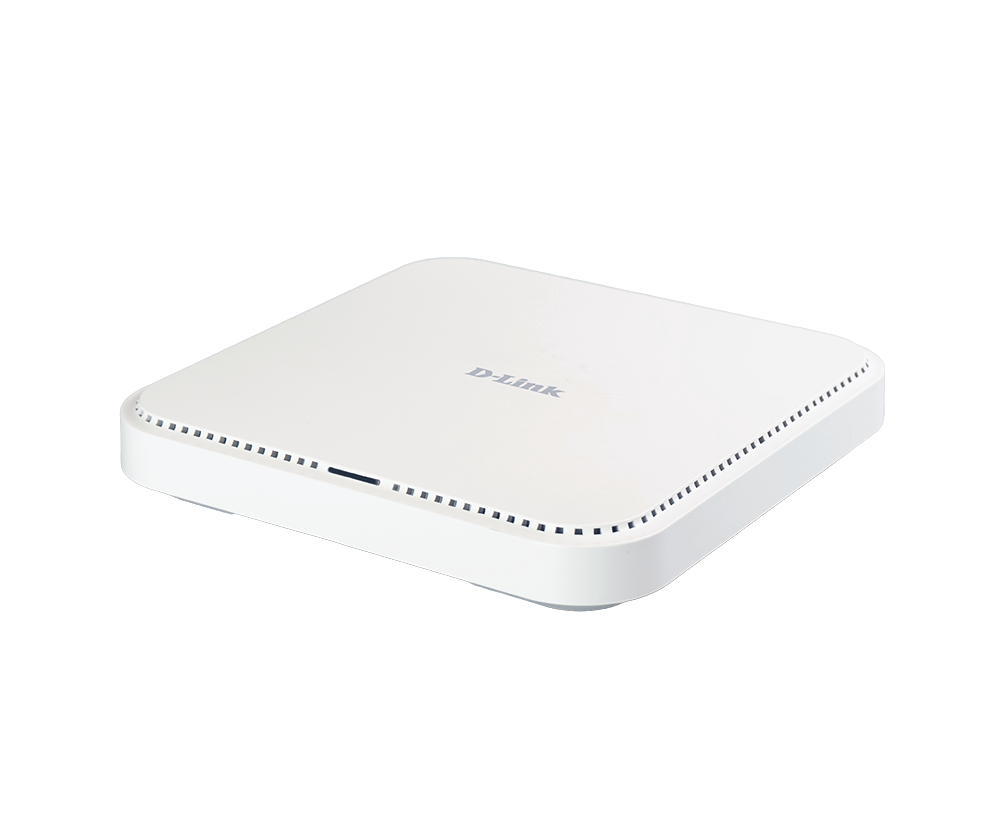

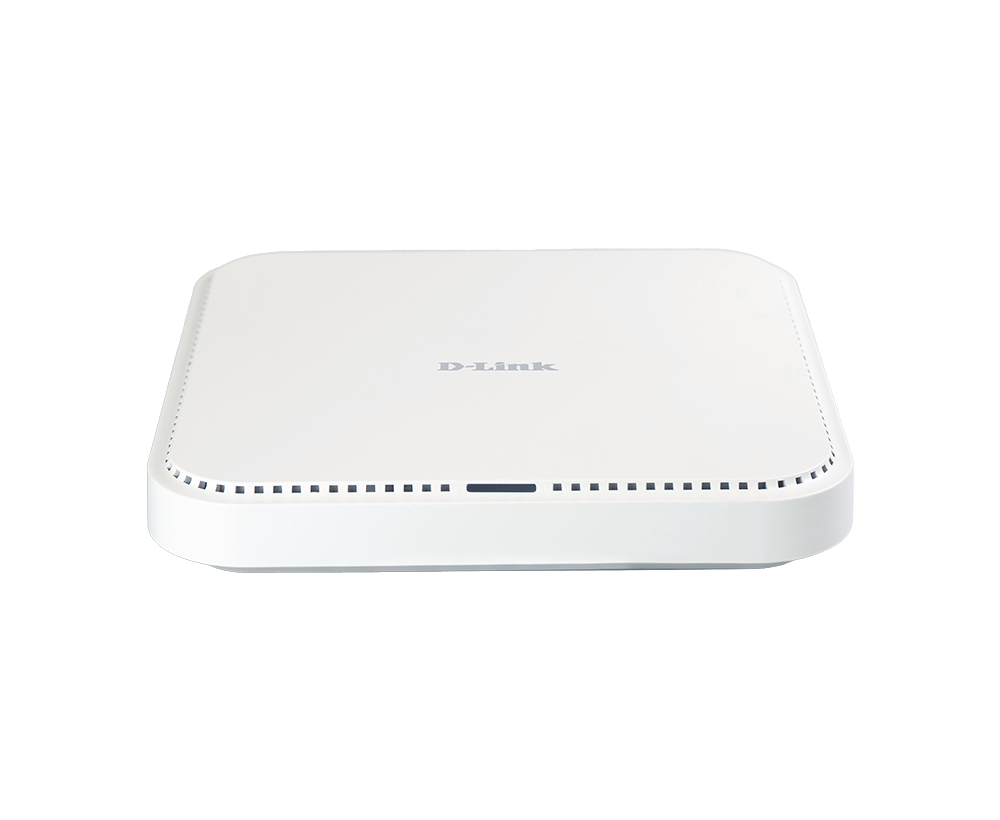

BE3600 Wi-Fi 7 Ceiling Mount Access Point

DAP-E3620

  • Product Status (A1_v1.01(WW)): Live
  • Affordable Wi-Fi 7 upgrade for everyday business use
  • BE3600 dual-band Wi-Fi for modern teams and offices
  • Reliable performance in environments
  • 2.5GbE uplink for faster end-to-end connectivity
  • Simple PoE+ deployment with one-cable setup
  • Enterprise-grade security with WPA3 support
  • Easy traffic separation with VLAN-to-SSID mapping
  • Built-in captive portal for guest access
  • Flexible deployment modes for multiple scenarios
  • Centralized management for easy operations

Download the datasheet.

Where to buy

User Benefits​

Wi-Fi 7 Technology

Dual-band Wi-Fi 7 (802.11be), BE3600 class (2×2 + 2×2), delivering lower latency and higher efficiency for multi-user traffic

Easy Installation

Flexible ceiling or wall mounting for SMB deployments, while PoE+ simplifies cabling and accelerates installation

Customizable Captive Portal

Per-SSID captive portal support enables branded guest access, promotions, and flexible login workflow

VLAN per SSID

Each SSID to a dedicated VLAN for traffic segmentation, enabling simple separation of networks through policy-based control

Advanced Security

Supports WPA3-Personal/WPA3-Enterprise, 802.1X, and ACL-based access control to help reduce unauthorized access

Centralized Management​

Centralized management through Nuclias Unity or Nuclias hardware/software controllers (DNH-1000, DNC-5000)

Faster Wi-Fi 7 for
Better Business Experiences

Dual-band Wi-Fi 7 (802.11be, BE3600 class) built for business environments — more speed, less latency, more devices.

  • 5 GHz up to 2882 Mbps + 2.4 GHz up to 688 Mbps — combined throughput for demanding workloads, video collaboration, and dense device environments.
  • Multi-Link Operation (MLO) uses both bands simultaneously, cutting latency and keeping connections stable when one band is congested.
  • 4096-QAM enables faster data transmission for smoother streaming, gaming, and downloads.
  • Designed for offices, hospitality, retail, and SMB deployments, it provides stable, scalable wireless performance for staff, guests, and connected devices—helping improve productivity, user experience, and operational efficiency.

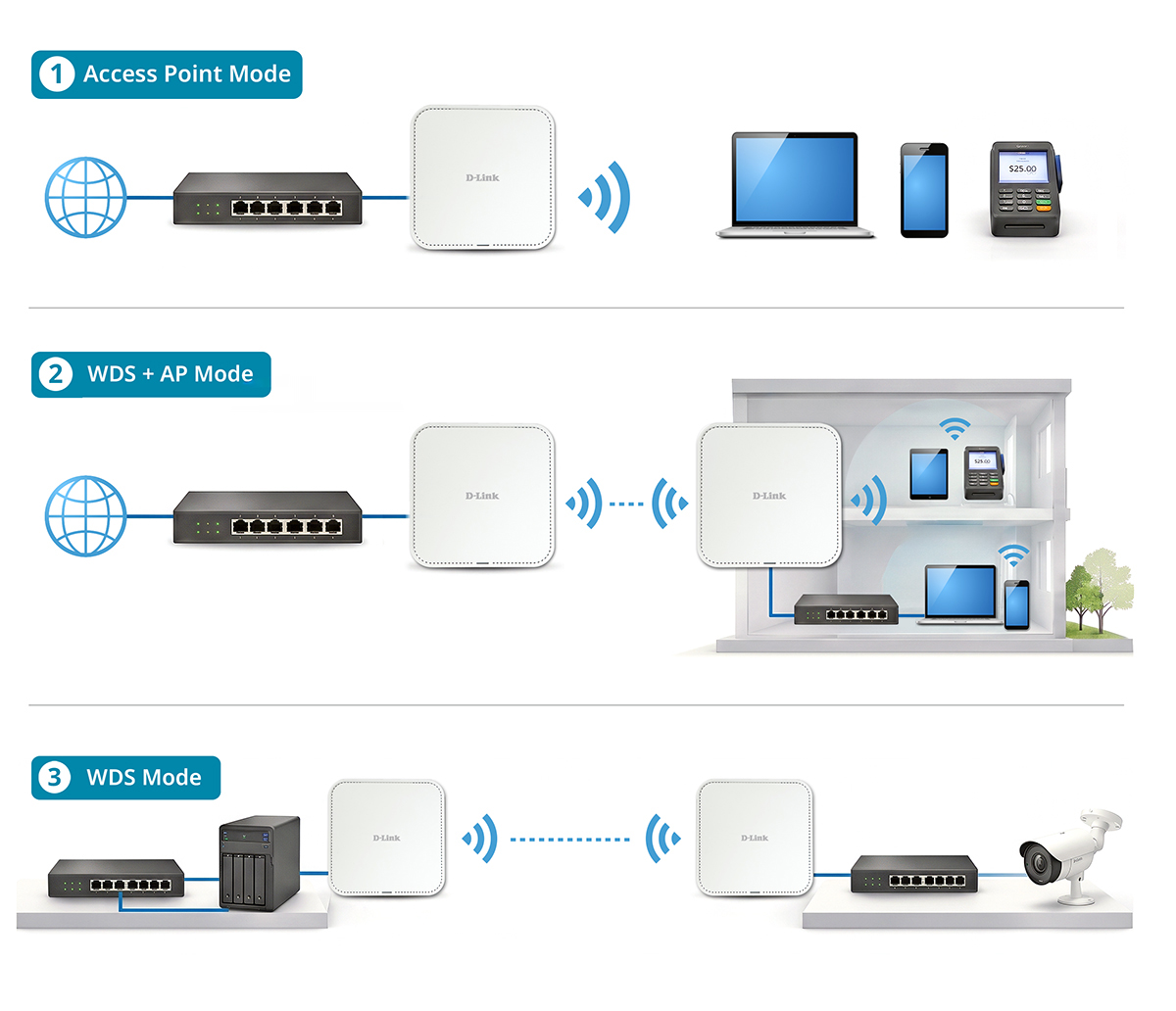

Flexible Deployment for Any Network Need

Deploy in the mode that fits your infrastructure. Switch between access point, wireless bridge, or hybrid coverage without additional hardware.

Access Point Mode
Standard Wi-Fi coverage for wired networks — offices, classrooms, and public hotspots.

WDS with Access Point Mode (Wireless bridging + local coverage)
Extends coverage wirelessly while broadcasting a local SSID — connects floors or buildings without new cabling.

WDS Mode (No AP Broadcasting)
Pure wireless backhaul between two wired networks — no local SSID. Ideal for linking switches, cameras, or servers across sites.

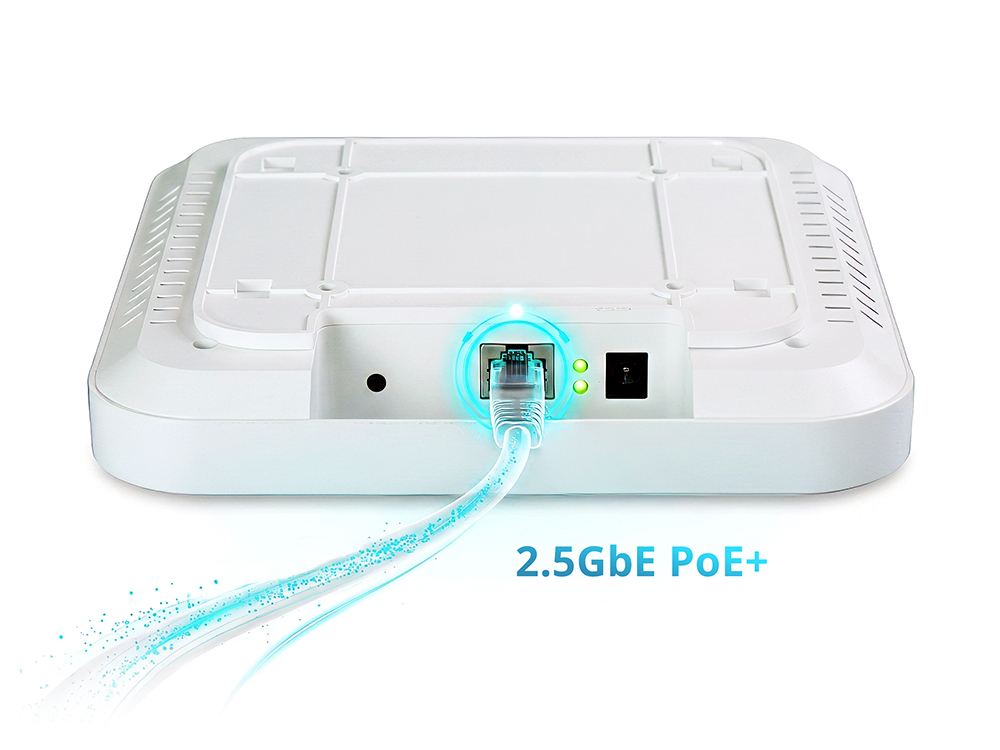

High-Speed 2.5GbE PoE+ Uplink — No Wired Bottleneck

  • Full Wi-Fi 7 throughput — the 2.5GbE uplink matches wireless capacity so your wired network never limits wireless performance.
  • Single cable for power and data — IEEE 802.3at PoE+ eliminates the need for a separate power adapter, simplifying installation anywhere a switch port can reach.

Simplified Centralized Network Management

The DAP-E3620 integrates seamlessly with D-Link Nuclias Unity and Nuclias hardware and software controllers, including the DNH-1000 and DNC-5000, to streamline Wi-Fi management for growing business networks.

  • Provision, update, and troubleshoot remotely — enforce SSID and VLAN policies, push firmware, and health monitoring without visiting each site.
  • Scale from one AP to multi-site deployments through a single intuitive dashboard with consistent performance and security.

Nuclias logo_2

Related Products

BE9500 Wi-Fi 7 Ceiling Mount Access Point
DAP-E9560
Find out more

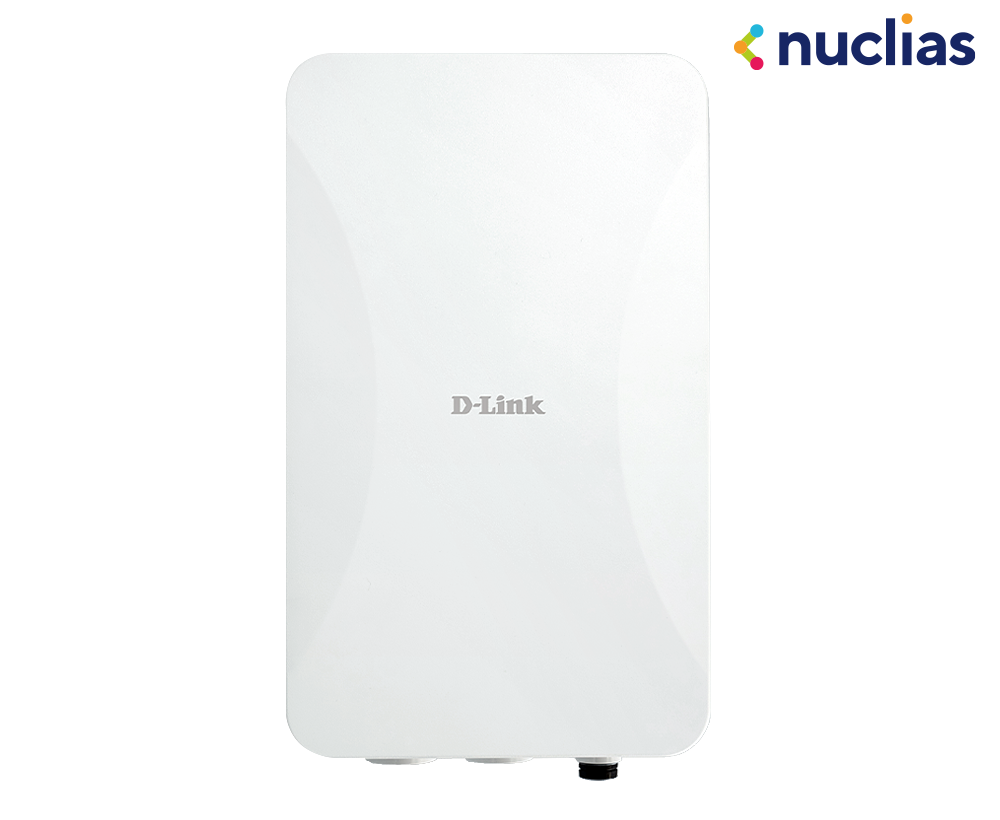

BE3600 Wi-Fi 7 Outdoor Access Point
DAP-E3620OU
Find out more

Applications

SME (Enterprise)

Learn More

Department Store (Business)

Learn More

Transnational University (Education)

Learn More

SME (Enterprise)

User benefits :
  • Wi-Fi 7 BE3600 speed for higher productivity
  • Smoother video calls and real-time collaboration
  • Handles more connected devices with stable performance
  • Lower latency and better interference resilience in busy areas
  • Future-ready network for Wi-Fi 7 clients
  • Stronger security with WPA3 and SSID/VLAN segmentation

Learn more :

  1. Standard Smart Switch : DXS-1210-12SC
  2. Management Platform : Nuclias Unity or DNH-1000
  3. Standard Smart PoE Switch : DMS-1250-18P
  4. Standard Smart Switch : DGS-1250-28X

Department Store (Business)

User benefits :
  • Fast, reliable Wi-Fi for staff and shoppers
  • Stable connectivity in areas
  • Smooth mobile payments and POS transactions
  • Supports digital signage, apps, and location-based services
  • Consistent coverage across floors with reduced interference
  • Secure guest and internal networks with WPA3 + SSID/VLAN segmentation

Learn more :

  1. Aggregation Switch : DXS-3130-32S
  2. Management Platform : Nuclias Unity or DNH-1000
  3. Standard Smart PoE Switch : DMS-1250-28P
  4. Standard Smart Switch : DGS-1250-52X

Transnational University (Education)

User benefits :
  • High-speed campus-wide Wi-Fi for students, faculty, and visitors
  • Reliable performance in areas (lecture halls, libraries, dorms)
  • Low-latency experience for e-learning, cloud apps, and research workloads
  • Fast roaming across buildings for uninterrupted study sessions
  • Stable connectivity for exams and peak-hour traffic with more simultaneous users
  • Secure access for all user groups with WPA3 + SSID/VLAN segmentation

Learn more :

  1. Core Switch : DXS-3610-54S
  2. Management Platform : Nuclias Unity or Nuclias Hyper
  3. Aggregation Switch : DXS-3130-32S
  4. Standard Smart PoE Switch : DMS-1250-28P

Specification

Download the datasheet.

Category
Ceiling
Interfaces

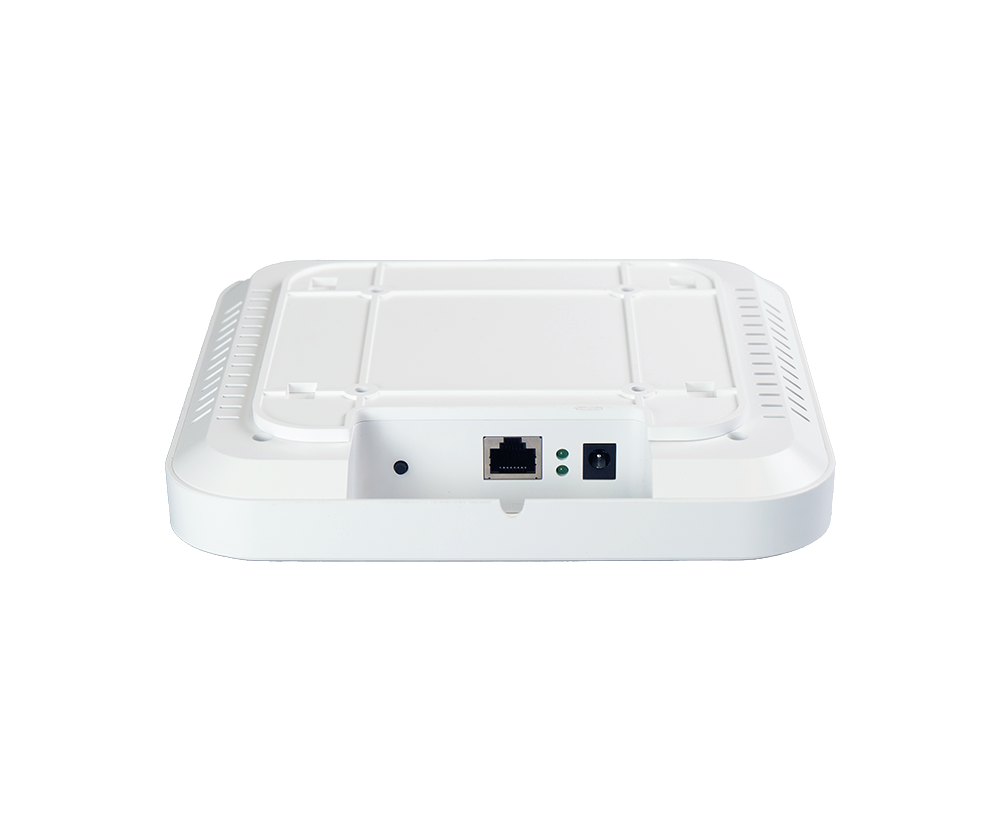

1 x 2.5-Gigabit Ethernet PoE LAN port
Antenna type
2 x 2.4 GHz internal antennas
2 x 5 GHz internal antennas
Antenna gain
2.4 GHz: 4 dBi
5 GHz: 4 dBi
Maximum Output Power
2.4 GHz: 25 dBm
5 GHz: 25 dBm
Data Signal Rate
2.4 GHz: Up to 688 Mbps
5 GHz: Up to 2882 Mbps
IEEE Standard
IEEE 802.11be/ax/ac/n/g/b/a
IEEE 802.3u/ab/bz
IEEE 802.3t PoE
Operating Frequency
2.4 - 2.483 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz
Security Protocol
WPA/WPA2/WPA3™ Personal/Enterprise
WEP 64/128-bit
SSID broadcast disable
Enhanced Open
MAC address access control
Internal RADIUS server
Network Management
Web
Nuclias Unity
Nuclias hardware and software controller
SNMP
Power Supply
IEEE 802.3at PoE
12 V / 2.5 A (Optional power adapter)
Max. Power Consumption
14.17 W
Operating Temperature
0°C - 40°C (32°F - 104°F)
Storage Temperature
-20°C to 65°C (-4°F to 149°F)
Operating Humidity
10% to 90%
Storage Humidity
5% - 95%
Dimensions
186 x 186 x 37 mm

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
