The Wi-Fi 6-ready DAP-X2810 provides businesses of all sizes with incredible speeds, significantly increased capacity and interference-free coverage, combined with centralised management by Nuclias Connect.
The DAP-X2810 works with our Nuclias Connect software-based management platform (with optional hardware controller) that enables you to manage and control your business network from anywhere with an internet connection, for easy access, automation, and network scalability.
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.
A branded Captive Portal with industry-standard authentication for enhanced access management.
The DAP-X2810 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

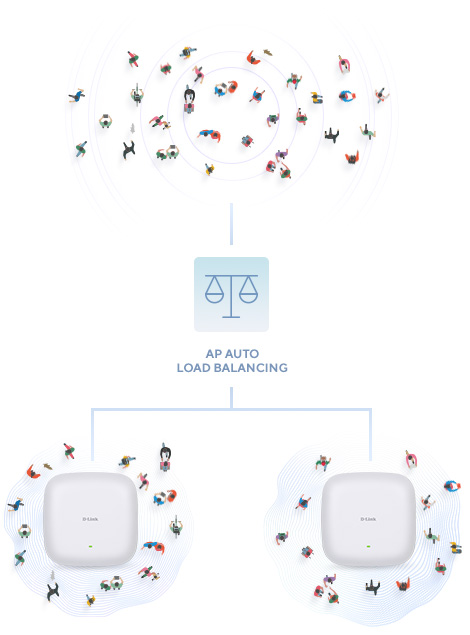

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.
The DAP-X2810 can be configured to fit the needs of your network and optimise performance.
- Access point
- Wireless distribution system
(WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client.
It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2810’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
Nuclias Connect enables you to manage and control your network from anywhere and provides an extensive understanding of your network and its users through traffic analytics and status reports via a web browser or our free app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network and all the way down to the level of a single Access Point.
Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.
Nuclias Connect is designed with unlimited scalability, allowing you to tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points and surveillance cameras being ready to deploy straight out of the box and be automatically discovered by the software.
Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.
Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.
Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.
Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.
Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ax specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
|
Category
|
Ceiling |
|---|---|
|
Antenna type
|
2 x Dual-band internal antennas |
|
Antenna gain
|
2.4 GHz: 3.2 dBi 5 GHz: 4.3 dBi |
|
Maximum Output Power
|
2.4 GHz: 23 dBm 5 GHz: 26 dBm |
|
Data Signal Rate
|
2.4 GHz: Up to 574 Mbps 5 GHz: Up to 1201 Mbps |
|
IEEE Standard
|
IEEE 802.11ax/ac/n/g/b/a IEEE 802.3u/ab/bz IEEE 802.3t PoE |
|
Operating Frequency
|
2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server |
|
Network Management
|
Web Nuclias Unity Nuclias hardware and software controller SNMP |
|
Power Supply
|
IEEE 802.3at PoE 12 V / 2.5 A (Optional power adapter) |
|
Max. Power Consumption
|
16.7 W |
|
Operating Temperature
|
0°C - 40°C (32°F - 104°F) |
|
Storage Temperature
|
-20°C to 65°C (-4°F to 149°F) |
|
Operating Humidity
|
10% to 90% |
|
Storage Humidity
|
5% - 95% |
|
Dimensions
|
170 x 170 x 33.7 mm |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
