Small but mighty. To make the most of cabinet space, it measures: 112.2 x 29.1 x 89.4 mm.
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
The tough housing has been created to keep your network protected and reliably rugged. That's why every D-Link Industrial switch comes with a 5-year D-Link warranty.
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
| Ethernet Interface |
4/8 10/100/1000 Base-T Gigabit ports (PoE options available) 2/4 SFP uplinks |
|---|---|
| Switching Method | Store & Forward, Non blocking / Wire speed switching architecture |
| MAC Address | 16K MAC Address Table |
| Fast Ring Failover |
ERPS for sub 50ms Ring failover, suitable for surveillance applications Supports STP, RSTP, MSTP |
| Multicast Support | IGMP v1, v2. MLD v1,v2 |
| VLAN support | 802.1q VLAN Port Based VLAN Subnet Based VLAN Protocol Based VLAN |
| Enclosure | IP-30 certified enclosure |
| Certifications | Shock: MIL-STD-810G Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 Freefall: MIL-STD-810F Method 516.5 UL, CE, FCC |
| DGS-F3000-04TI |
4 Port Full Gigabit Managed Ethernet Switch, 4 x 10/100/1000 Base-T Ports. |
|---|---|
| DGS-F3000-04PI | 4 Port Full Gigabit Managed Ethernet Switch, 4 x 10/100/1000 Base-T PoE / PoE+ Ports. -40° to 70° C operating Temperature |
| DGS-F3000-2T2SI |
4 Port Full Gigabit Managed Ethernet Switch, 2 x 10/100/1000 Base-T Ports & 2 x 100/1000 Base-X SFP Ports. -40° to 70° C operating Temperature |
| DGS-F3000-04SI |
4 Port Full Gigabit Managed Ethernet Switch, 4 x 100/1000 Base-X SFP Ports. |
| DGS-F3000-2P2SI | 4 Port Full Gigabit Managed Ethernet Switch, 2 x 10/100/1000 Base-T PoE / PoE+ Ports & 2 x 100/1000 Base-X SFP Ports. -40° to 70° C operating Temperature |
| DGS-F3000-08TI | 8 Port Full Gigabit Managed Ethernet Switch, 8 x 10/100/1000 Base-T Ports. -40° to 70° C operating Temperature |
| DGS-F3000-08PI | 8 Port Full Gigabit Managed Ethernet Switch, 8 x 10/100/1000 Base-T PoE / PoE+ Ports. -40° to 70° C operating Temperature |
| DGS-F3000-4T4SI | 8 Port Full Gigabit Managed Ethernet Switch, 4 x 10/100/1000 Base-T Ports & 4 x 100/1000 Base-X SFP Ports. -40° to 70° C operating Temperature |
| DGS-F3000-4P4SI | 8 Port Full Gigabit Managed Ethernet Switch, 4 x 10/100/1000 Base-T PoE / PoE+ Ports & 4 x 100/1000 Base-X SFP Ports. -40° to 70° C operating Temperature |
| DGS-F3000-8T4SI | 12 Port Full Gigabit Managed Ethernet Switch, 8 x 10/100/1000 Base-T Ports & 4 x 100/1000 Base-X SFP ports. -40° to 70° C operating Temperature |
| DGS-F3000-4T4P4SI | 12 Port Full Gigabit Managed Ethernet Switch, 4 x 10/100/1000 Base-T Ports, 4 x 10/100/1000 Base-T PoE / PoE+ Ports & 4 x 100/1000 Base-X SFP ports. -40° to 70° C operating Temperature |

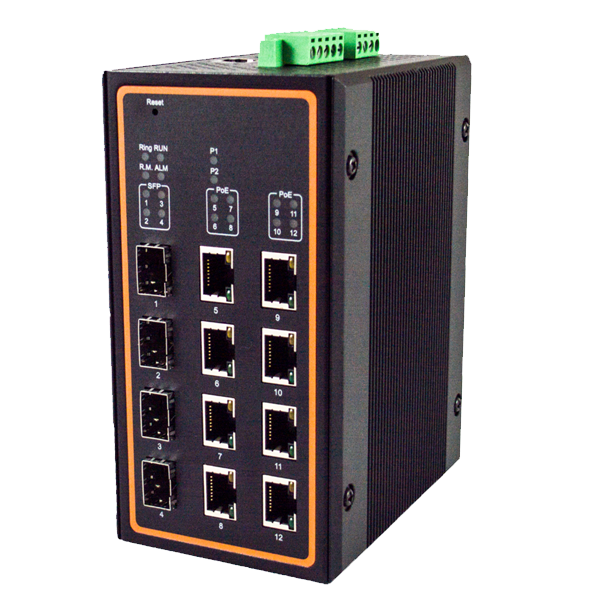

| DGS-F3000-8P4SI | 12 Port Full Gigabit Managed Ethernet Switch, 8 x 10/100/1000 Base-T PoE / PoE+ Ports & 4 x 100/1000 Base-X SFP ports. -40° to 70° C operating Temperature |
