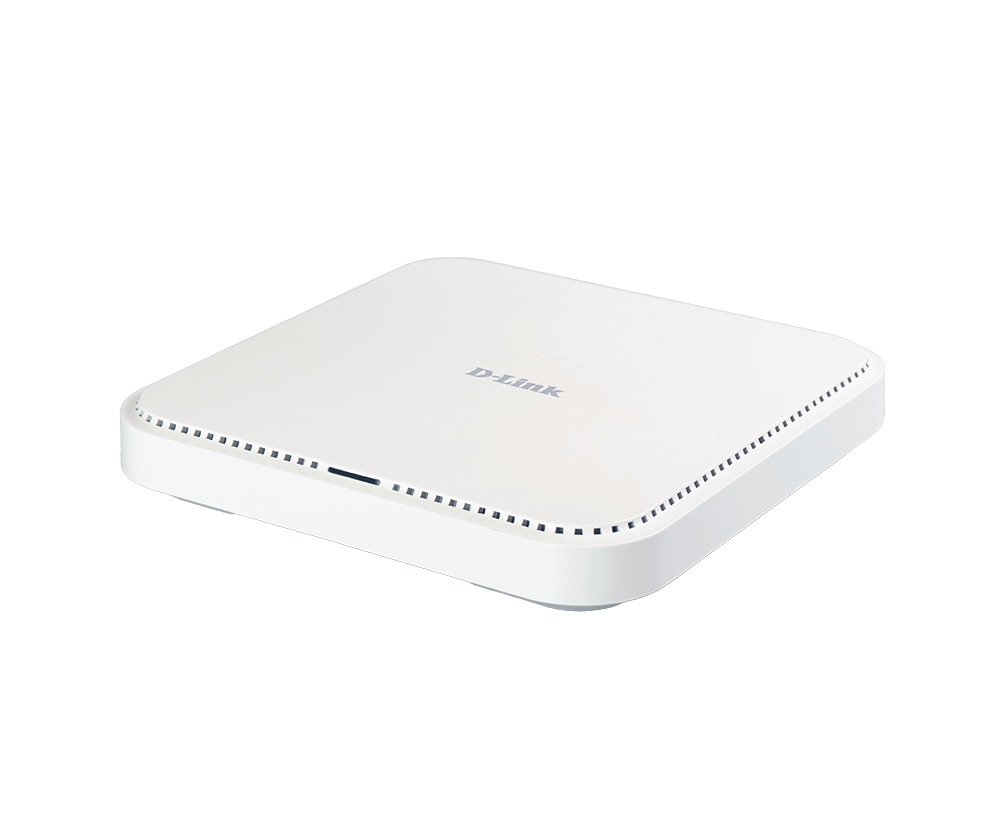

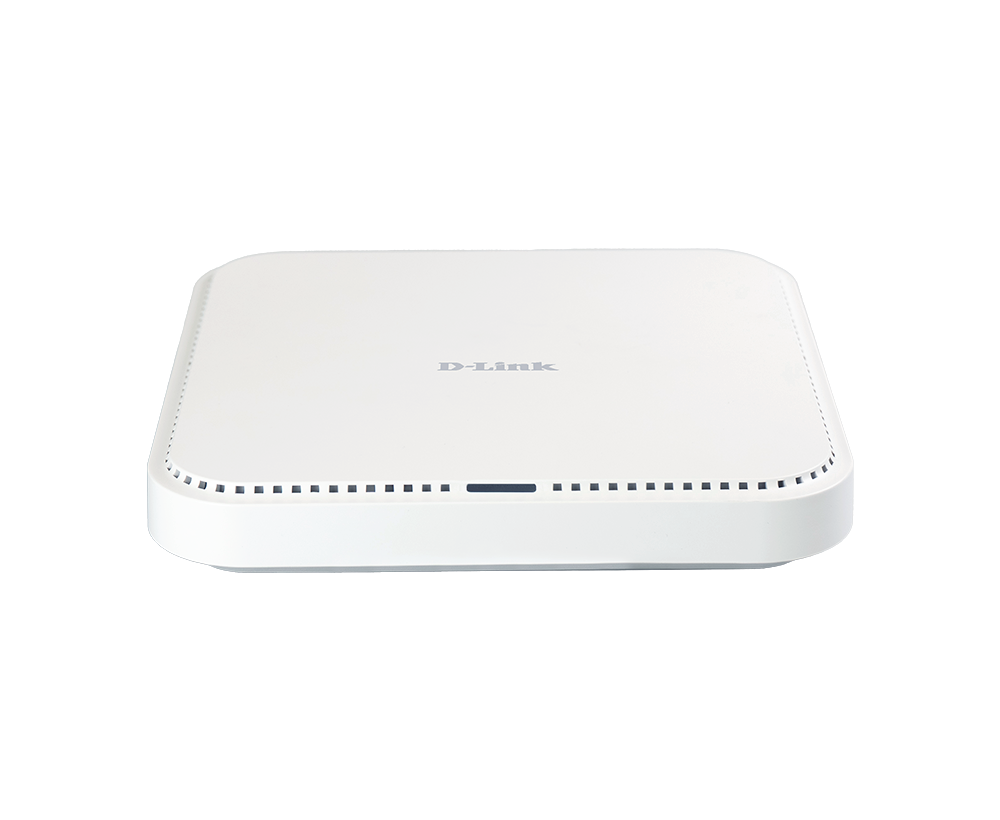

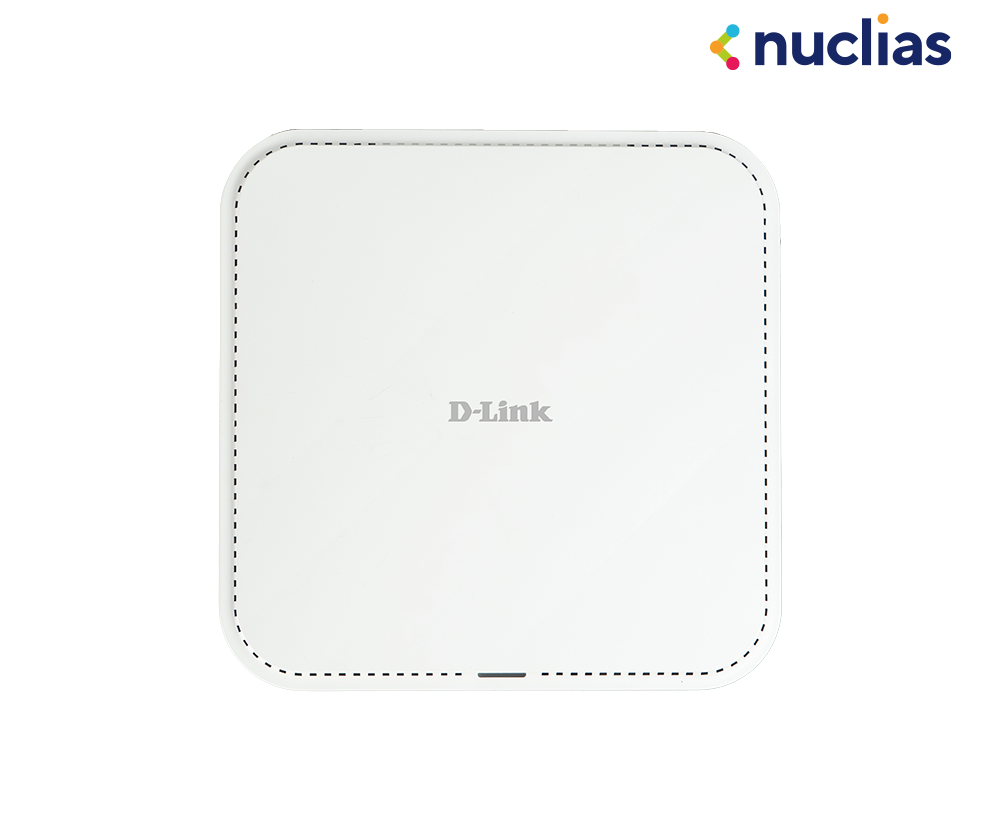

BE3600 Wi-Fi 7 Ceiling Mount Access Point
DAP-E3620
- Product Status (A1_v1.01(WW)): Live
- Affordable Wi-Fi 7 upgrade for everyday business use
- BE3600 dual-band Wi-Fi for modern teams and offices
- Reliable performance in environments
- 2.5GbE uplink for faster end-to-end connectivity
- Simple PoE+ deployment with one-cable setup
- Enterprise-grade security with WPA3 support
- Easy traffic separation with VLAN-to-SSID mapping
- Built-in captive portal for guest access
- Flexible deployment modes for multiple scenarios
- Centralized management for easy operations
Where to buy
User Benefits
Wi-Fi 7 Technology
Dual-band Wi-Fi 7 (802.11be), BE3600 class (2×2 + 2×2), delivering lower latency and higher efficiency for multi-user traffic
Easy Installation
Flexible ceiling or wall mounting for SMB deployments, while PoE+ simplifies cabling and accelerates installation
Customizable Captive Portal
Per-SSID captive portal support enables branded guest access, promotions, and flexible login workflow
VLAN per SSID
Each SSID to a dedicated VLAN for traffic segmentation, enabling simple separation of networks through policy-based control
Advanced Security
Supports WPA3-Personal/WPA3-Enterprise, 802.1X, and ACL-based access control to help reduce unauthorized access
Centralized Management
Centralized management through Nuclias Unity or Nuclias hardware/software controllers (DNH-1000, DNC-5000)
Faster Wi-Fi 7 for
Better Business Experiences
Better Business Experiences
Dual-band Wi-Fi 7 (802.11be, BE3600 class) built for business environments — more speed, less latency, more devices.
- 5 GHz up to 2882 Mbps + 2.4 GHz up to 688 Mbps — combined throughput for demanding workloads, video collaboration, and dense device environments.
- Multi-Link Operation (MLO) uses both bands simultaneously, cutting latency and keeping connections stable when one band is congested.
- 4096-QAM enables faster data transmission for smoother streaming, gaming, and downloads.
- Designed for offices, hospitality, retail, and SMB deployments, it provides stable, scalable wireless performance for staff, guests, and connected devices—helping improve productivity, user experience, and operational efficiency.

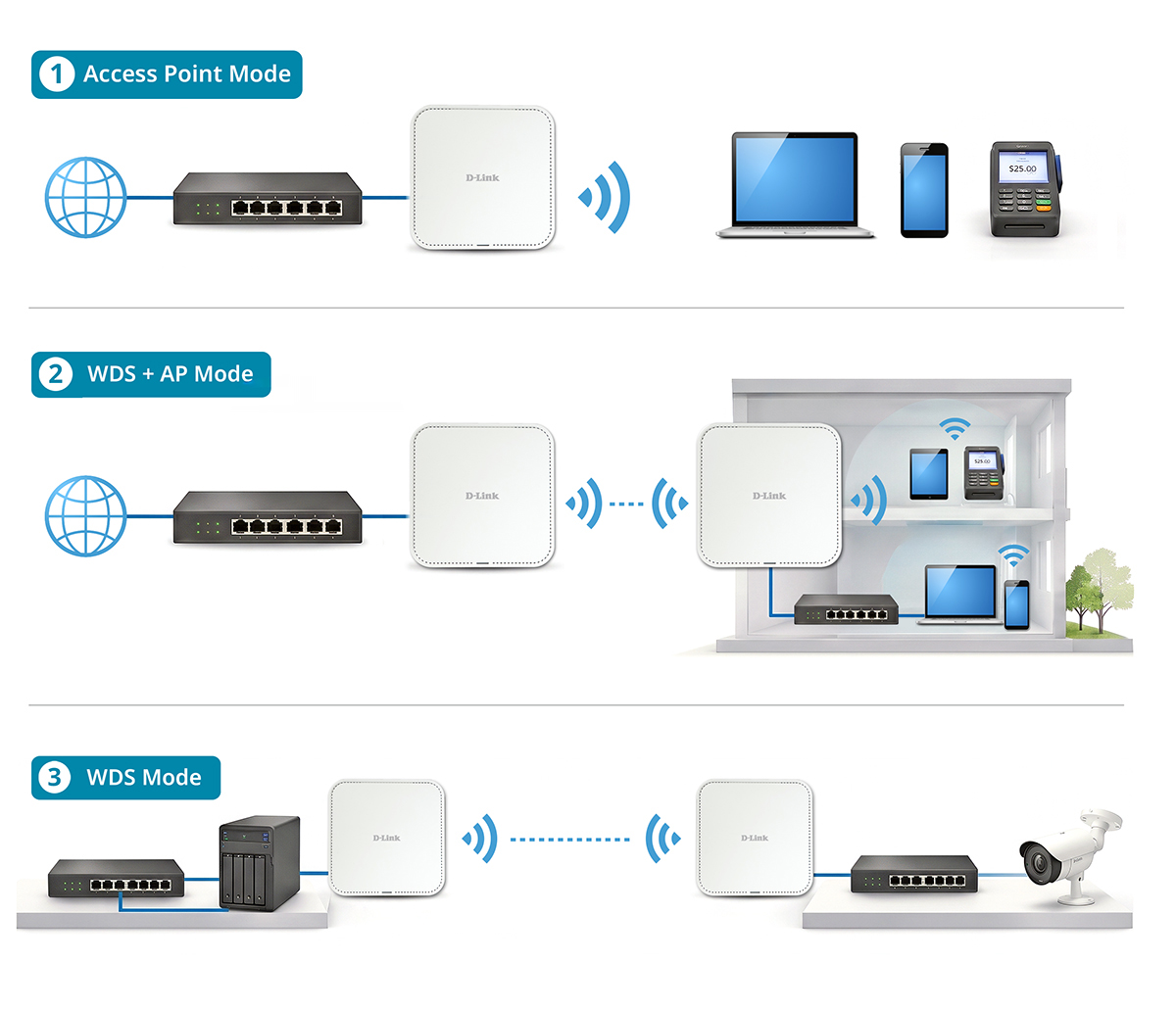

Flexible Deployment for Any Network Need
Deploy in the mode that fits your infrastructure. Switch between access point, wireless bridge, or hybrid coverage without additional hardware.
Access Point Mode
Standard Wi-Fi coverage for wired networks — offices, classrooms, and public hotspots.
WDS with Access Point Mode (Wireless bridging + local coverage)
Extends coverage wirelessly while broadcasting a local SSID — connects floors or buildings without new cabling.
WDS Mode (No AP Broadcasting)
Pure wireless backhaul between two wired networks — no local SSID. Ideal for linking switches, cameras, or servers across sites.

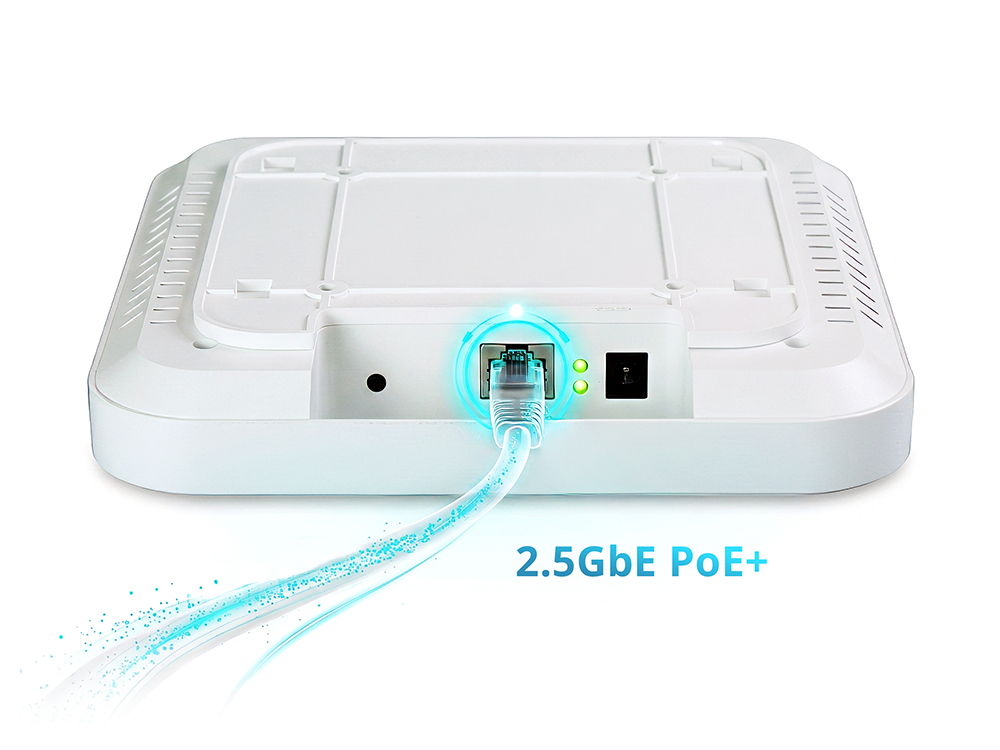

High-Speed 2.5GbE PoE+ Uplink — No Wired Bottleneck
- Full Wi-Fi 7 throughput — the 2.5GbE uplink matches wireless capacity so your wired network never limits wireless performance.
- Single cable for power and data — IEEE 802.3at PoE+ eliminates the need for a separate power adapter, simplifying installation anywhere a switch port can reach.

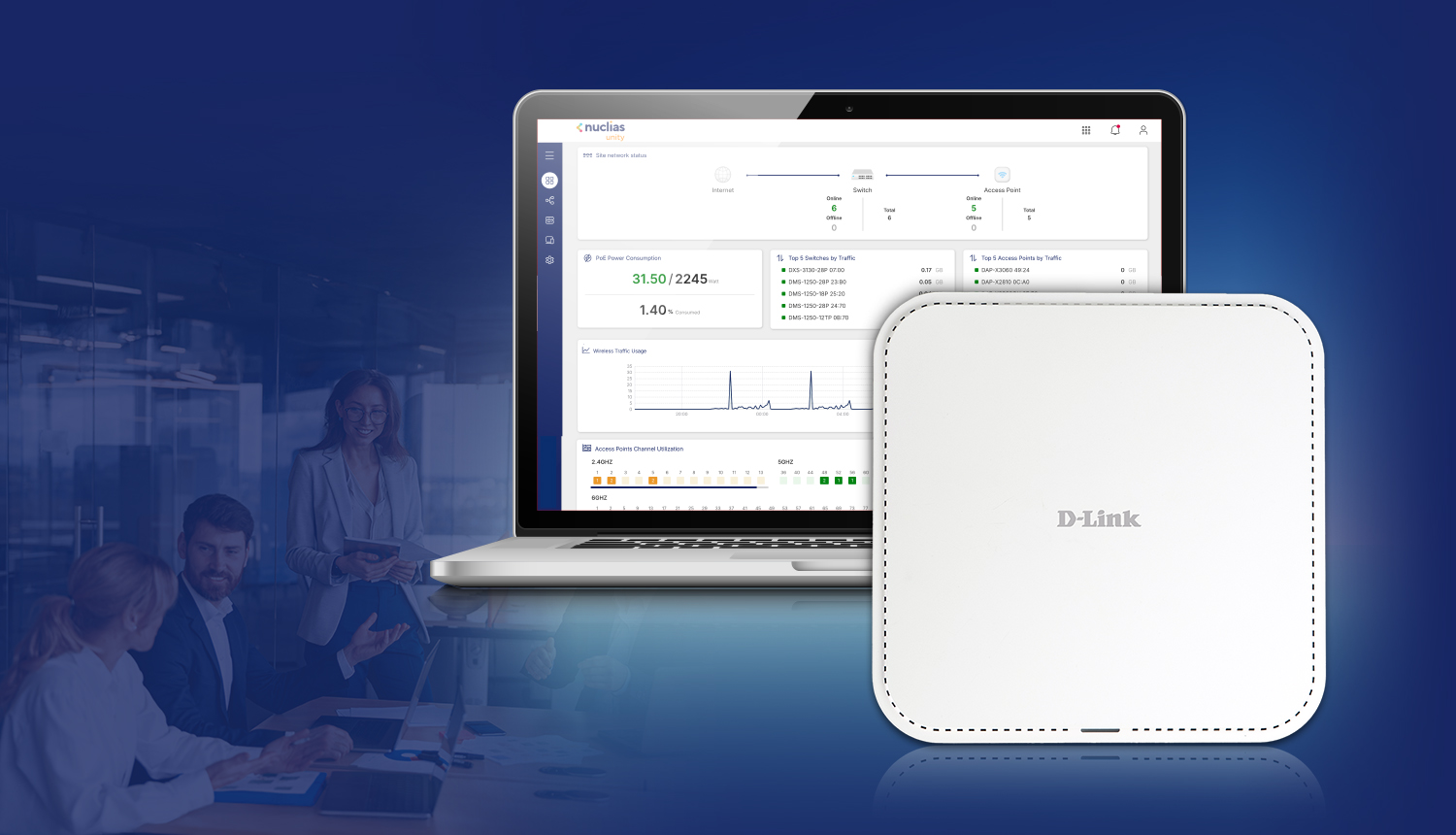

Simplified Centralized Network Management
The DAP-E3620 integrates seamlessly with D-Link Nuclias Unity and Nuclias hardware and software controllers, including the DNH-1000 and DNC-5000, to streamline Wi-Fi management for growing business networks.
- Provision, update, and troubleshoot remotely — enforce SSID and VLAN policies, push firmware, and health monitoring without visiting each site.
- Scale from one AP to multi-site deployments through a single intuitive dashboard with consistent performance and security.
Related Products
SME (Enterprise)
- Smoother video calls and real-time collaboration
- Handles more connected devices with stable performance
- Lower latency and better interference resilience in busy areas
- Future-ready network for Wi-Fi 7 clients
- Stronger security with WPA3 and SSID/VLAN segmentation
Learn more :
- Standard Smart Switch : DXS-1210-12SC
- Management Platform : Nuclias Unity or DNH-1000
- Standard Smart PoE Switch : DMS-1250-18P
- Standard Smart Switch : DGS-1250-28X
Department Store (Business)
- Stable connectivity in areas
- Smooth mobile payments and POS transactions
- Supports digital signage, apps, and location-based services
- Consistent coverage across floors with reduced interference
- Secure guest and internal networks with WPA3 + SSID/VLAN segmentation
Learn more :
- Aggregation Switch : DXS-3130-32S
- Management Platform : Nuclias Unity or DNH-1000
- Standard Smart PoE Switch : DMS-1250-28P
- Standard Smart Switch : DGS-1250-52X
Transnational University (Education)
- Reliable performance in areas (lecture halls, libraries, dorms)
- Low-latency experience for e-learning, cloud apps, and research workloads
- Fast roaming across buildings for uninterrupted study sessions
- Stable connectivity for exams and peak-hour traffic with more simultaneous users
- Secure access for all user groups with WPA3 + SSID/VLAN segmentation
Learn more :
- Core Switch : DXS-3610-54S
- Management Platform : Nuclias Unity or Nuclias Hyper
- Aggregation Switch : DXS-3130-32S
- Standard Smart PoE Switch : DMS-1250-28P
產品規格
|
Category
|
Ceiling |
|---|---|
|
Interfaces
|

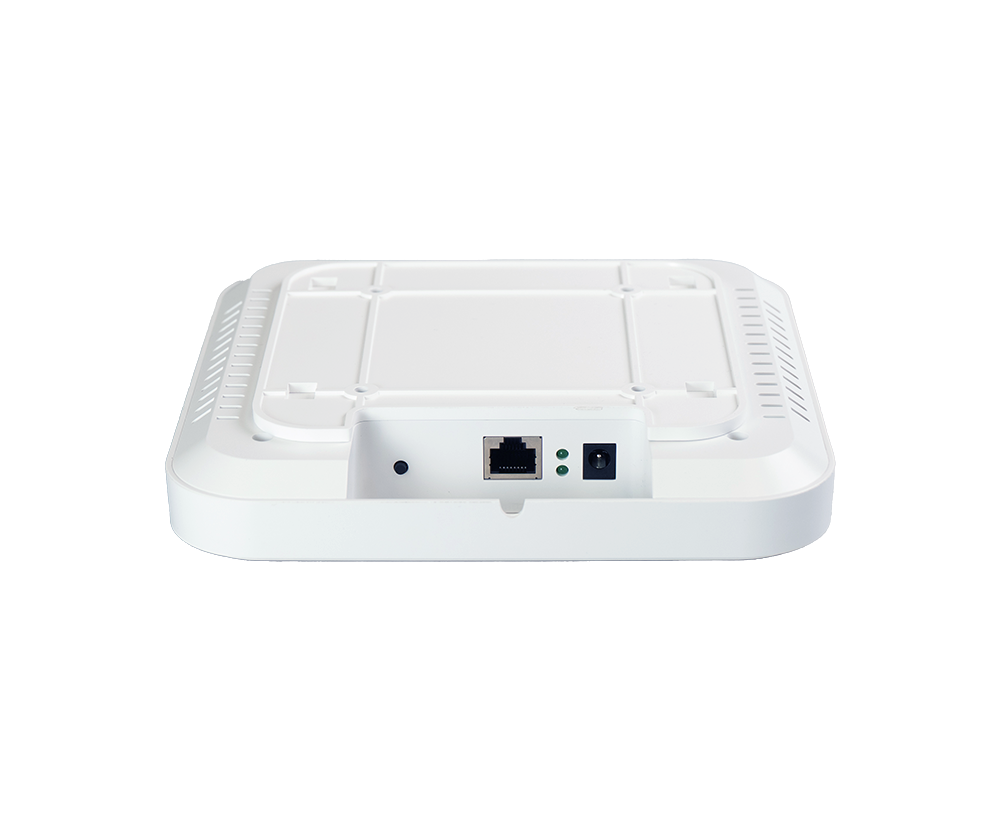

1 x 2.5-Gigabit Ethernet PoE LAN port |
|
Antenna type
|
2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas |
|
Antenna gain
|
2.4 GHz: 4 dBi 5 GHz: 4 dBi |
|
Maximum Output Power
|
2.4 GHz: 25 dBm 5 GHz: 25 dBm |
|
Data Signal Rate
|
2.4 GHz: Up to 688 Mbps 5 GHz: Up to 2882 Mbps |
|
IEEE Standard
|
IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/bz IEEE 802.3t PoE |
|
Operating Frequency
|
2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server |
|
Network Management
|
Web Nuclias Unity Nuclias hardware and software controller SNMP |
|
Power Supply
|
IEEE 802.3at PoE 12 V / 2.5 A (Optional power adapter) |
|
Max. Power Consumption
|
14.17 W |
|
Operating Temperature
|
0°C - 40°C (32°F - 104°F) |
|
Storage Temperature
|
-20°C to 65°C (-4°F to 149°F) |
|
Operating Humidity
|
10% to 90% |
|
Storage Humidity
|
5% - 95% |
|
Dimensions
|
186 x 186 x 37 mm |
|
實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。 |
|
