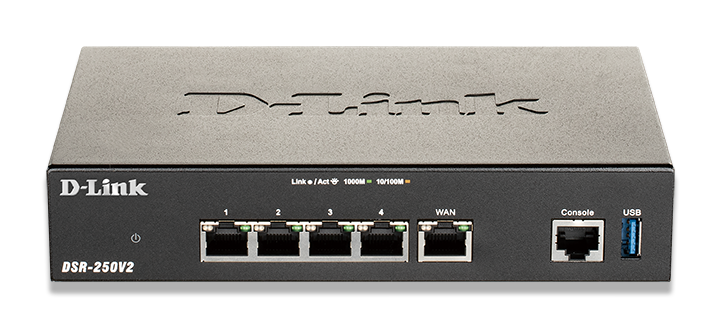

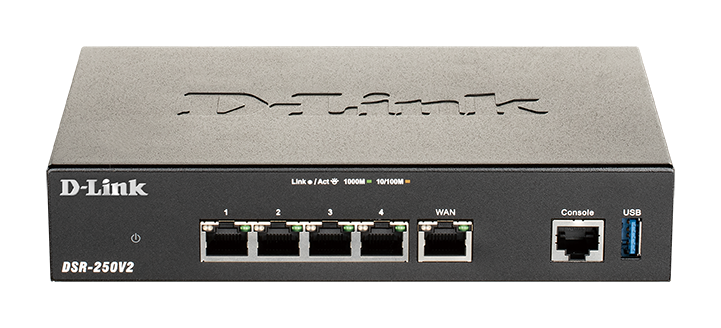

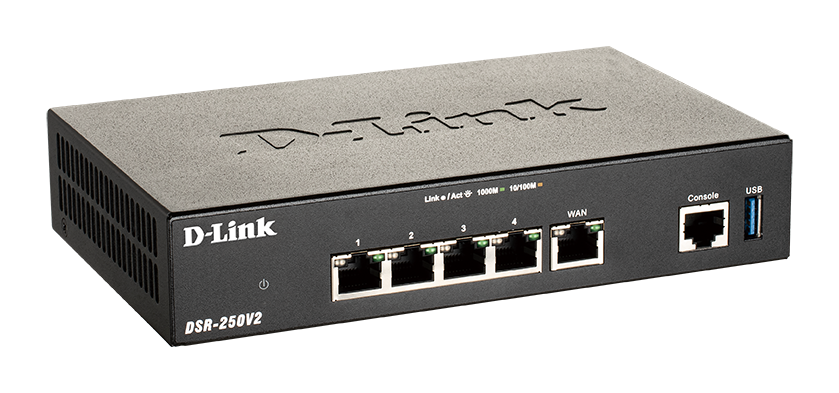

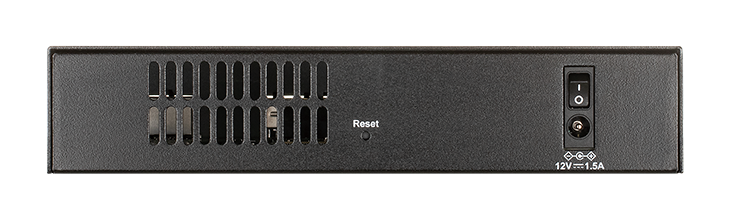

Unified Services VPN Router
DSR-250V2
- Product Status (Revision B): Live
- Complete VPN features
- VPN, up to 200 Mbps throughput
- Firewall, up to 950 Mbps throughput
- Dynamic web content filtering and application control
- Web authentication support
- WAN failover and load-balancing
Where to buy
More secure, private office access - anywhere you work
More secure, high-performance networking designed to meet the evolving needs of small and medium businesses. The full-featured VPN helps create a private connection between remote teams and the office.
More secure, high-performance networking designed to meet the evolving needs of small and medium businesses. The full-featured VPN helps create a private connection between remote teams and the office.
Advanced VPN
Integrated VPN client and server with support for IPSec, PPTP, L2TP, GRE, and OpenVPN tunneling

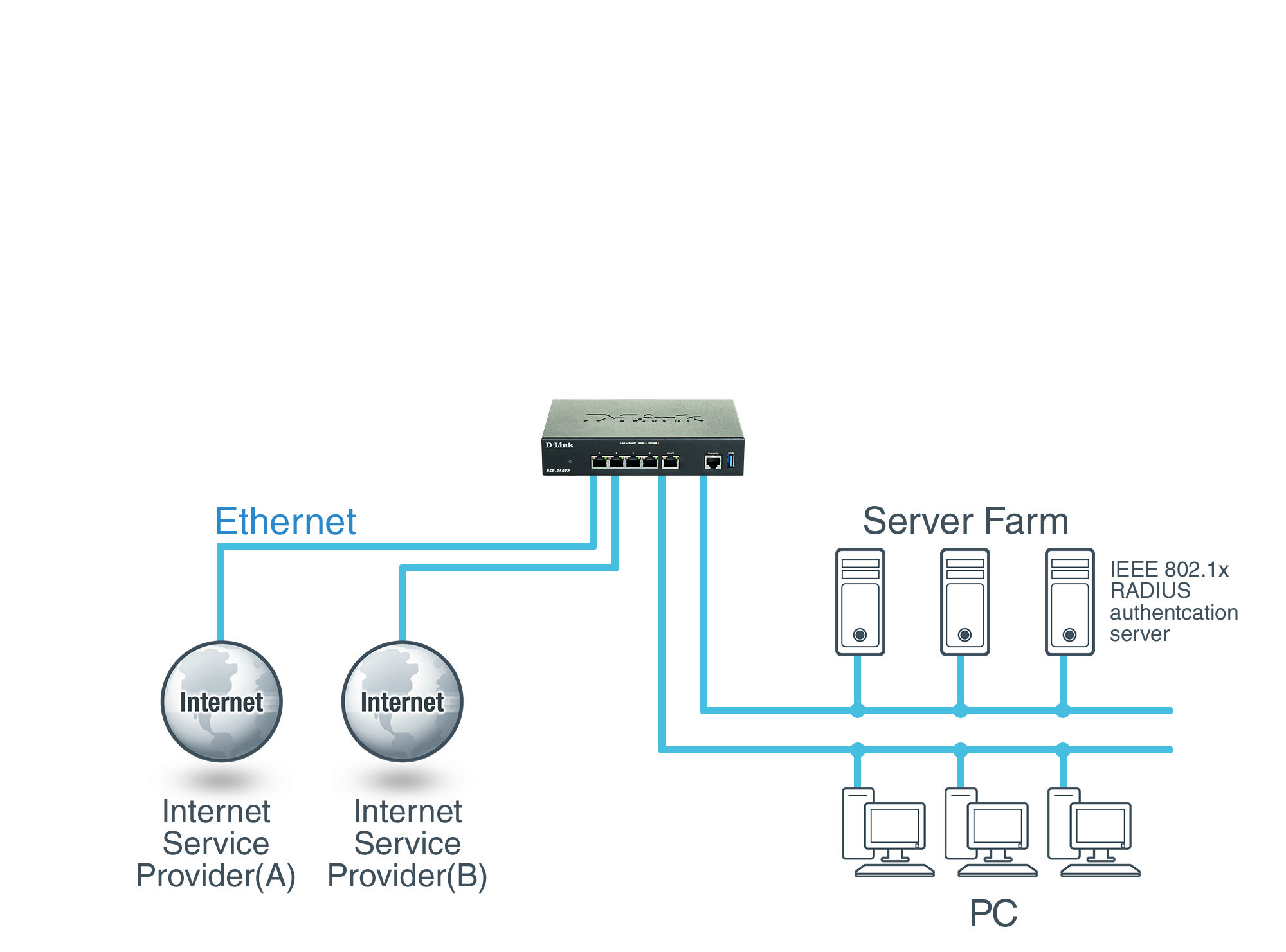

Failover/Load Balancing Mode
Dual Gigabit WAN support provide high availability and traffic load balancing.

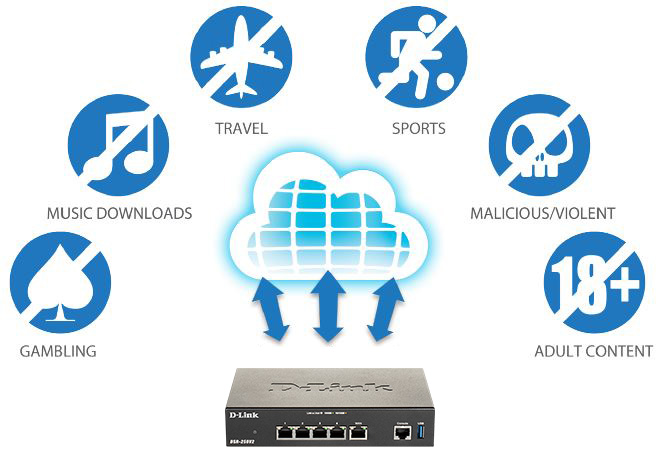

Web Content Filtering
Web content filtering feature to help administrators monitor, manage and control employees’ Internet usage.
Captive Portal
Captive Portal allows employees and guest users to authenticate and authorise easily
Remote secure connections
Highly configurable and flexible with OpenVPN
OpenVPN supports multiple authentication and encryption protocols, including SSL and TLS, to help safeguard user communications and enhance privacy. It offers a high degree of configurability, making it well-suited for establishing more secure point-to-point or site-to-site connections.
High-performance firewall and VPN
Multi-WAN support
Access through browser authentication
Web Content Filtering

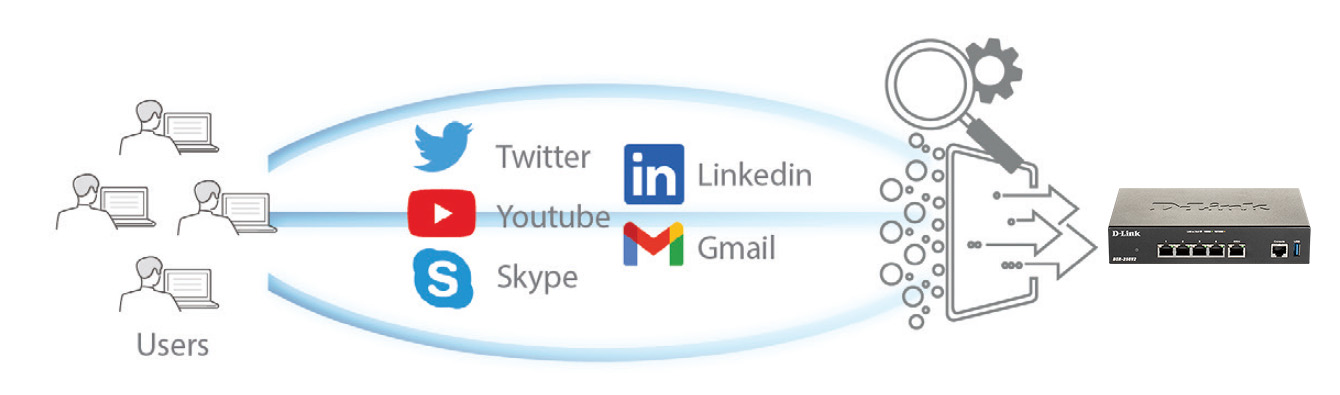

Control access and bandwidth priority based on application
Specification
|
Type
|
VPN security router |
|---|---|
|
Wired interface
|
1 x Gigabit Ethernet WAN 1 x Gigabit Ethernet WAN/LAN 3 x Gigabit Ethernet LAN |
|
USB ports
|
1 x USB 3.0 |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Metal |
|
Firewall throughput
|
950 Mbps |
|
VPN throughput (3DES)
|
200 Mbps |
|
Firewall policies
|
300 |
|
Internet connection type
|
Multiple PPPoE PPPoE/L2TP/PPTP Static/Dynamic IP |
|
Firewall system
|
Dynamic DNS Dynamic route Inter-VLAN route Intrusion prevention system (IPS) NAT, PAT Static route Web content filtering |
|
Networking
|
3G redundancy DHCP relay DHCP server/client IEEE802.1q VLAN IP multicast IPv6 Outbound load balancing Route failover VLAN (port-based) |
|
VPN tunnels
|
75 |
|
IPSec tunnels
|
50 |
|
PPTP/L2TP tunnels
|
30 |
|
Encryption methods
|
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL RC4-128, 3DES, AES |
|
VPN features
|
Dead Peer Detection Hub and Spoke IP Authentication Header (AH) IP Encapsulating Security Payload (ESP) IPSec NAT Traversal IPSec/PPTP/L2TP Server VPN Tunnel Keep Alive |
|
Bandwidth management
|
Port-based QoS |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
