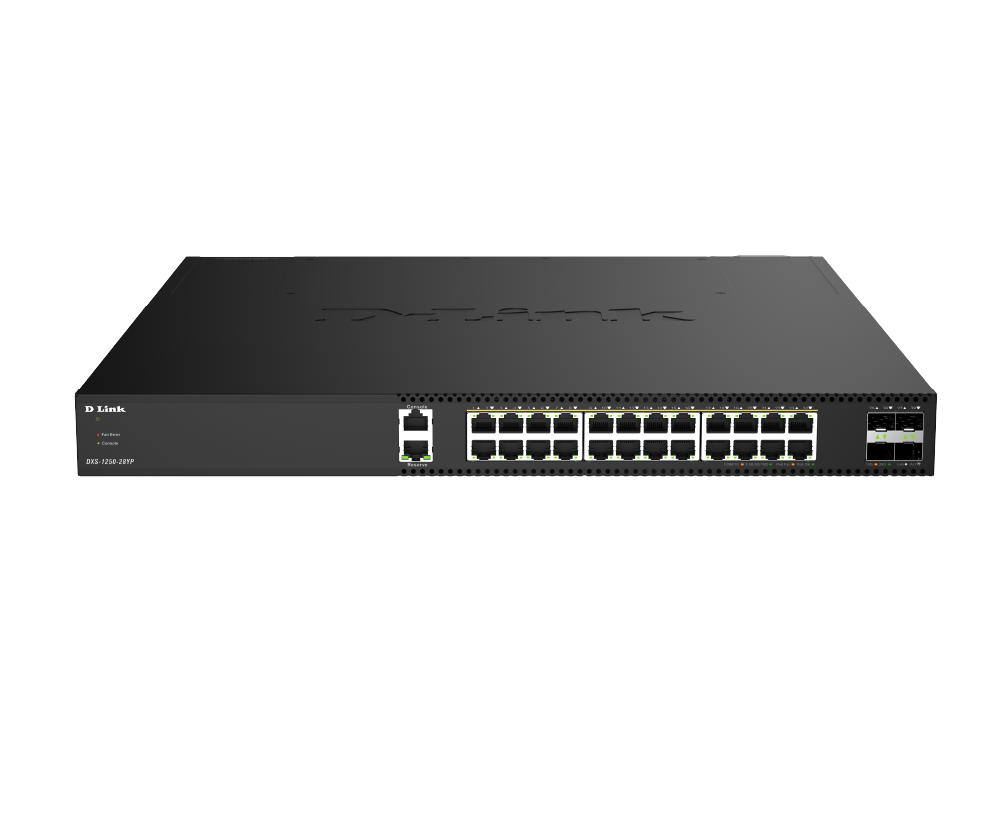

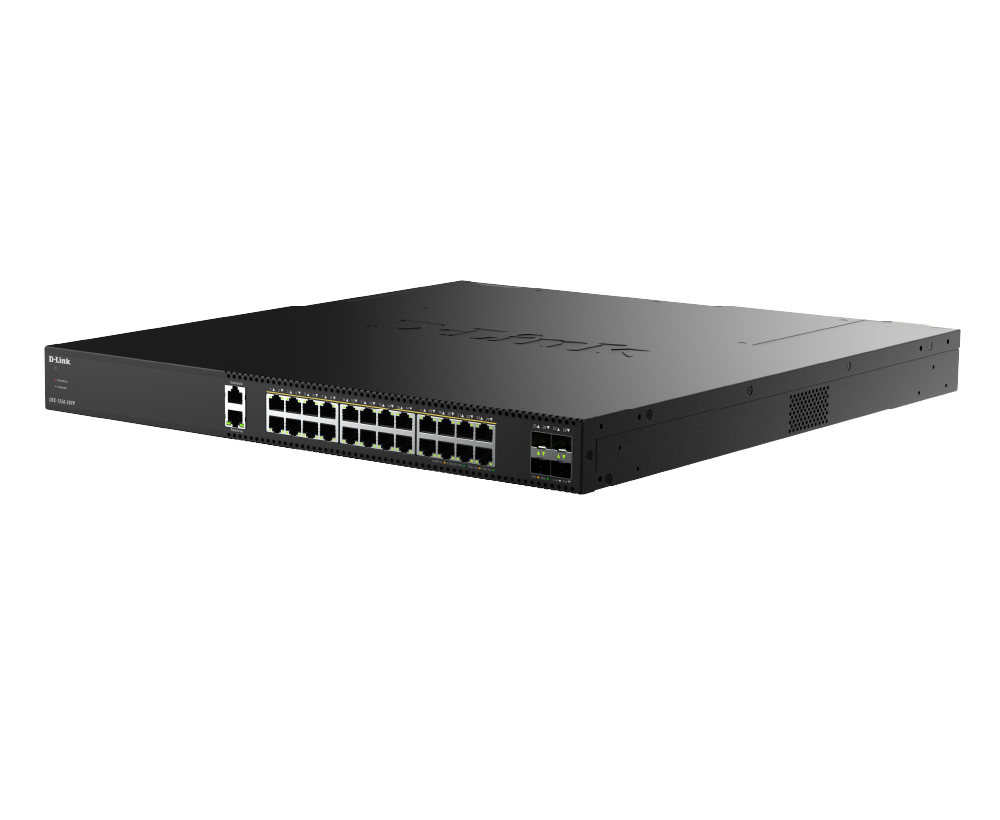

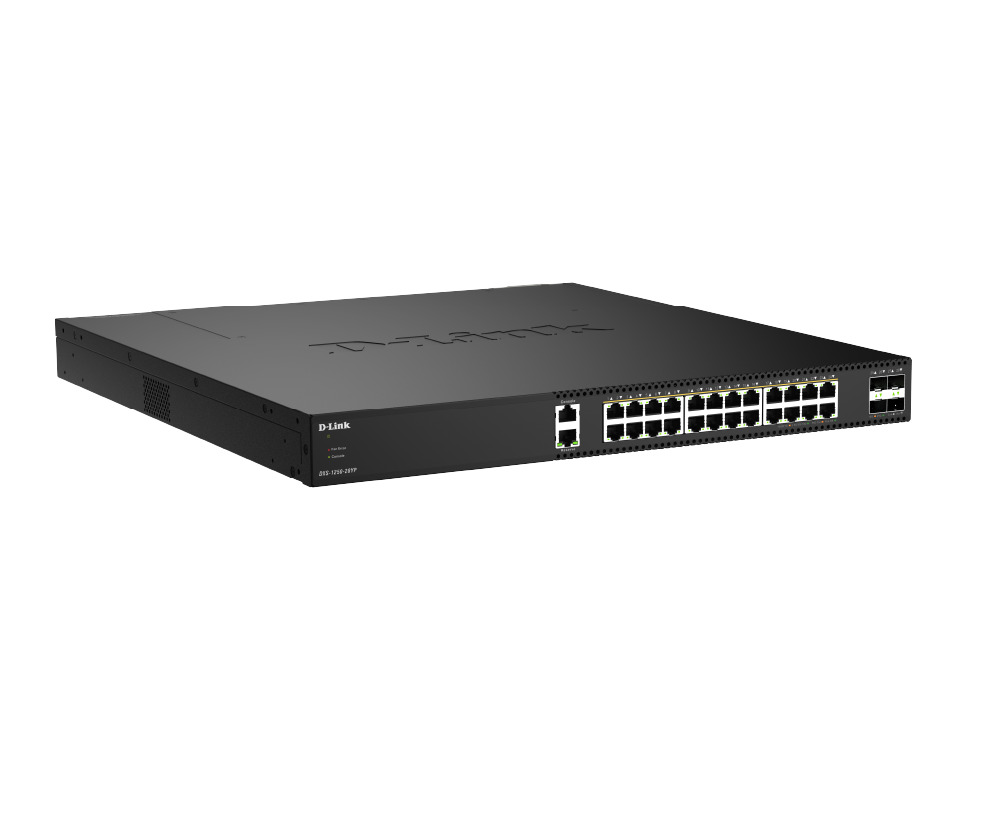

10G Smart Managed Switches
DXS-1250 Series
- Product Status (A1_v100 WW): Live
- Support 10G for downlink ports
- Support 25G SFP+ for uplink ports
- Support IEEE 802.3af/at/bt to power PoE devices
- 6kV surge protection on all 10G access ports
- Support 802.3ad LACP for Link Aggregation
- Support Static Routing
- Support Loopback Detection
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Where to buy
10 Gbps Ports
10 Gbps ports accelerate data transmission speeds, meeting higher bandwidth demands and boosting network performance
25G Uplink
25G uplink ports deliver ultra-fast server connectivity, ensuring seamless scalability and optimized network performance
Management UI
Equipped with an RJ-45 console, full CLI, multilingual web GUI, and Nuclias Network Controller for efficient device management
High-Power PoE
Delivers IEEE 802.3bt per port with 470W total power, supporting demanding devices like digital signage and Wi-Fi 7
Digital Signatures
D-Link implements digital signatures to protect firmware and software, ensuring integrity and trusted source verification
Advanced Networking Features
Q-in-Q VLAN extension, time-based ACLs for dynamic control, and DHCP Relay with Option 82 for flexible management
DXS-1250 Series Comparison
| Compare Products | DXS-1250-28YP |
|---|---|
 | |
| Ports | 24 x 10GE |
| PoE | PoE++, with 470W Power Budget |
| Learn More |
Related Products
DXS-1250 Series Specification
Compare Products | DXS-1250-28YP |
|---|---|
| |
| Interface | 24 x 10GE PoE |
| Performance | |
| Switch Capacity | 680 Gbps |
Max. Packet Forwarding Rate | 505.92 Mpps |
| PoE | |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Ports | Port 1 ~ 24 |
| PoE Budget | 470W |
| Technical Specification | |
| Surge Protection | 6kV |
| Maximum Power Consumption | 630.92W (PoE on) |
| Fan | 2 Internal Fans |
| Console Port | Yes |
| Power Supply Type | Internal |
