Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.
Automate, monitor, manage and scale your network without the complexity or cost. FREE 1yr Nuclias Cloud licence included.
Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards
Keep your wireless network secure with the latest Wi-Fi encryption technology.
Easy to add or scale back in line with demand.
Cloud-based auto-configuration allows for swift plug-and-play installation and eliminates the need for on-site setup.

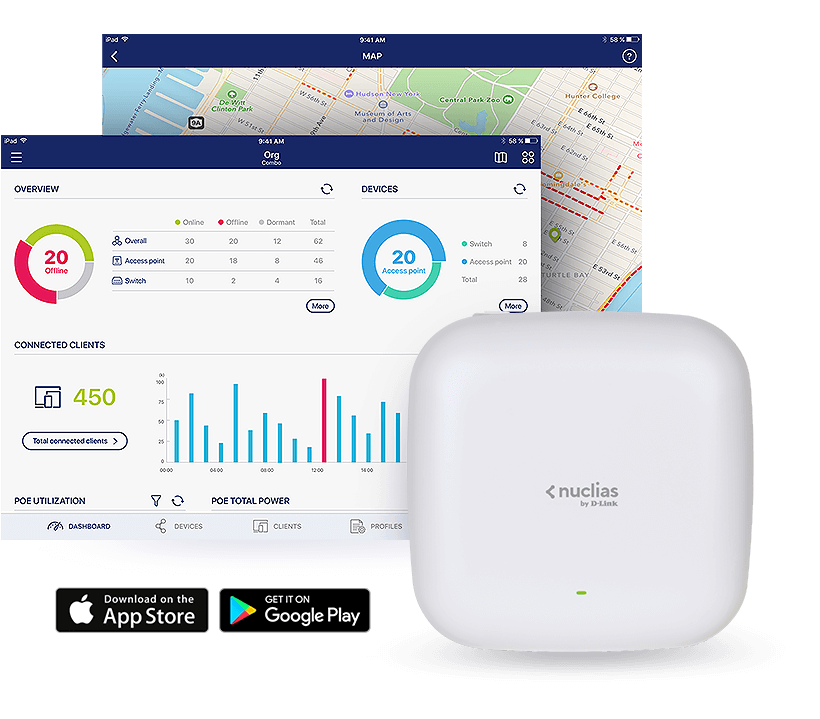

Manage your network from one place from a browser or through the tablet app, anywhere, anytime.

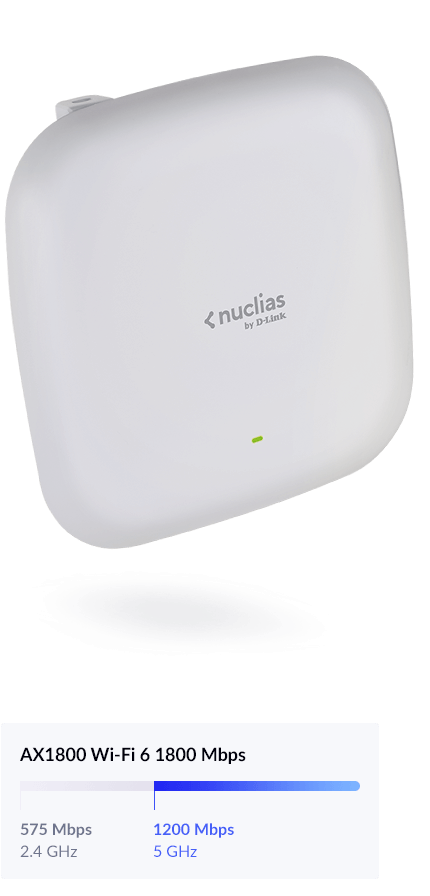

With combined Wi-Fi 6 speeds of up to 1,800 Mbps with MU-MIMO and dual-band technology, The DBA-X1230P provides lightning-fast access to cloud-based applications, fast data transfer, smooth voice and video streaming, even in highly congested environments.
Learn more about Wi-Fi 6

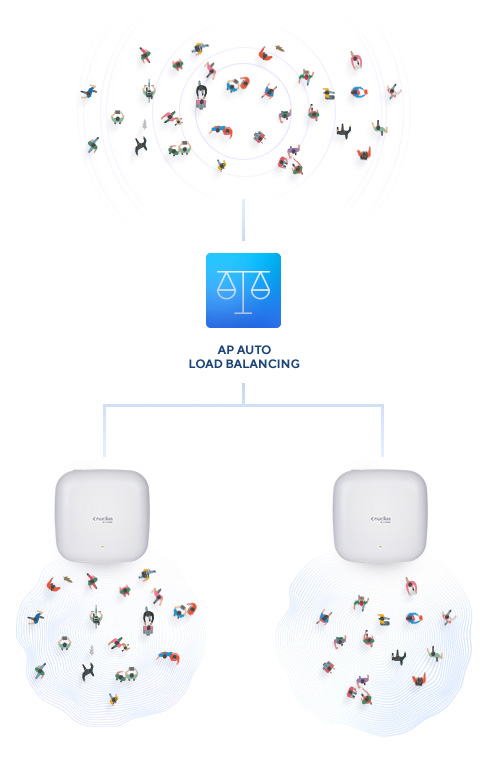

When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time. And BSS Colouring, OFDMA, and MU-MIMO all increase wireless network capacity and efficiency.

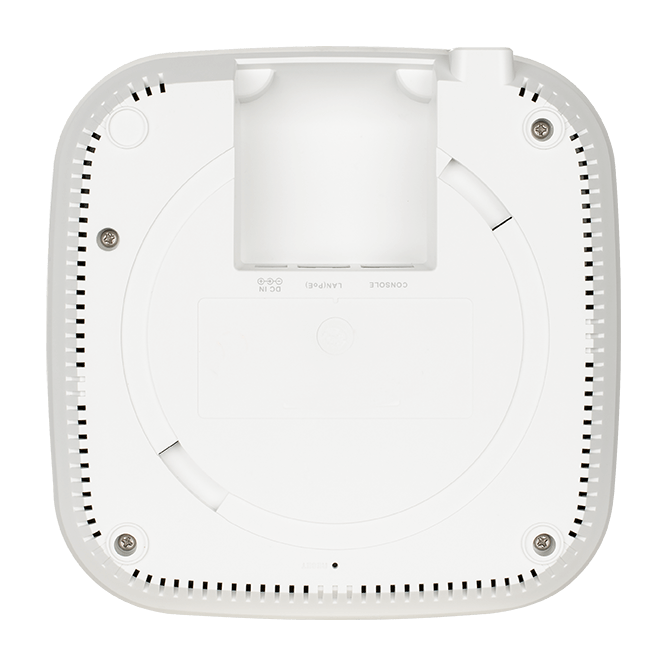

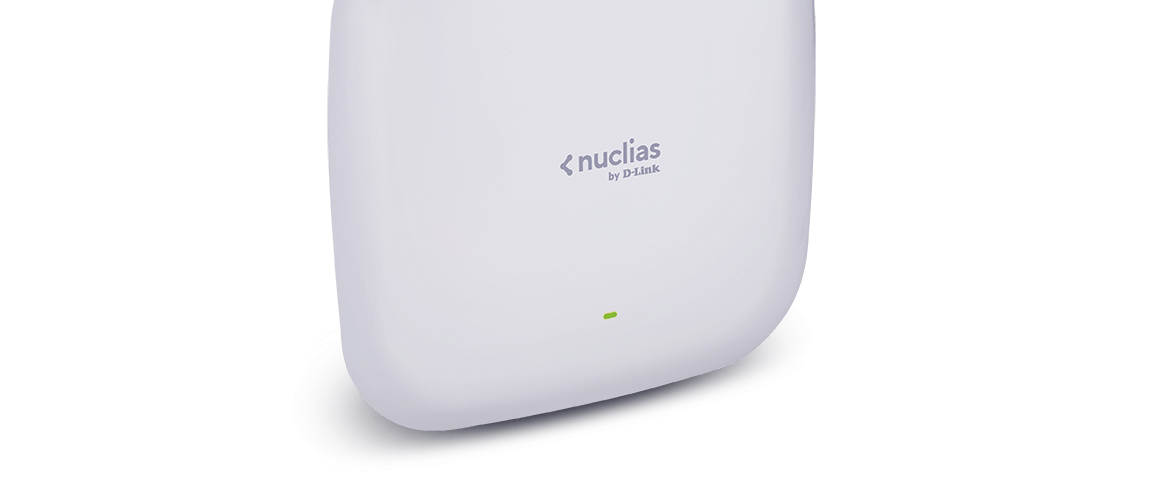

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DBA-X1230P’s PoE function allows for easy installation and a simple, clean setup. No need to run extra power lines, and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
Automate, monitor, manage and scale your network without the complexity or cost.

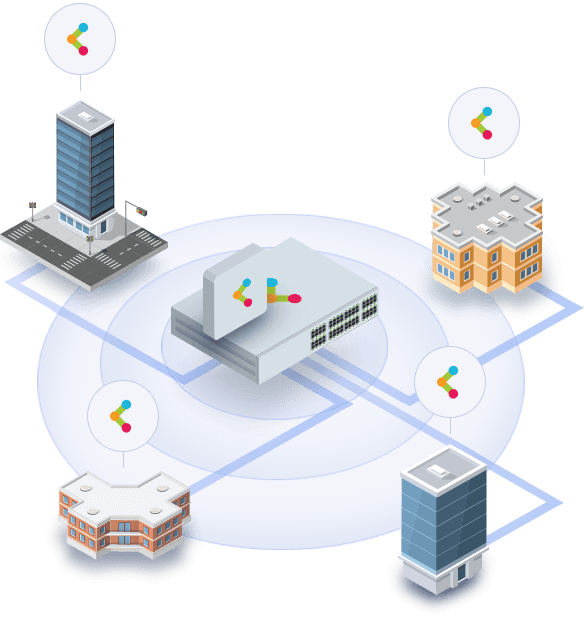

The DBA-X1230P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.

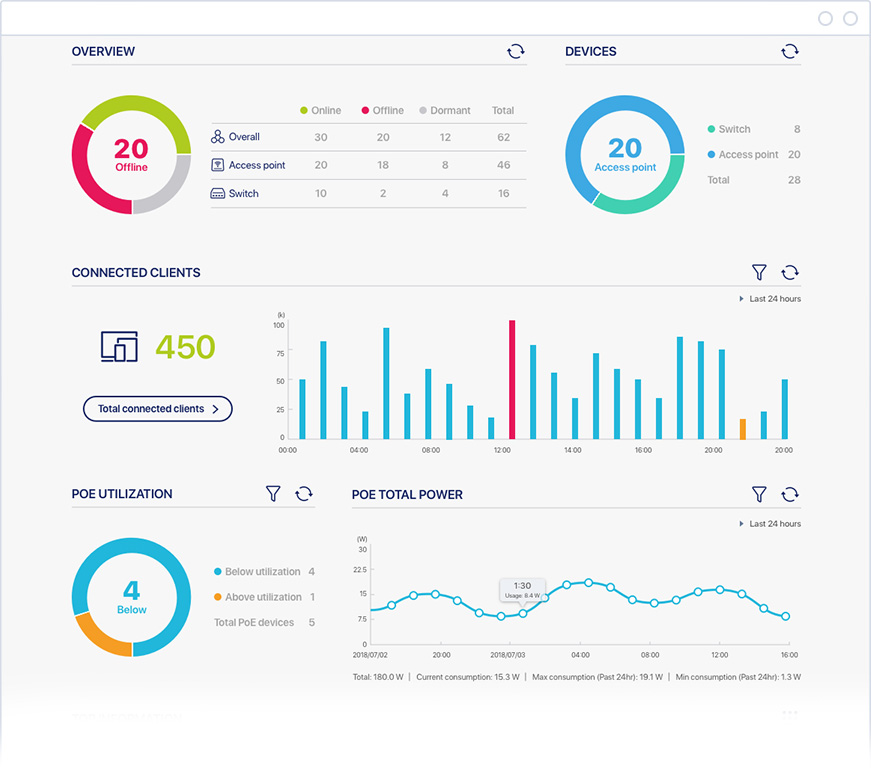

With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. Now you can focus more on providing reliable connectivity and services and spend less time managing devices.

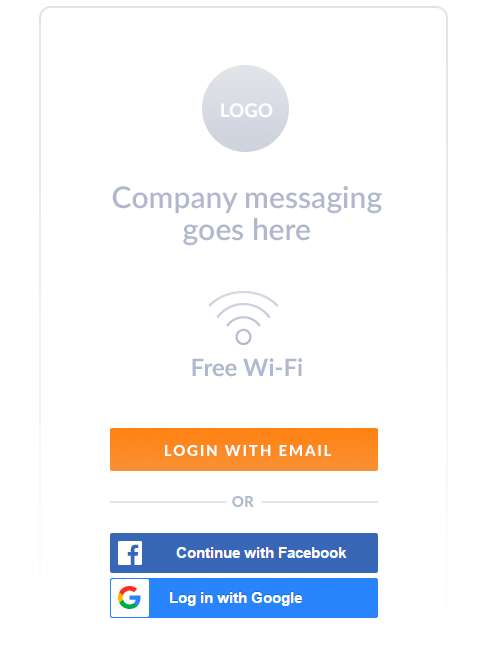

Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.

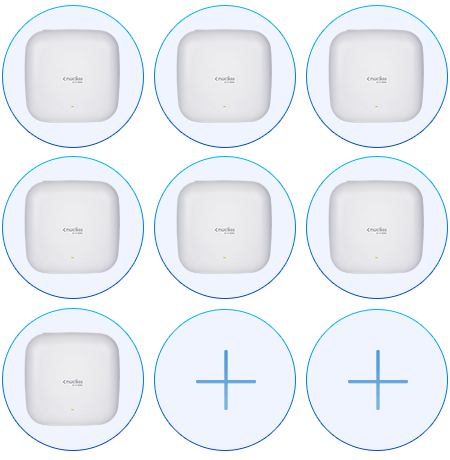

Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of your business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.
Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.
Deploy an efficient network built for the future. Easily manage multiple sites, and see detailed reports.
Create a secure and fast Wi-Fi experience for all your guests throughout all your premises.
Ensure staff and student online safety while supporting a digital learning experience.
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
|
Category
|
Ceiling |
|---|---|
|
Interfaces
|

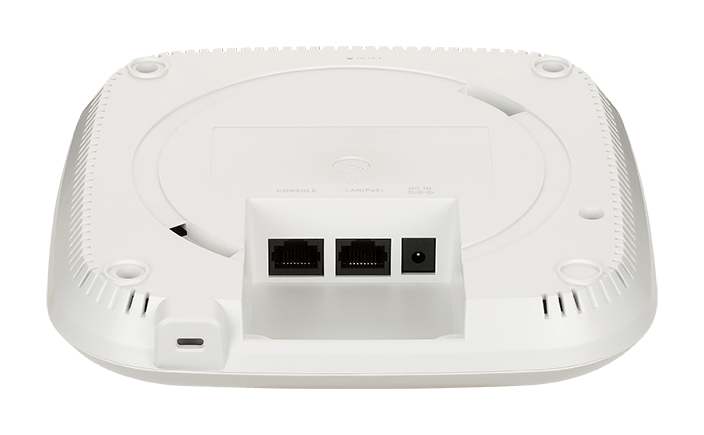

1 x Gigabit Ethernet PoE LAN port |
|
Antenna type
|
2 x Dual-band internal antennas |
|
Antenna gain
|
2.4 GHz: 3 dBi 5 GHz: 4 dBi |
|
Maximum Output Power
|
2.4 GHz: 20 dBm 5GHz: 23dBm |
|
Data Signal Rate
|
2.4 GHz: Up to 574 Mbps 5 GHz: Up to 1201 Mbps |
|
IEEE Standard
|
IEEE 802.11ax/ac/n/g/b/a IEEE 802.3u/ab IEEE 802.3at PoE |
|
Operating Frequency
|
2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Security Protocol
|
WPA2/WPA3™ Personal/Enterprise MAC address filtering RADIUS server authentication SSID isolation Guest isolation Captive portal Station isolation |
|
Network Management
|
Nuclias Cloud |
|
Power Supply
|
IEEE 802.3at PoE 12 V / 1.5 A (Optional power adapter) |
|
Max. Power Consumption
|
16 W |
|
Operating Temperature
|
0°C - 40°C (32°F - 104°F) |
|
Storage Temperature
|
-20°C to 65°C (-4°F to 149°F) |
|
Operating Humidity
|
10% to 90% |
|
Storage Humidity
|
5% - 95% |
|
Dimensions
|
170 x 170 x 33.7 mm |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
