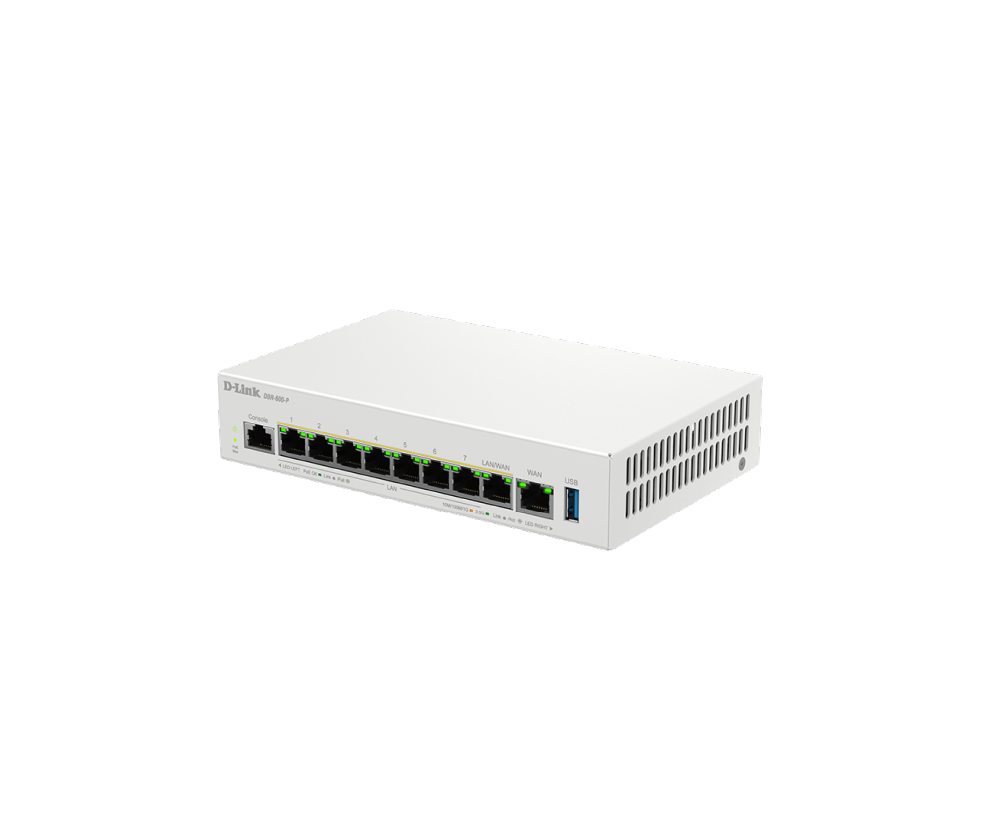

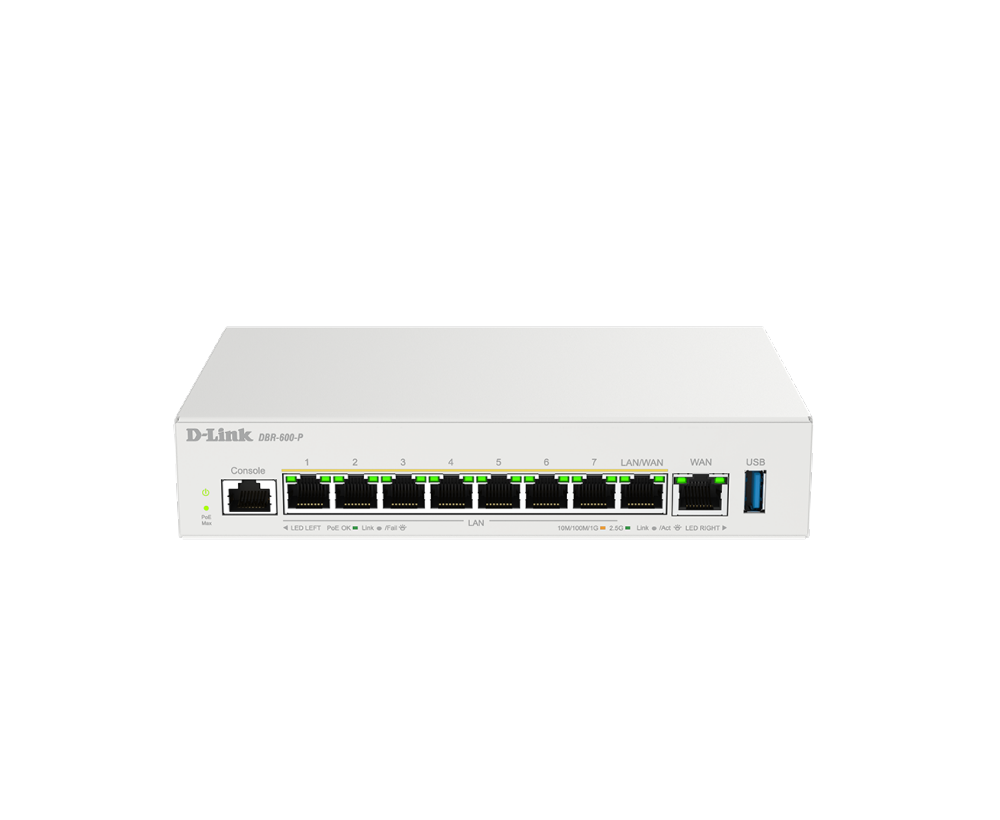

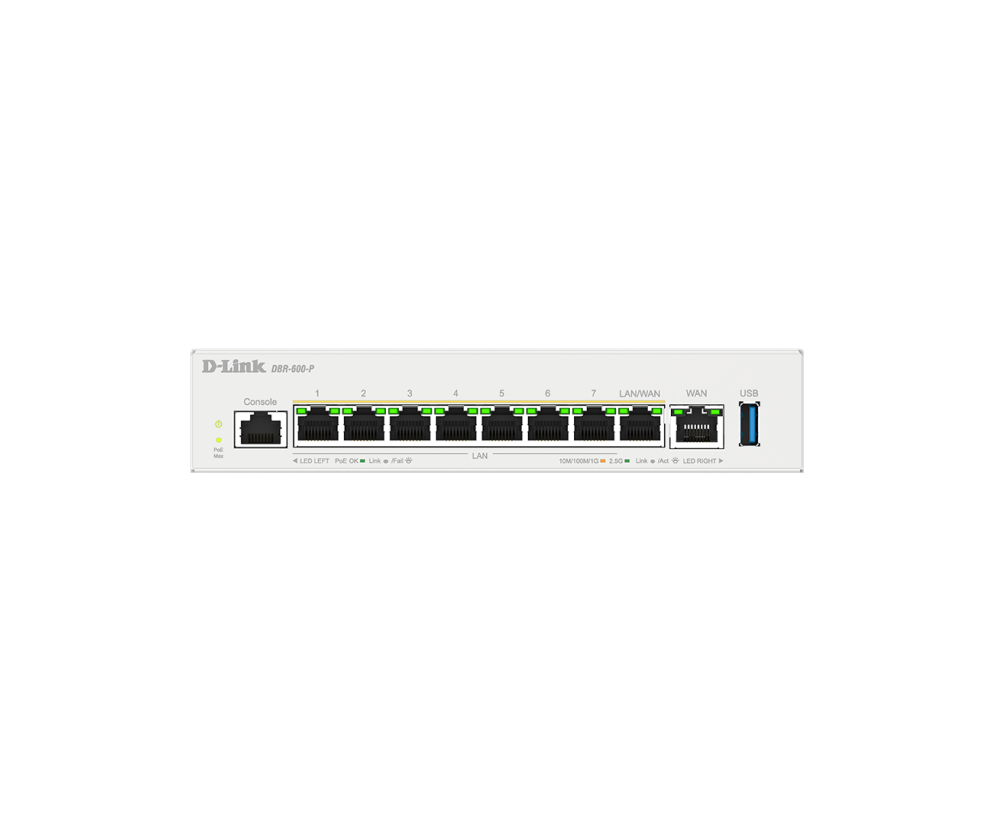

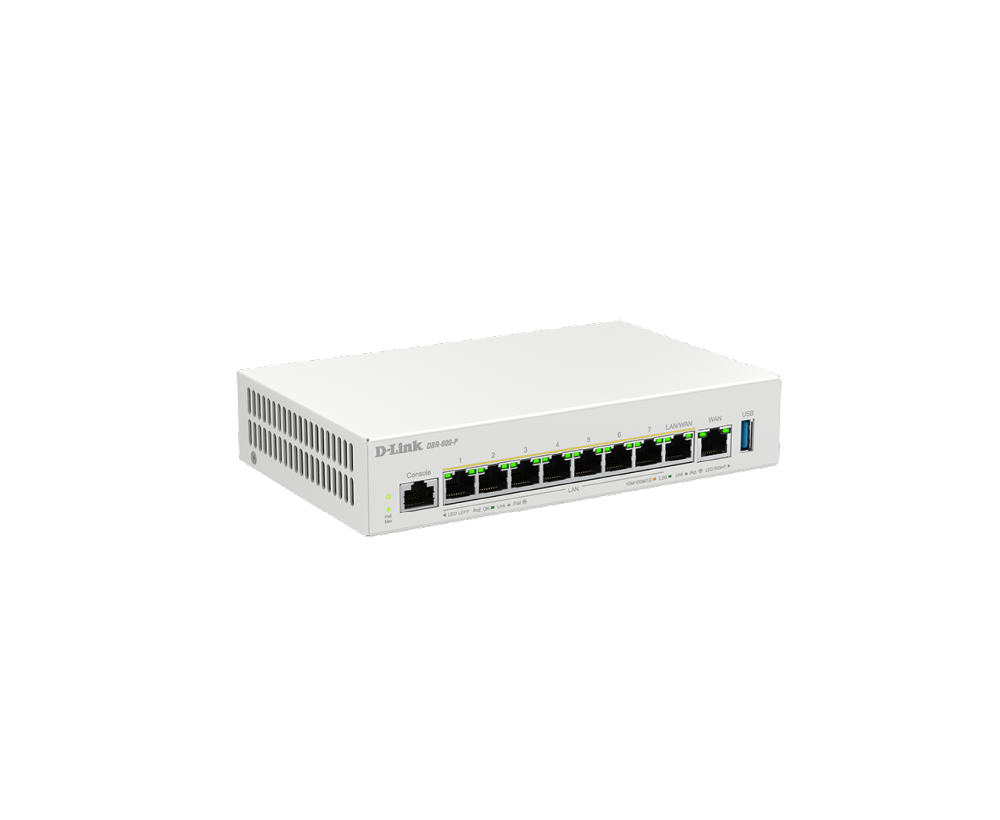

Business PoE Router
DBR-600-P
- Product Status: Live
- 1 x 2.5G WAN port delivers high-speed connections
- Up to 8 x 2.5G PoE LAN ports, 123W power budget
- USB 3.0 integrates with the D-Link 4G/5G dongle
- Multi-WAN enables steady and balanced connectivity
- Advanced firewall protect the network against threats
- Comprehensive network functionality cover all needs
- Manage up to 10 D-Link Smart Access Point series
- Bandwidth management optimizes service priority
- Easy Web GUI for central monitoring and management
- Made In Taiwan

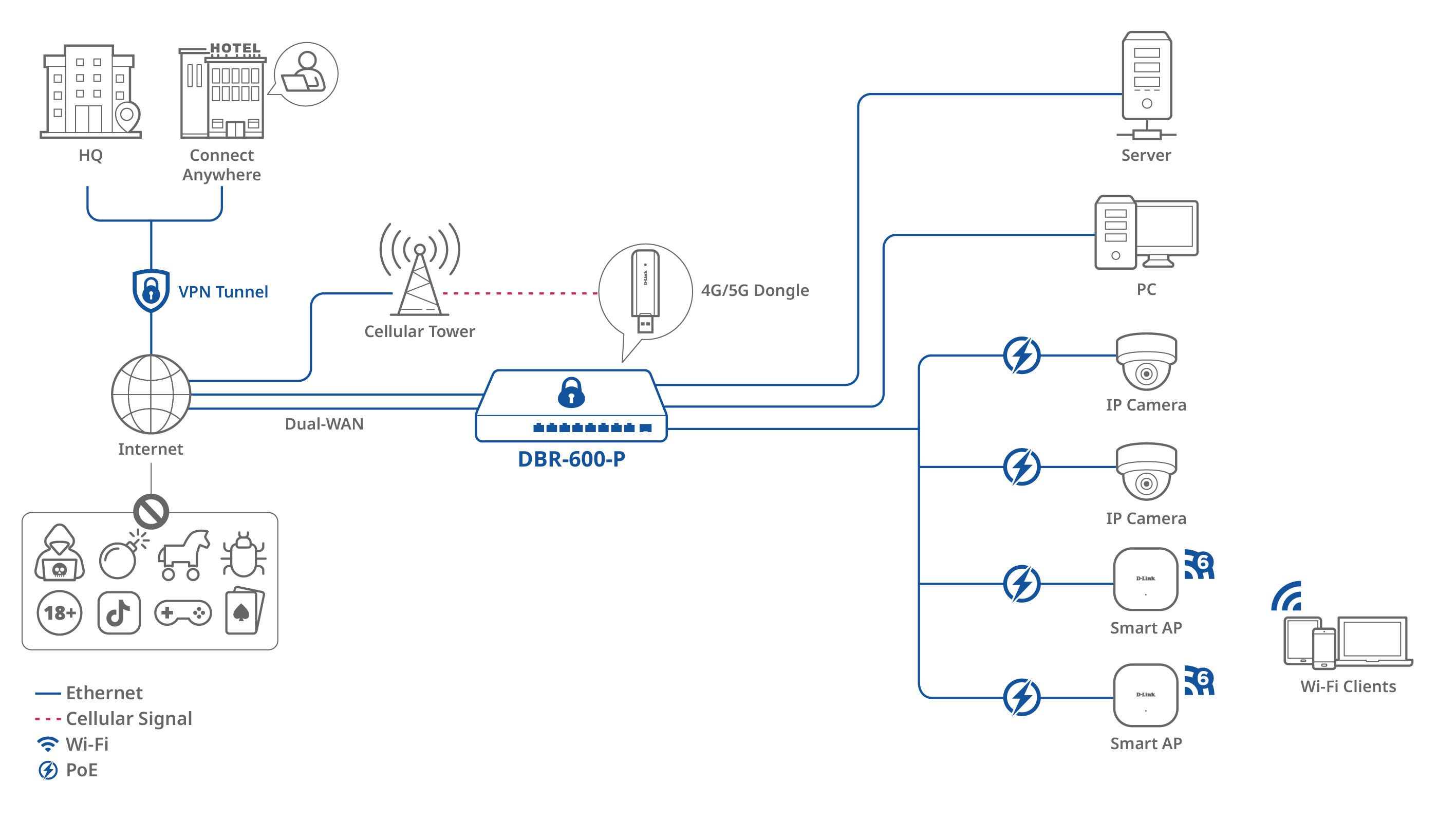

Multi-Gigabit Business VPN Router with Built-In Management
The DBR-600-P equips all port 2.5G interface and powerful processor to delivers high-performance throughput and connectivity across network devices. The multi-WAN feature offers continuous, reliable network services around the clock. Its robust firewall and VPN capabilities secure network access in and out, ensuring a protected data transmission for all connected devices and remote sites. Built-in AP management and PoE simplifies wireless access point maintenance and installation, making it an ideal solution for small businesses seeking efficient and omni features.
Send Large Files in a Snap
Enjoy faster 2.5Gbps data transfers, saving time and reducing wait
Reliable Multi-WAN Connectivity
up to 3 WAN ports for uninterrupted connectivity and optimized traffic
PoE Ports for Hassle-Free Deployment
PoE-enabled ports simplify installation and power up 8 devices
Comprehensive and Robust VPN
Powerful VPN ensures secure access for business offices and remote workers
Access Under Protection
Firewall protection keeps your network safe from unauthorized access and cyber threats
One-stop APs Management
Monitor and control smart access points easily via the built-in management platform
USB Port More Than Just a Port
Extend service with D-Link 4G/5G dongles as a backup WAN connection or additional external storage
Smart Performance Optimization
Prioritizing critical applications and balancing traffic to avoid congestion

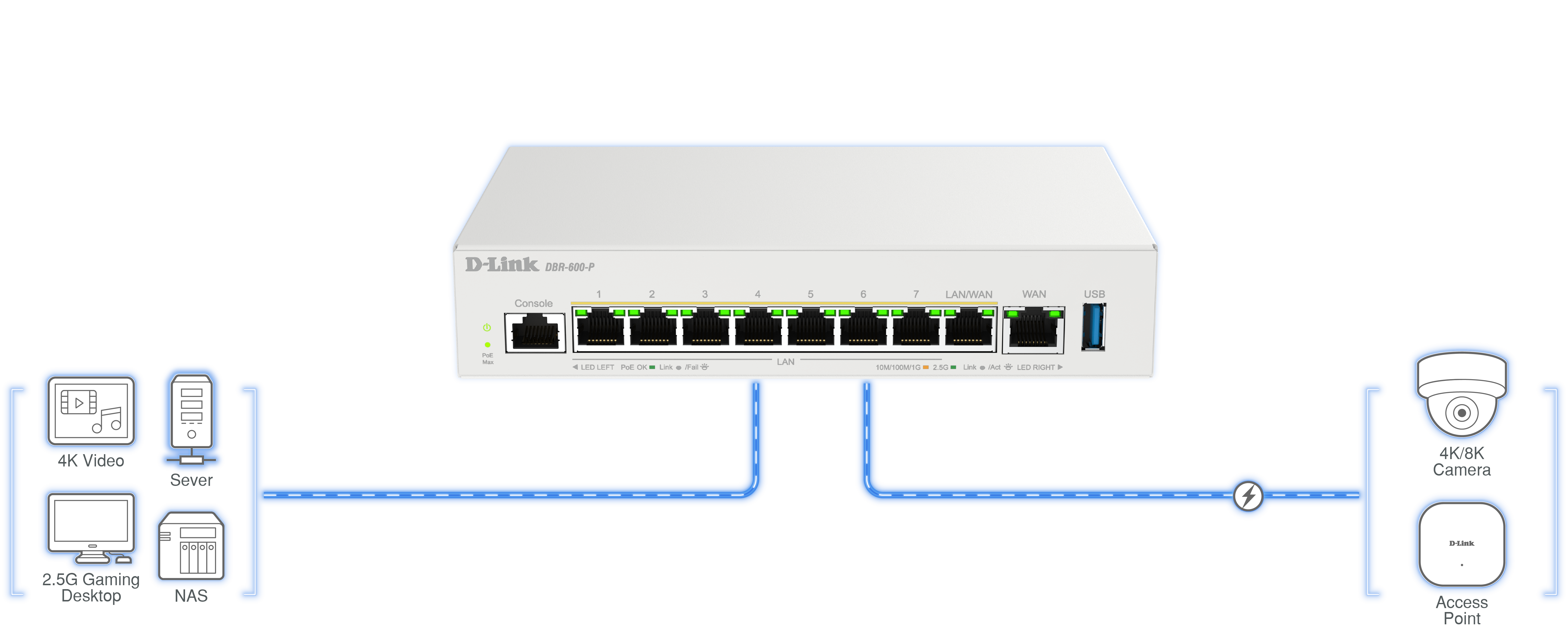

2.5G Connectivity
Drive Tomorrow's Success with Enhanced Performance
Drive Tomorrow's Success with Enhanced Performance
The DBR-600-P features a 2.5G interface, providing higher throughput to support faster file transmission and triple play service without congestion and latency, benefiting your business in real-time communication, enabling more stable and reliable connectivity. Its eight PoE-enabled ports up to 123W power budget make installation easily and costless by delivering both power and data through a single cable, making it perfect for devices like IP cameras and access points.

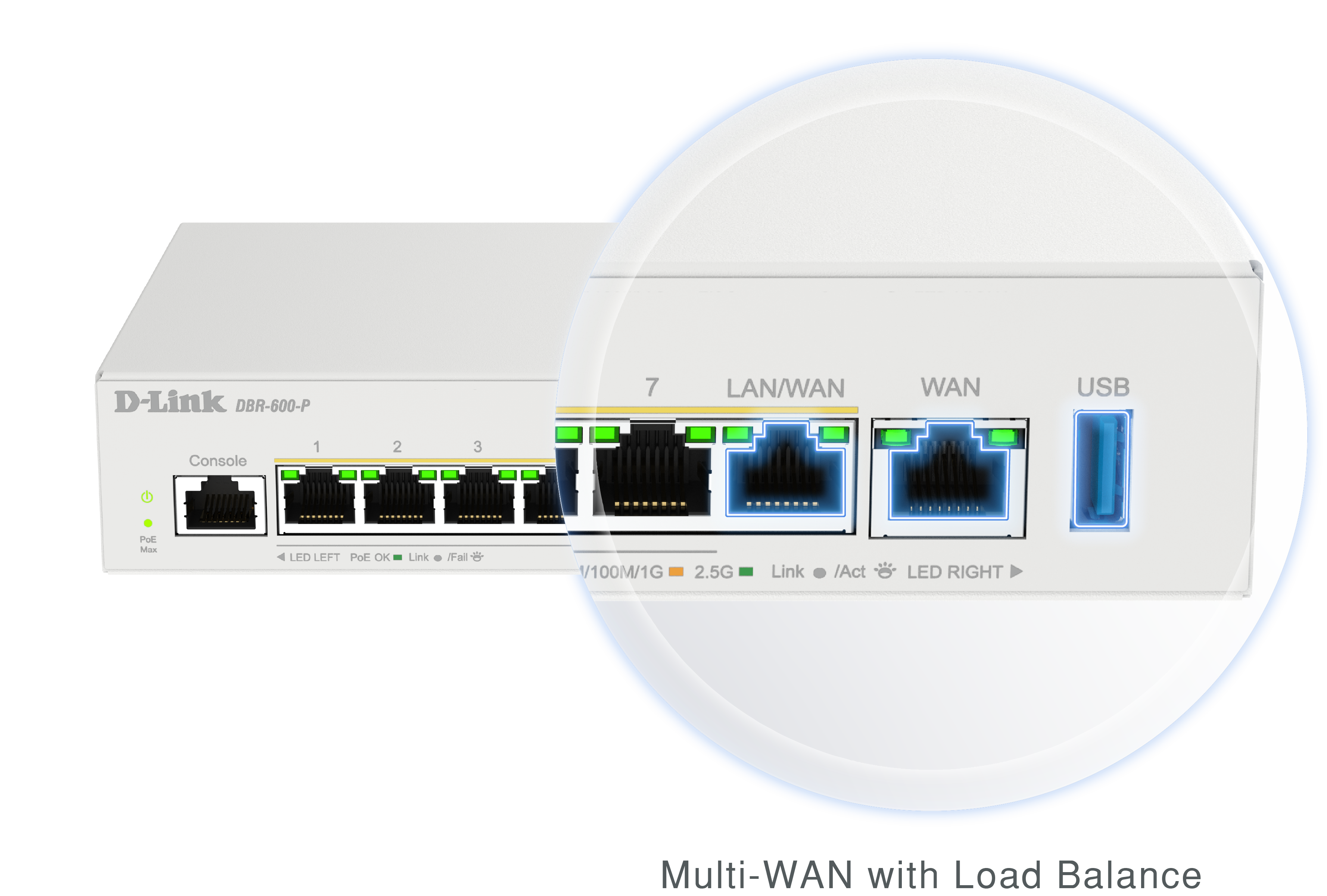

Multi-WAN
Experience Unbeatable Network Stability
Experience Unbeatable Network Stability
In addition to one WAN/LAN port that can be set as the secondary WAN, the USB port not only extends the service by integrating with the D-Link 4G/5G dongle for WAN failover or load balance but also allows it to serve as external storage for file sharing or logging saving.
With up to 3 WAN ports, the DBR-600-P stays connected even if your primary connection goes down—automatic failover seamlessly switches to a backup. Load balancing distributes network traffic across multiple WAN connections, ensuring reliable performance and optimized traffic flow to
keep your business always online and efficient without service downtime.

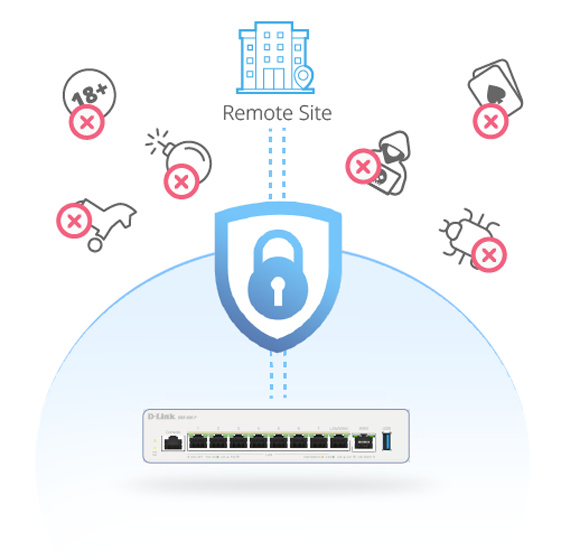

Robust Security
Always Secure Your Network and Access
Always Secure Your Network and Access
Comprehensive built-in advanced security features, such as a firewall, IPS and web filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improve secure connection establishment with any device, deeply protecting data from unauthorized access and maintaining privacy across all network interactions.

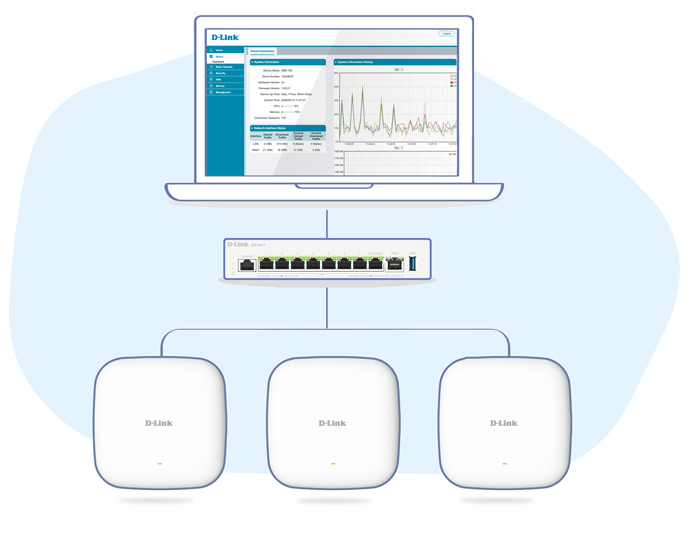

One-stop APs Management
Through an intuitive web UI, the DBR-600-P centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 10 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.
Gerelateerde Producten
Ondersteunde L2+-functies
De switches van de DMS-1250-serie bieden een uitgebreide reeks Layer 2+-mogelijkheden, waaronder:
- Static Route
- IPv4/IPv6
- DHCP-relais*
- DiffServ QoS
- Port Mirroring
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP en MLD Snooping
Beste keuze voor SOHO, SMB en MDU
De switches uit de DMS-1250-serie zijn veelzijdig en geschikt voor SOHO-, SMB- en MDU-omgevingen. Ze bieden snelle gegevensoverdracht met 2,5GE en een cruciale 10G-uplink voor externe connectiviteit. Deze high-speed uplink zorgt ervoor dat de hele MDU toegang heeft tot externe diensten zonder te kampen met data-bottlenecks. Bovendien implementeren ze effectief IEEE 802,3at of IEEE 802,3bt in DMS-1250-10SP, 10SPL en 12TP om apparaten in staat te stellen stroom aan te sluiten en te ontvangen.

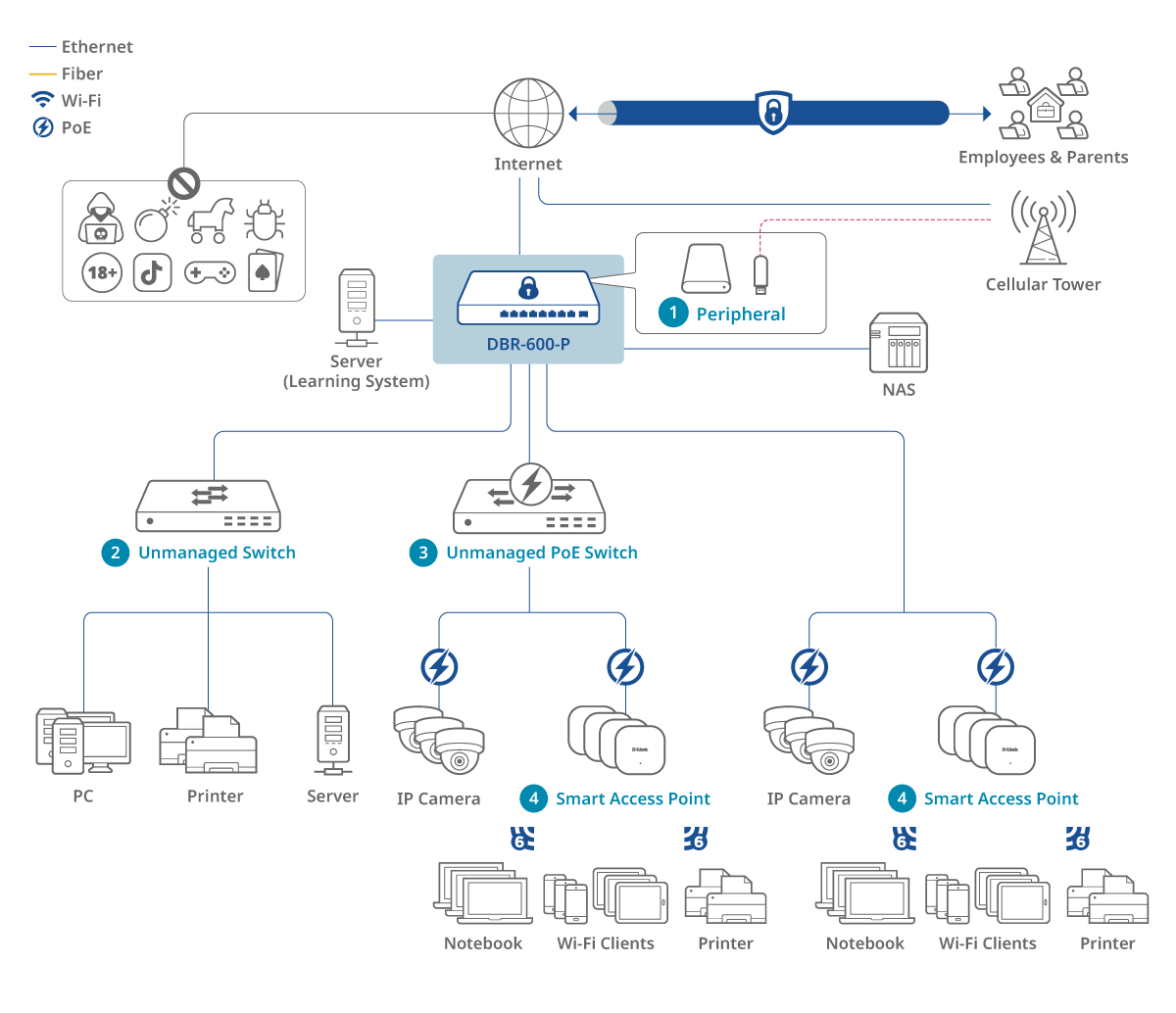

Kindergarten (Education)
DMS-1250-serie Switches Vergelijking
 DMS-1250-10S |  DMS-1250-10SPL |  DMS-1250-10SP |  DMS-1250-12TP | |
|---|---|---|---|---|
| Interface | 8 x 2,5GE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10G SFP+
| 8 x 2,5GE PoE 2 x 10GE
2 x 10GE SFP+ |
| Prestaties | ||||
| Switch-capaciteit | 80 Gbps | 80 Gbps | 80 Gbps | 120 Gbps |
| Max. Packet Forwarding Rate | 59,53 Mpps | 59,53 Mpps | 59,53 Mpps | 89,29 Gbps |
| PoE | ||||
| PoE-standaard | n.v.t. | IEEE802.3bt + IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| PoE-poorten | n.v.t. |
Poort 1 ~ 2 (IEEE802.3bt) Poort 3 ~ 8 (IEEE802.3af/at) | Poort 1 ~ 8 | Poort 1 ~ 8 |
| PoE-budget | n.v.t. | 120 W | 240 W | 240 W |
| Technische specificatie | ||||
| Overspanningsbeveiliging | ・IEEE61000-4-5 conforme overspanningsbeveiliging ・6 kV overspanningsbeveiliging op alle 2,5 Gigabit Ethernet-poorten | |||
| Maximaal opgenomen vermogen | 13,58 W | 147 W (PoE on) | 287,58 W (PoE on) | 289,74 W (PoE on) |
| Ventilator | Ventilatorloos | Ventilatorloos | 2 interne ventilatoren | 2 interne ventilatoren |
| Consolepoort | Ja | Nee | Ja | Ja |
| Type voeding | Intern | Extern | Intern | Intern |
Specs
|
Interfaces
|
1 x 10/100/1000/2.5G WAN port 1 x 10/100/1000/2.5G WAN/LAN Configurable ports 7 x 10/100/1000/2.5G LAN port 1 x USB 3.0 |
|---|---|
|
WAN load balance
|
Yes |
|
PoE Standards
|
IEEE 802.3at |
|
PoE Power Budget
|
123 W |
|
Firewall throughput
|
2Gbps |
|
IPsec Tunnel
|
50 |
|
Firewall
|
IPS/IDS SPI Firewall MAC/IP Filtering URL Blocking |
|
VPN tunnels
|
IPSec PPTP OpenVPN L2TP WireGuard |
|
IPS/DoS/DDoS
|
Yes |
|
AP Management
|
Up to 10 DBR-X3000-AP |
|
Captive Portal
|
Yes |
|
Dimensions
|
120 x 190 x 38 mm |
|
Temperature
|
Operating: 0 to 40 °C (32 to 104 °F) Storage: -10 to 70 °C (14 to 158 °F) |
|
Humidity
|
Operating: 10% to 90% non-condensing Storage: 0% to 95% non-condensing |
