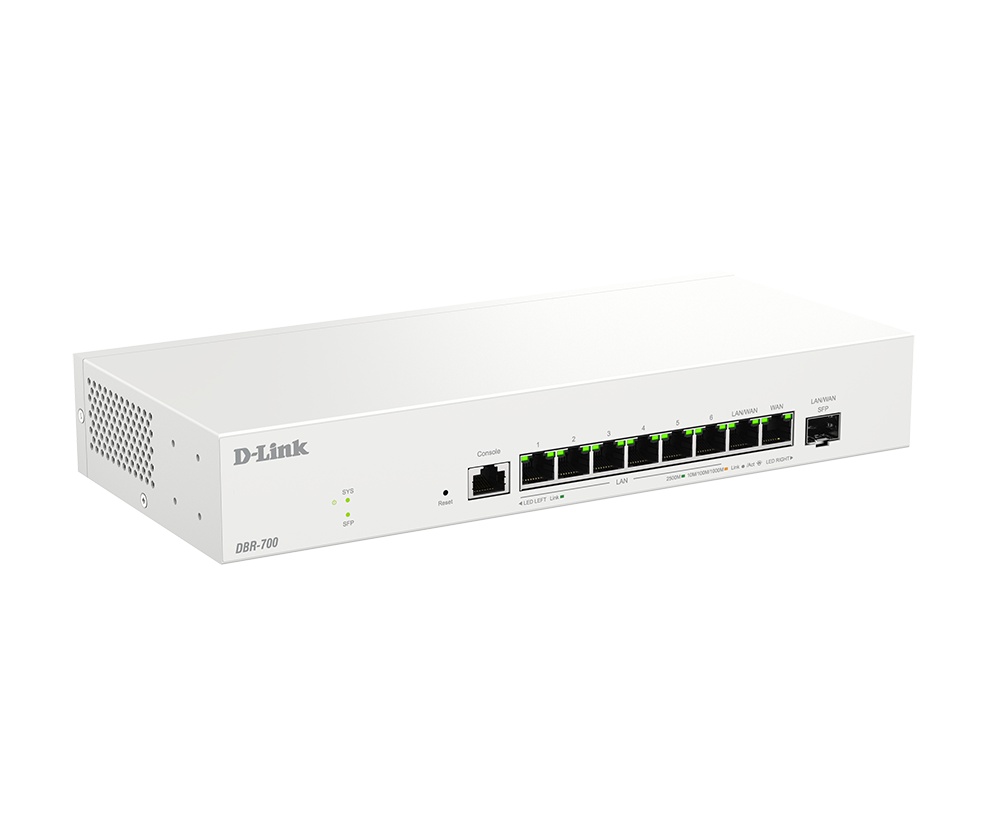

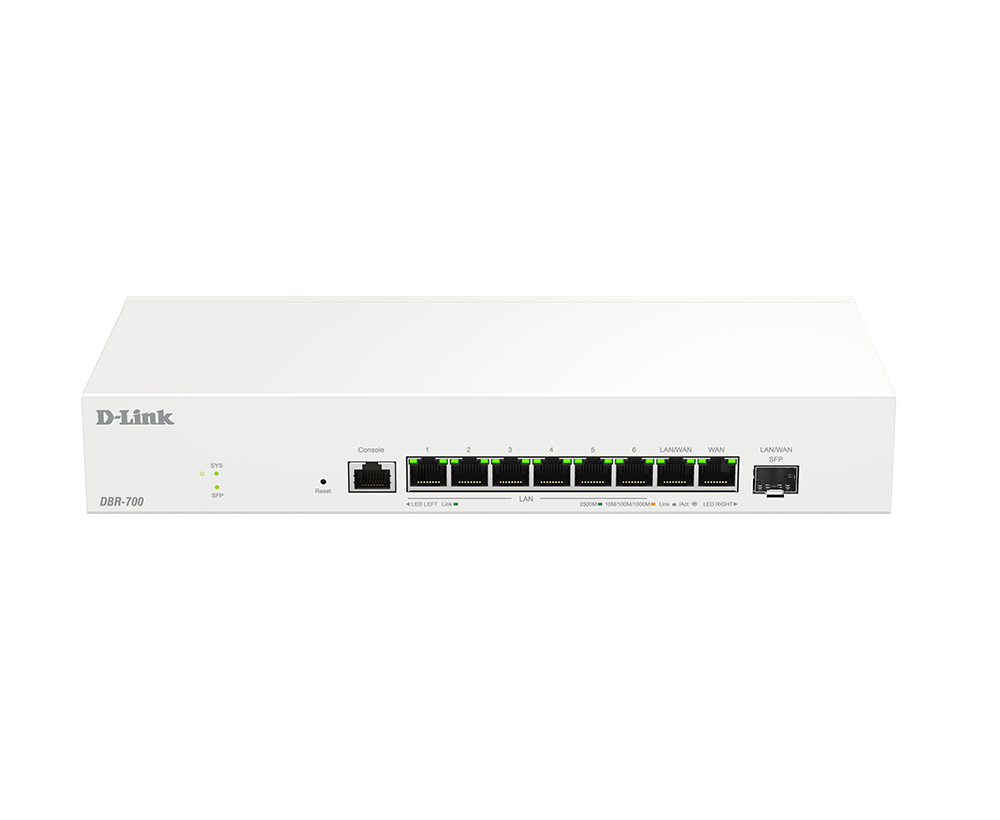

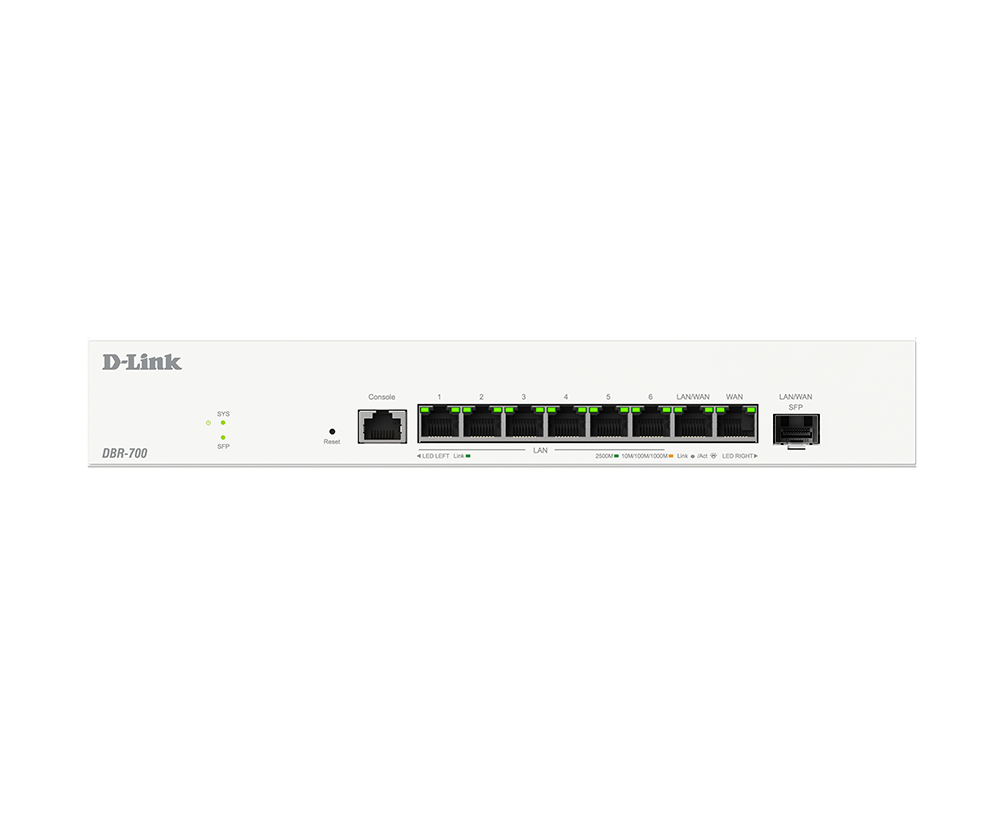

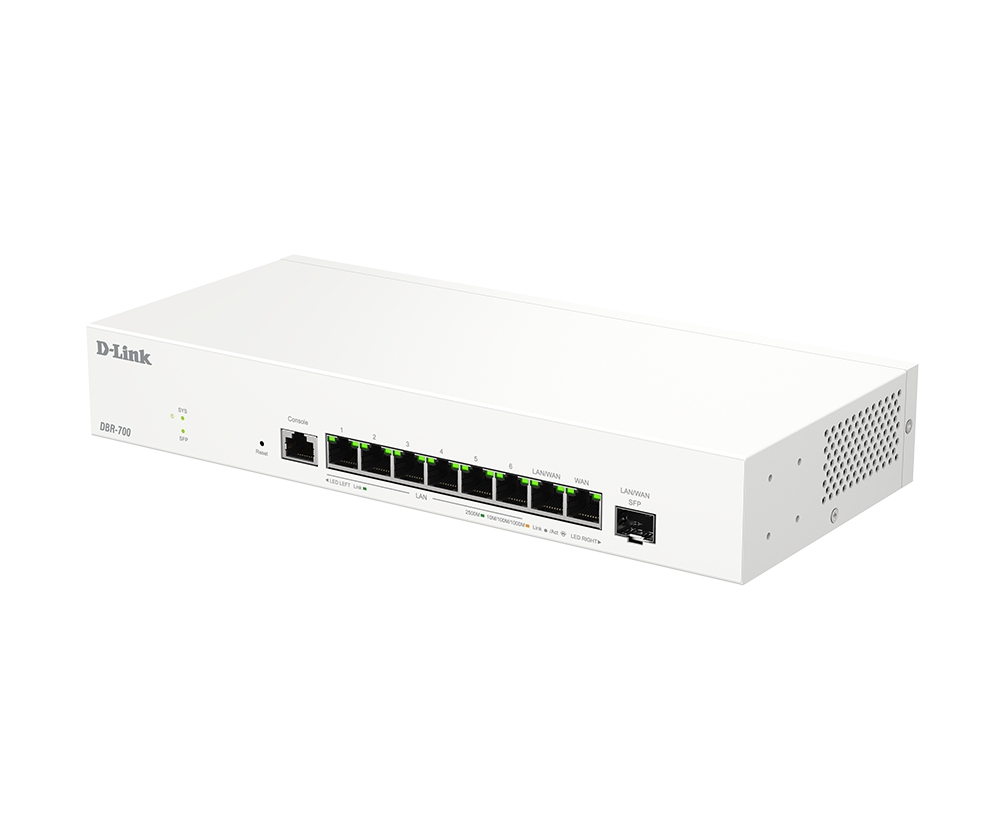

Business Router

DBR-700

  • Product Status: Live
  • 1 x 2.5G WAN port delivers high-speed connections
  • Up to 7 x 2.5G LAN ports to connect multiple devices
  • 1 x 2.5G SFP port supports long-distance connections
  • Multi-WAN enables steady and balancing connectivity
  • Advanced firewall protect the network against threats
  • Complete network functionality fits diverse setups
  • Manage up to 15 D-Link Smart Access Point series
  • Bandwidth management optimizes service priority
  • Easy Web GUI for central monitoring and management
  • Made In Taiwan
Alle Verkooppunten

Powerful Business VPN Router for Small Office Connectivity

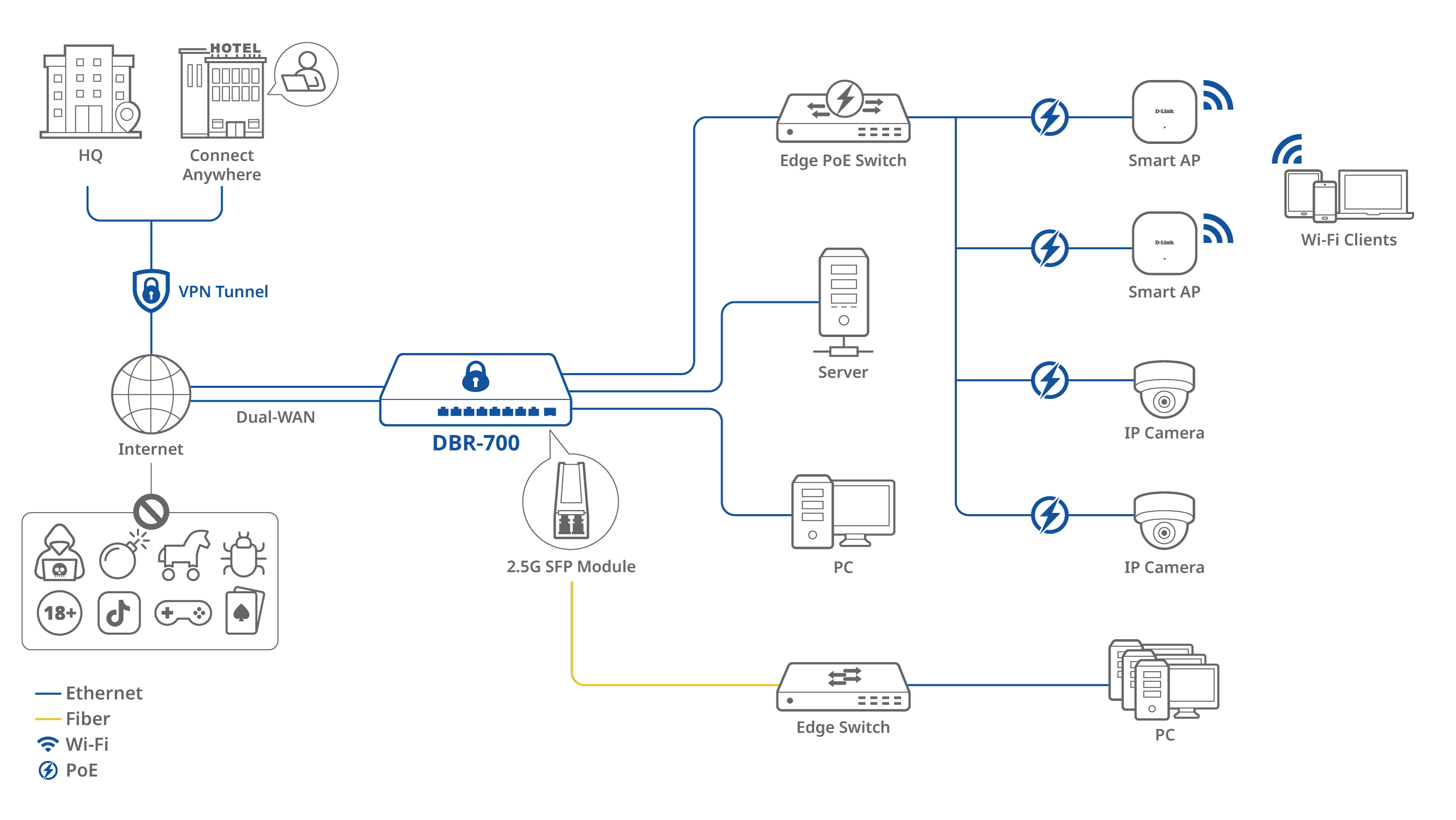

The DBR-700 is a high-performance business router featuring 2.5G interfaces, including SFP ports, providing flexible and stable wired connectivity, particularly for long-distance transmission. Multi-WAN functionality ensures uninterrupted network services by automatically switching to a backup WAN connection and load-sharing internet access. With a powerful firewall and supports IPsec VPN tunnels, your remote access is always secured and encrypted. Enhanced AP management simplifies centralized control of multiple access points, making the DBR-700 an excellent choice for businesses seeking reliable, secure, and high-speed networking.

Send Large Files in a Snap

Enjoy faster 2.5Gbps data transfers, saving time and reducing wait

Reliable Multi-WAN Connectivity

up to 3 WAN ports for uninterrupted connectivity and optimized traffic

Built-in Fiber Port for Long-distance

Offers degradation-free signals for long-distance data transmission

Comprehensive and Robust VPN

Powerful VPN ensures secure access for business offices and remote workers

Access Under Protection

Firewall protection keeps your network safe from unauthorized access and cyber threats

One-stop APs Management

Effortlessly monitor and control smart access points with the built-in management platform

Intelligent Network Optimization

Prioritizing critical applications, balances traffic to avoid congestion, and efficiently use the resources

User-friendly Web UI Platform

Intuitive web UI streamlines management, enhances operational efficiency and minimizes errors

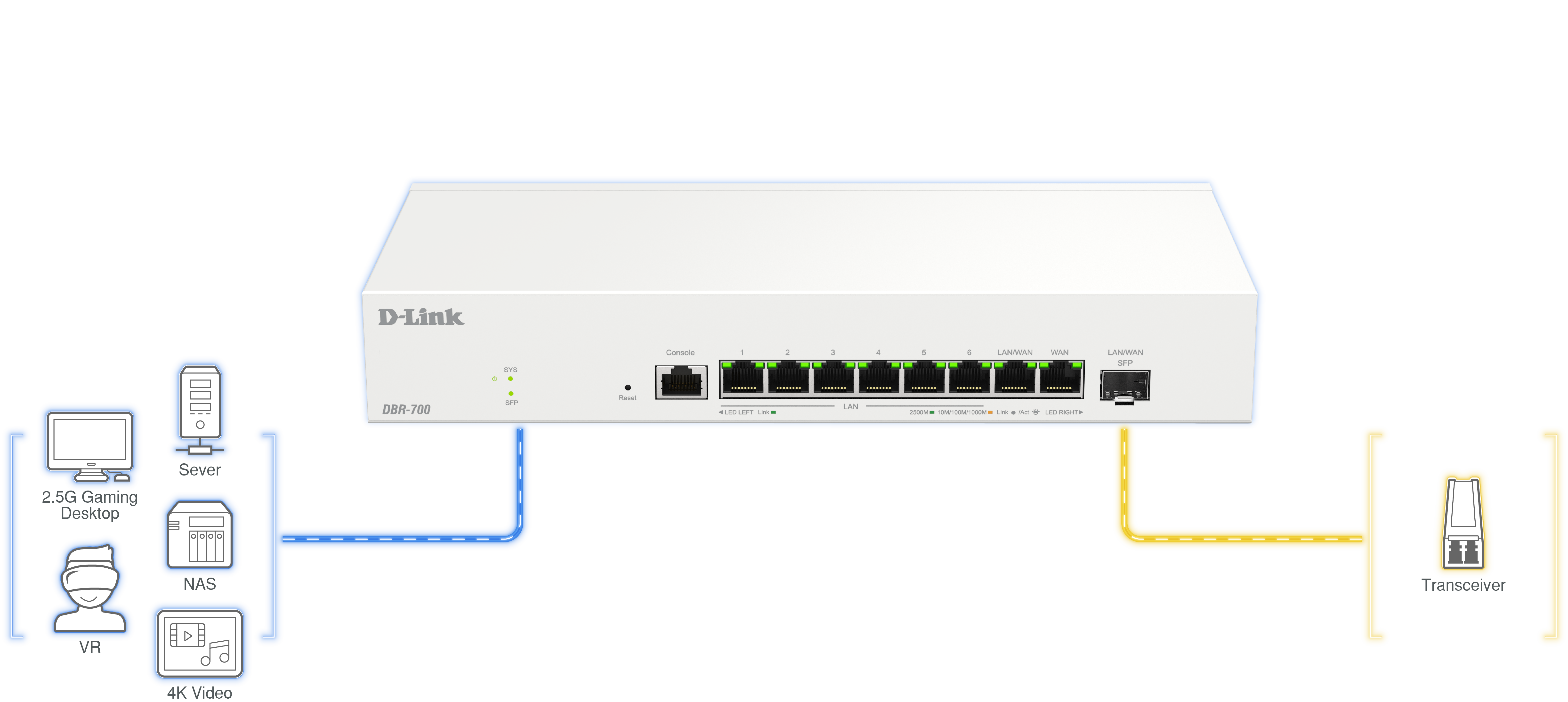

2.5G Connectivity
Maximize Efficiency and Growth with a Powerful Interface

The DBR-700 features a 2.5G interface, providing higher bandwidth to support faster file transfers and lag-free, high-quality 4K/8K video streaming, enhancing daily productivity with more stable and reliable connectivity. The SFP (Small Form-Factor Pluggable) port enables long-distance data transmission, offering greater flexibility and scalability in network design. With the fiber port, businesses can easily scale their network without zone limitations.

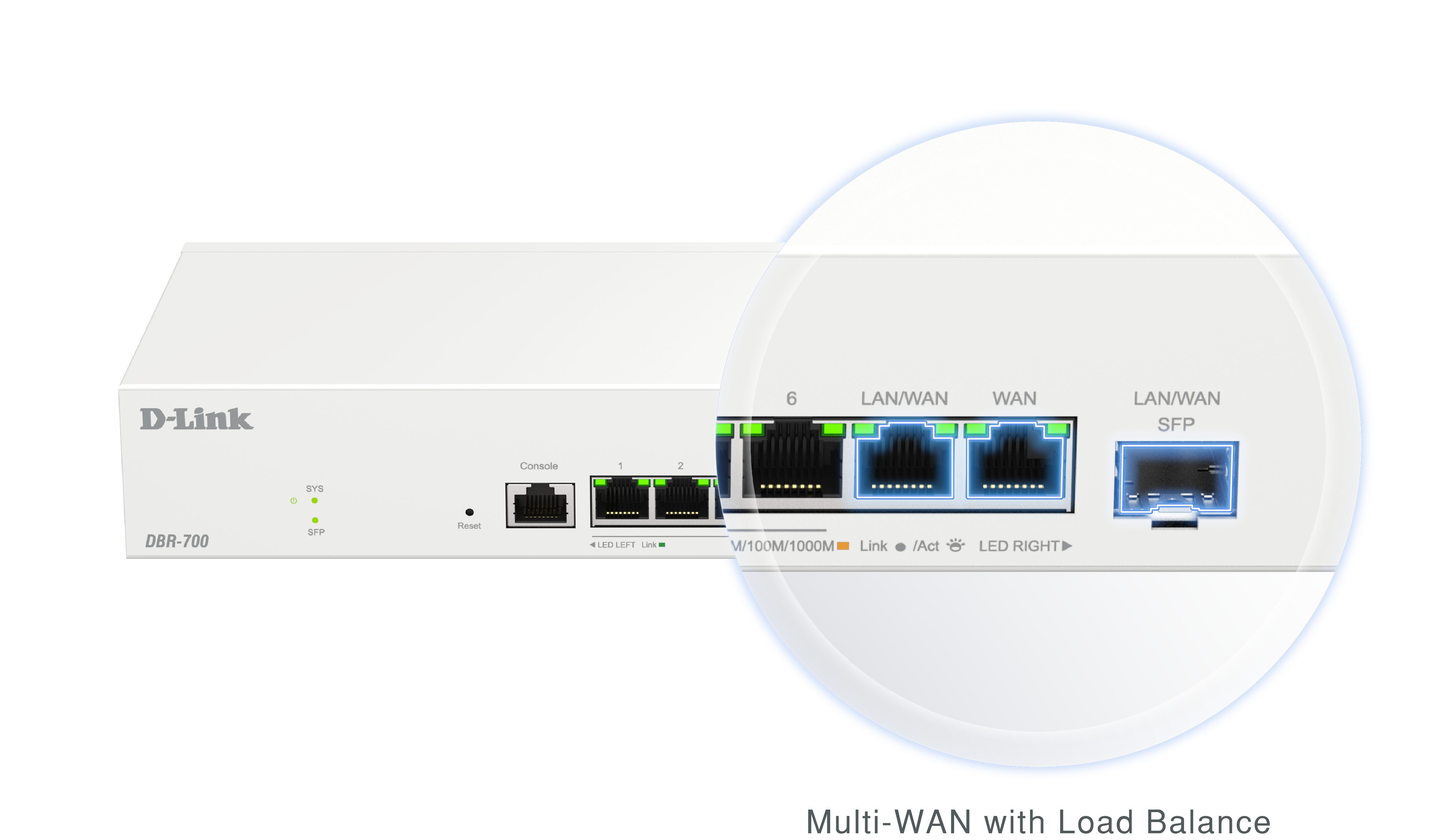

Multi-WAN
Always Online, Always Reliable

In addition to a WAN/LAN port that can be configured as a secondary WAN, the SFP port can also serve as a 3rd WAN connection. Multi-WAN functionality enhances network reliability and ensures consistent service.

With up to 3 WAN ports, the DBR-700 keeps your business always connected. Load balancing distributes network traffic across multiple WAN connections, preventing any single connection from being overwhelmed, averaging overall internet usage, and ensuring continuity with backup connections in case of failures.

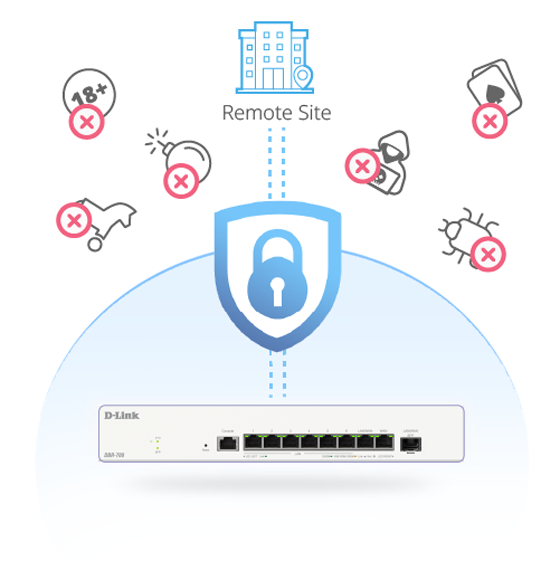

Robust Security
Always Secure Your Network and Access

Comprehensive built-in advanced security features, such as a firewall, IPS and web filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improve secure connection establishment with any device, deeply protecting data from unauthorized access and maintaining privacy across all network interactions.

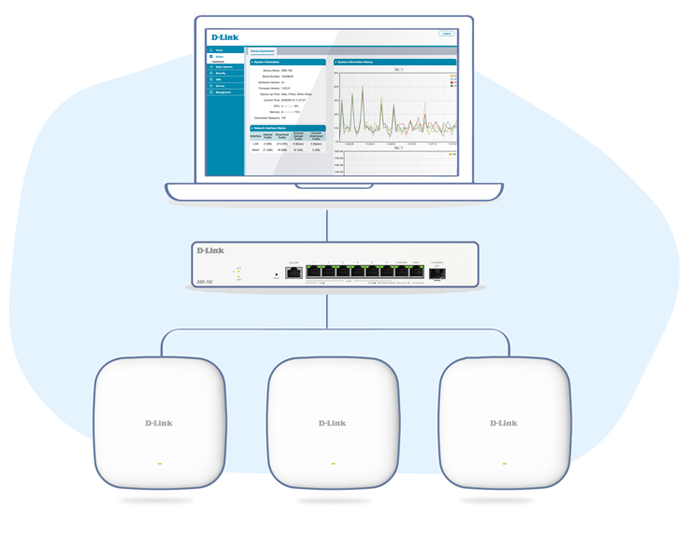

One-stop APs Management

Through an intuitive web UI, the DBR-700 centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 15 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.

Gerelateerde Producten

Business PoE Router
DBR-600-P
Meer lezen
AX3000 Wi-Fi 6 Smart Access Point
DBR-X3000-AP
Meer lezen

Ondersteunde L2+-functies

De switches van de DMS-1250-serie bieden een uitgebreide reeks Layer 2+-mogelijkheden, waaronder:

  • Static Route
  • IPv4/IPv6
  • DHCP-relais*
  • DiffServ QoS
  • Port Mirroring
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP en MLD Snooping
* Houd er rekening mee dat ondersteuning alleen beschikbaar is in versie R2 of hoger.

Applications

Supermarket (Business)

Villa Resort (Building)

Beste keuze voor SOHO, SMB en MDU

De switches uit de DMS-1250-serie zijn veelzijdig en geschikt voor SOHO-, SMB- en MDU-omgevingen. Ze bieden snelle gegevensoverdracht met 2,5GE en een cruciale 10G-uplink voor externe connectiviteit. Deze high-speed uplink zorgt ervoor dat de hele MDU toegang heeft tot externe diensten zonder te kampen met data-bottlenecks. Bovendien implementeren ze effectief IEEE 802,3at of IEEE 802,3bt in DMS-1250-10SP, 10SPL en 12TP om apparaten in staat te stellen stroom aan te sluiten en te ontvangen.​

Villa Resort (Building)

DMS-1250-serie Switches Vergelijking



DMS-1250-10S
DMS-1250-10S
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
Interface
8 x 2,5GE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10GE
2 x 10GE SFP+
Prestaties
Switch-capaciteit 80 Gbps 80 Gbps 80 Gbps 120 Gbps
Max. Packet Forwarding Rate 59,53 Mpps 59,53 Mpps 59,53 Mpps 89,29 Gbps
PoE
PoE-standaard n.v.t. IEEE802.3bt + IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
PoE-poorten n.v.t. Poort 1 ~ 2 (IEEE802.3bt)
Poort 3 ~ 8 (IEEE802.3af/at)
Poort 1 ~ 8 Poort 1 ~ 8
PoE-budget n.v.t. 120 W 240 W 240 W
Technische specificatie
Overspanningsbeveiliging ・IEEE61000-4-5 conforme overspanningsbeveiliging
・6 kV overspanningsbeveiliging op alle 2,5 Gigabit Ethernet-poorten
Maximaal opgenomen vermogen 13,58 W 147 W​ (PoE on) 287,58 W (PoE on) 289,74 W (PoE on)
Ventilator Ventilatorloos Ventilatorloos 2 interne ventilatoren 2 interne ventilatoren
Consolepoort Ja Nee Ja Ja
Type voeding Intern Extern Intern Intern

Specs

Interfaces
1 x 2.5GE WAN
1 x 2.5GE WAN/LAN
6 x 2.5GE LAN
1 x 2.5 Gigabit SFP WAN/LAN
WAN load balance
Yes
Firewall throughput
2Gbps
IPsec Tunnel
100
Firewall
IPS/IDS
SPI Firewall
MAC/IP Filtering
URL Blocking
VPN tunnels
IPSec
PPTP
OpenVPN
L2TP
WireGuard
IPS/DoS/DDoS
Yes
AP Management
Up to 15 DBR-X3000-AP
Captive Portal
Yes
Dimensions
120 x 280 x 45 mm
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 0% to 95% non-condensing
