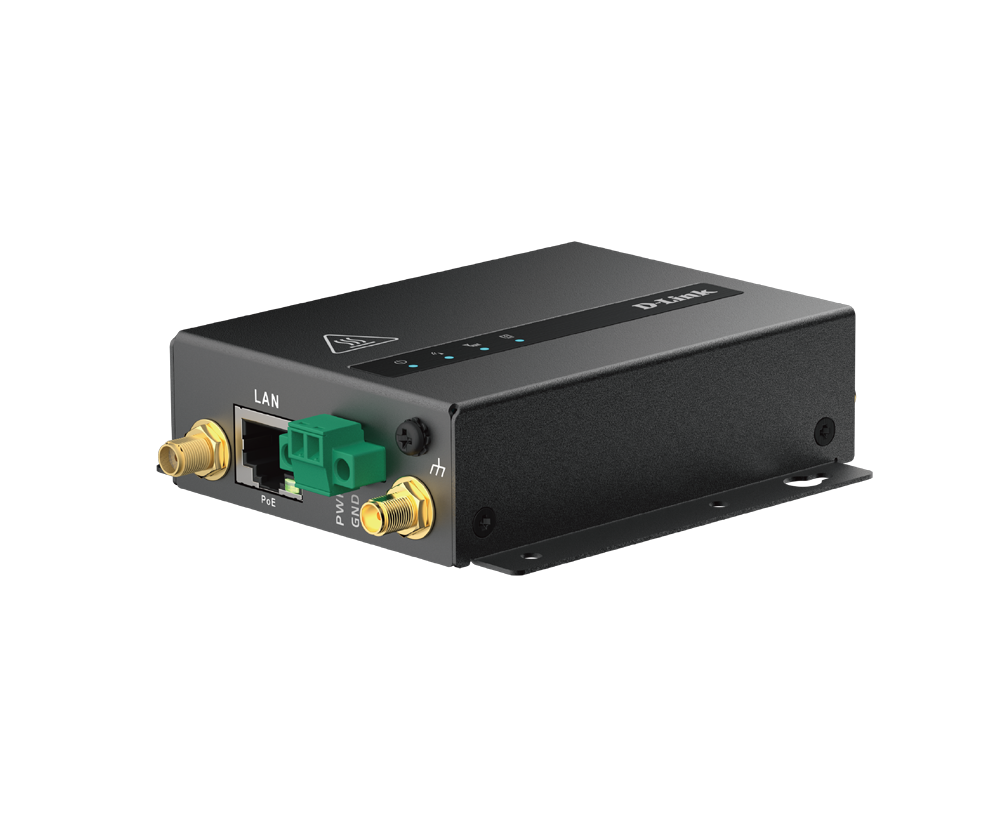

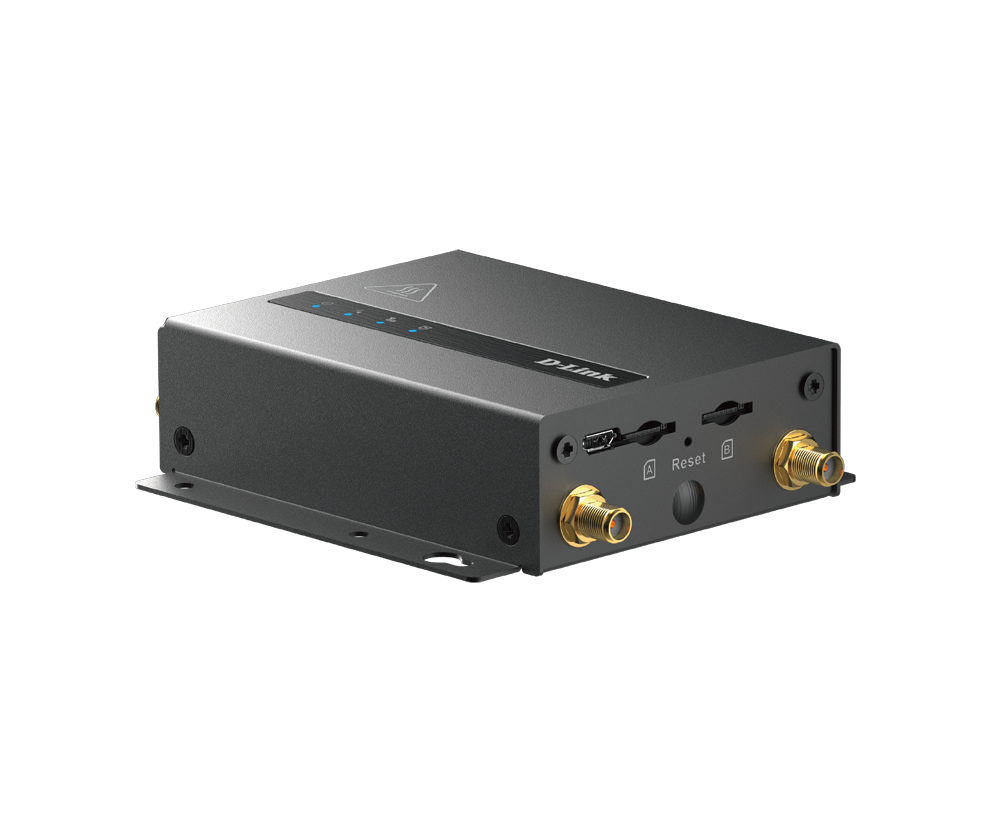

5G Multi-Gigabit PoE Rugged M2M Modem
DWM-311-GP
- Product Status (Revision AX_v1.11WW): Live
- 5G speeds of up to 3.4 Gbps1 for ultra-fast internet access and data transfer
- 1 x 10/100/1000/2500 Ethernet PoE LAN port for high-speed PoE-enabled connectivity
- 2 x SIM slots for plug-and-play dual-mode WAN connectivity with failover
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Shipping Globally | Coming Soon to North America
Where to buy
High Speed 5G NR (Dual SIM w/ Failover)
5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.
2.5 GbE PoE Port (PSE)
2.5 GbE PoE LAN port to connect PD device for high-throughput mission-critical M2M applications.
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.
Power Smarter Operations with 5G and Multi-Gigabit Connectivity
The DWM-311-GP 5G Multi-Gigabit PoE M2M Modem delivers high-speed connectivity to support real-time data transfer and remote monitoring. Designed for simplified deployment, its compact form factor—measuring just 4.76 x 3.62 x 1.26 inches (121 x 92 x 32 mm)—fits easily into space-constrained environments such as smart poles, kiosks, surveillance systems, and digital signage enclosures. PoE support enables both data and power over a single cable, helping reduce wiring complexity. The built-in VPN client enables encrypted communication, offering enhanced security for data transmission and contributing to more secure, reliable operations.
Empower Your M2M Network with PoE+
The 5G Multi-Gigabit PoE M2M Modem featuring 802.3af/at Power over Ethernet (PoE+) technology, delivers both data and power through a single Ethernet cable. As a Power Sourcing Equipment (PSE) solution, it helps streamline M2M communication for IoT applications by reducing the need for separate electrical infrastructure, which can simplify deployment and help manage installation costs. Well-suited for powering surveillance cameras, digital signage, wireless access points, and IoT sensors, it supports flexible device placement without additional wiring. The PD-Alive feature helps detect and restart unresponsive devices, while PoE scheduling offers options for managing power consumption more efficiently.
Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-311-GP is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-311-GP to be mounted virtually anywhere to optimize signal quality.
The DWM-311-GP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Ultra-Fast 5G PoE Connectivity for Efficient Operation
The DWM-311-GP 5G Multi-Gigabit PoE M2M Modem provides high-speed 5G and Ethernet connectivity with quick setup—no special drivers or pre-configuration required. Its plug-and-play design and user-friendly web interface help simplify deployment and network management across a range of applications. Equipped with a 2.5G Ethernet port and 802.3af/at PoE support, it delivers both data and power over a single cable and includes a PD-Alive feature to detect and reboot unresponsive devices. Suitable for powering IP cameras, access points, PoE sensors, and VoIP systems, the DWM-311-GP supports consistent connectivity in environments such as traffic control systems, small retail locations, surveillance networks, and Autonomous Mobile Robot (AMR) operations.
Versatile Applications

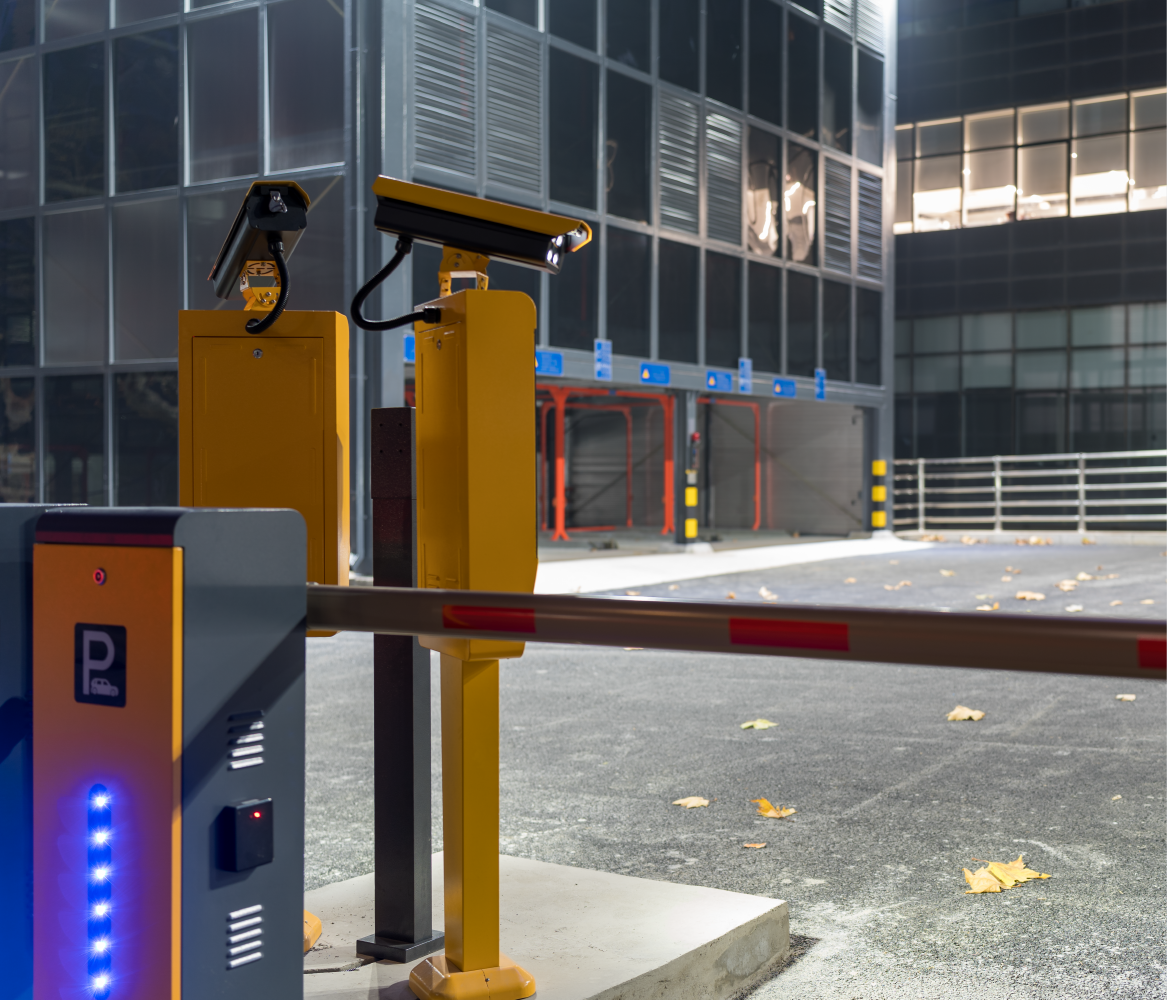

Surveillance
Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.
Access Point
Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.
IoT Sensor
Power and connect IoT sensors in remote locations to help facilitate real-time data monitoring and transmission over 4G/5G networks with enhanced security.
Smart Pole
Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.
Related Products
Specification
|
Cellular
|
5G NR SIM x 2 |
|---|---|
|
Digital I/O
|
No IO |
|
Ethernet Ports
|
1 x LAN |
|
Ethernet Speed
|
10/100/1000/2500 Mbps Port |
|
GNSS
|
No GNSS |
|
Ignition Sense
|
No IGN |
|
Modbus
|
No |
|
Network
|
Bridge DHCP Server IPv4/v6 NAT Port Forwarding |
|
Management
|
D-ECS SMS Web UI/CLI |
|
PoE
|
1 x 2.5GE (802.3at PSE) |
|
Power Input
|
DC 48V-57V |
|
Serial Interface
|
No |
|
Storage
|
No Storage |
|
VPN
|
OpenVPN |
|
WAN
|
Cellular |
|
WiFi
|
No Wi-Fi |
