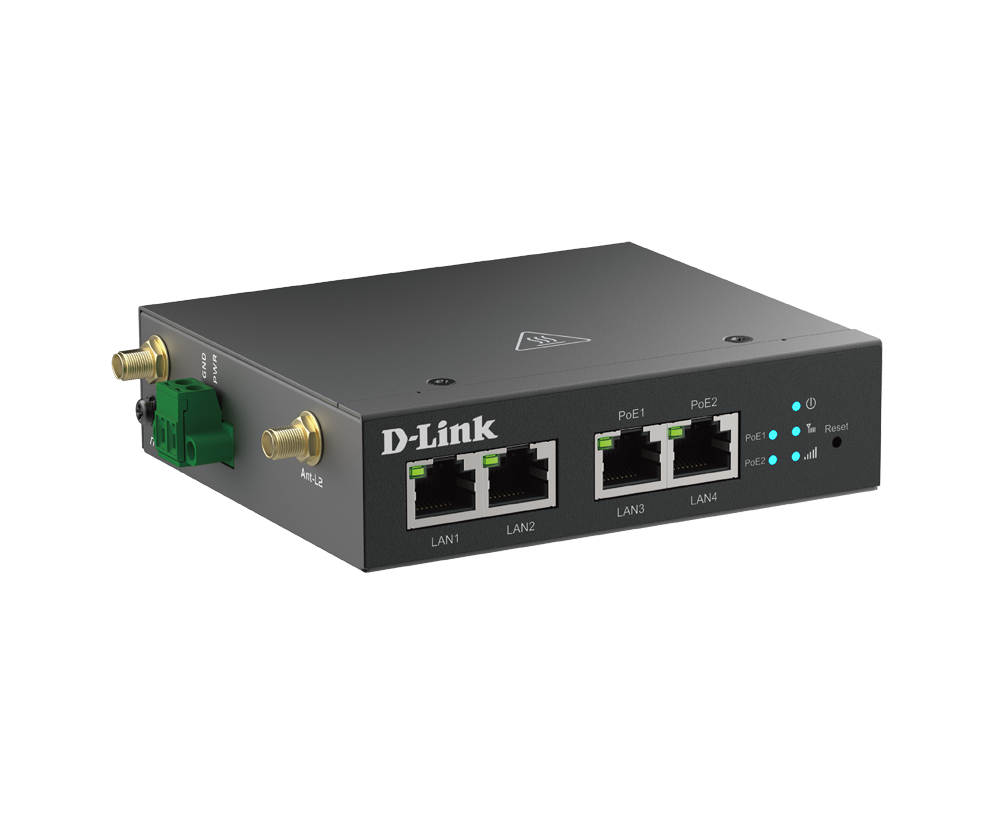

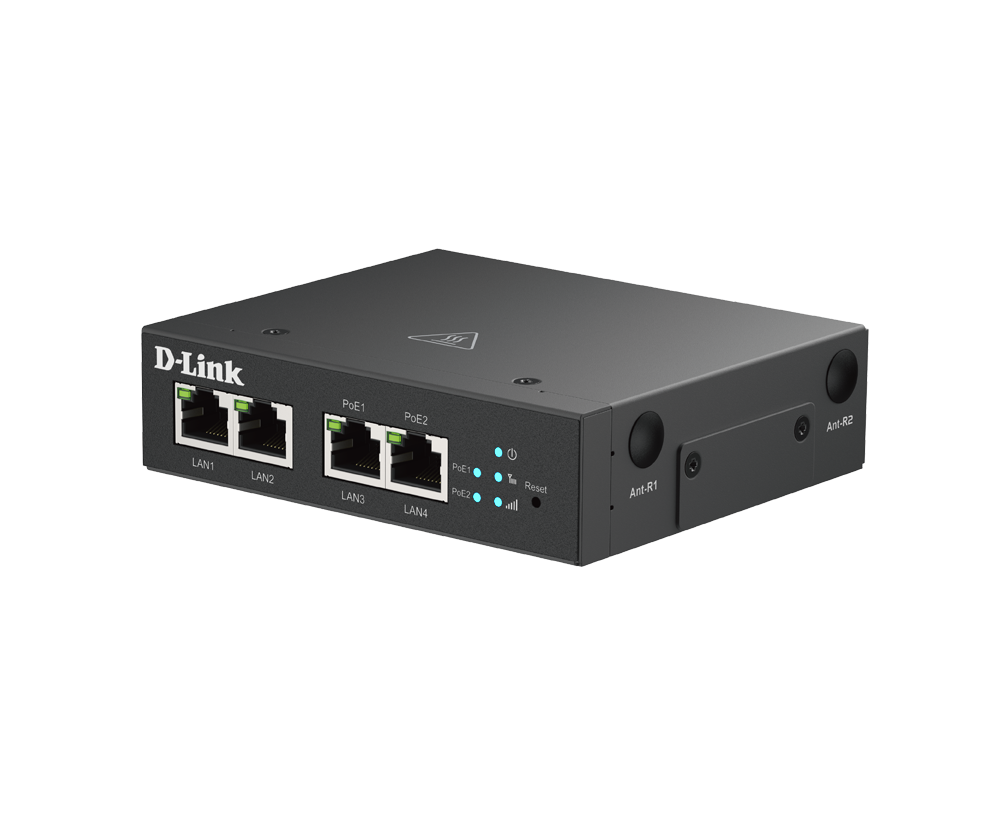

Rugged 4G Multi-Port PoE Modem

DWM-314-TP

  • Product Status (Revision AX_v1.11): Live
  • 4G LTE speeds of up to 150 Mbps1  for fast Internet access and data transfer
  • 2 x 10/100 Fast Ethernet LAN ports for reliable wired connectivity
  • 2 x 10/100 Fast Ethernet PoE LAN ports for PoE-enabled connectivity
  • 1 x SIM slot for plug-and-play WAN connectivity
  • No set up required, simply plug it in and your network is ready to go
  • Durable zinc-plated steel case
  • -30 to 70°C operating temperature to resist harsh environments
  • Wall or DIN-rail mounting allow for optimal device placement
    Shipping Globally | Coming Soon to North America

Download the datasheet.

Where to buy
Plug & Play

Simplifies setup, enhances security, and ensures reliable performance for critical applications.

PoE Connectivity (PSE)

Two Fast Ethernet PoE LAN ports to connect PD devices for M2M various application.

SMS Event Management

Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Centralized Management

Conveniently manage devices from anywhere via the D-ECS management platform.

Rugged 4G Multi-Port PoE Modem for Edge Connectivity​

The DWM-314-TP – Rugged 4G Multi-Port PoE Modem delivers 4G LTE connectivity with four Gigabit Ethernet ports and 802.3af/at PoE support, allowing data and power to be delivered over a single cable. Its compact, industrial-grade design (5.31 x 4.33 x 1.57 inches) with DIN-rail mounting enables integration into space-limited enclosures or outdoor cabinets. With a wide input voltage range (48–57V DC) and dual SIM failover, it is designed to support network continuity in remote or dynamic environments. Suitable for powering and connecting devices such as IP cameras, digital signage, environmental sensors, and access points, the DWM-314-TP is a practical choice for edge connectivity across transportation, public safety, and smart infrastructure applications.

4G PoE Modem with Built-in Switch for IoT and M2M Applications

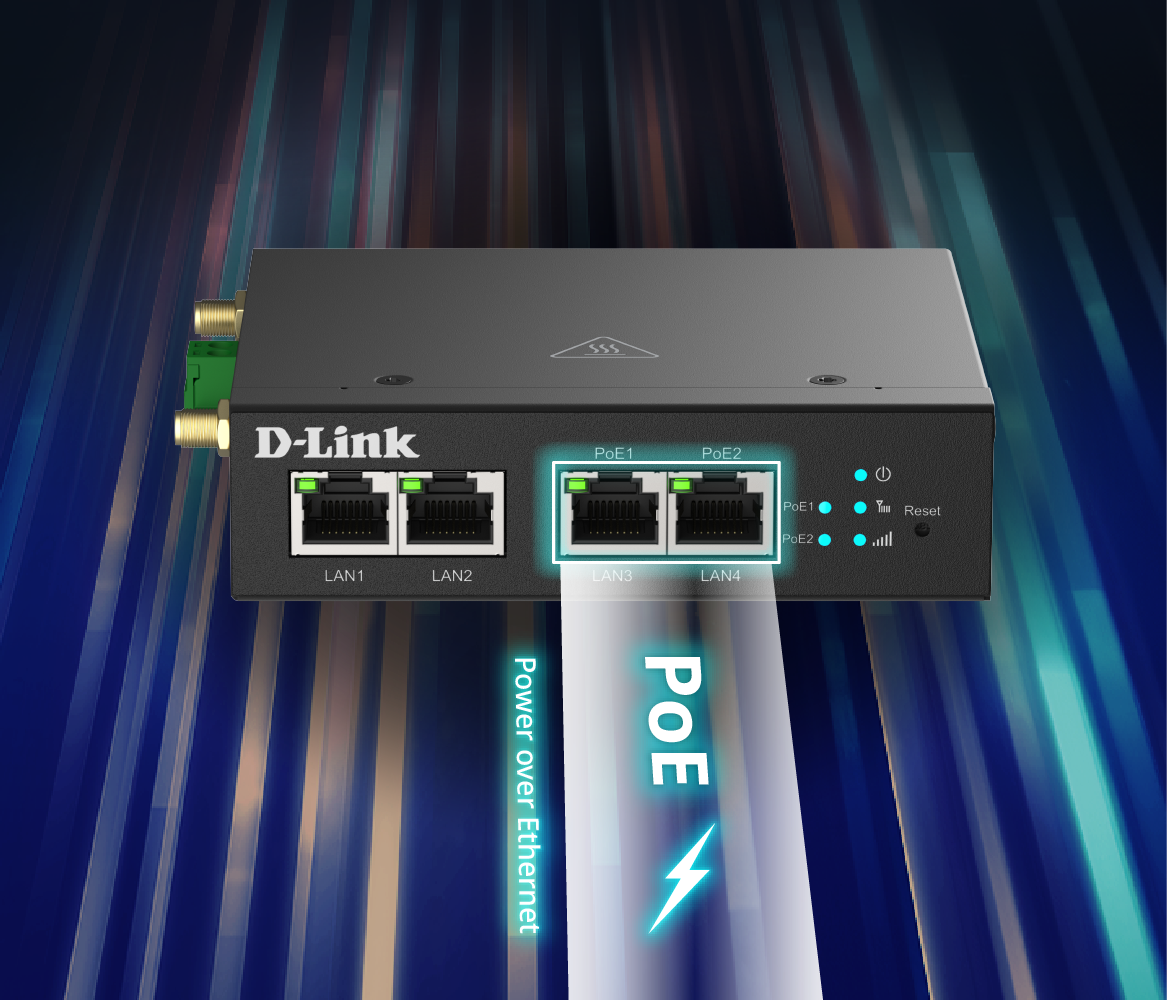

The DWM-314-TP 4G PoE Modem features a built-in 4-port Gigabit switch and supports 802.3af/at Power over Ethernet (PoE+) to deliver both data and power over Ethernet cables. As a Power Sourcing Equipment (PSE) device, it helps simplify M2M and IoT deployments by reducing the need for separate power infrastructure and additional PoE switches. It supports flexible placement of connected devices such as surveillance cameras, digital signage, wireless access points, and IoT sensors. The PD-Alive feature is designed to detect and recover unresponsive devices, while PoE scheduling offers options to manage power usage more effectively.

Robust Build Quality

The industrial-grade casing of the DWM-314-TP is built to support high-speed connectivity in challenging conditions. Its corrosion-resistant zinc-plated steel enclosure, along with a wide operating temperature range and humidity tolerance, makes it suitable for M2M applications in a variety of outdoor and industrial environments. Wall and DIN-rail mounting options offer flexibility for placement to help optimize signal quality.

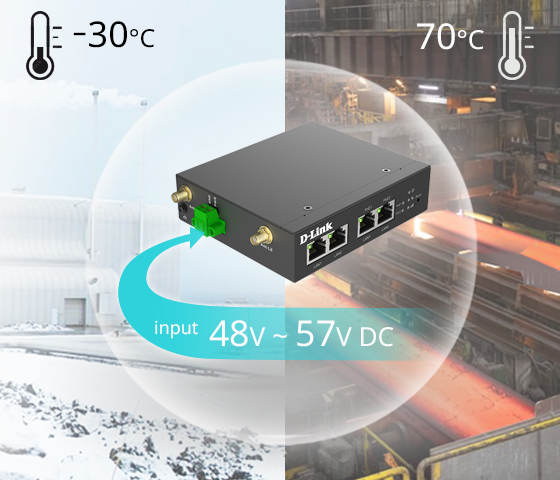

The DWM-314-TP also supports a wide input voltage range (VDC 48–57), allowing compatibility with different power sources and simplifying integration into existing infrastructure. This design supports more adaptable and efficient deployment across distributed installations.

Advanced 4G Multi-Port PoE Connectivity for High-Density Deployments

The DWM-314-TP 4G Multi-Connect PoE Modem is designed to support connectivity in more demanding environments, offering 4G LTE and Ethernet access with straightforward setup—no special drivers or pre-configuration required. Its user-friendly web interface allows for easy configuration and helps streamline deployment across a range of applications.

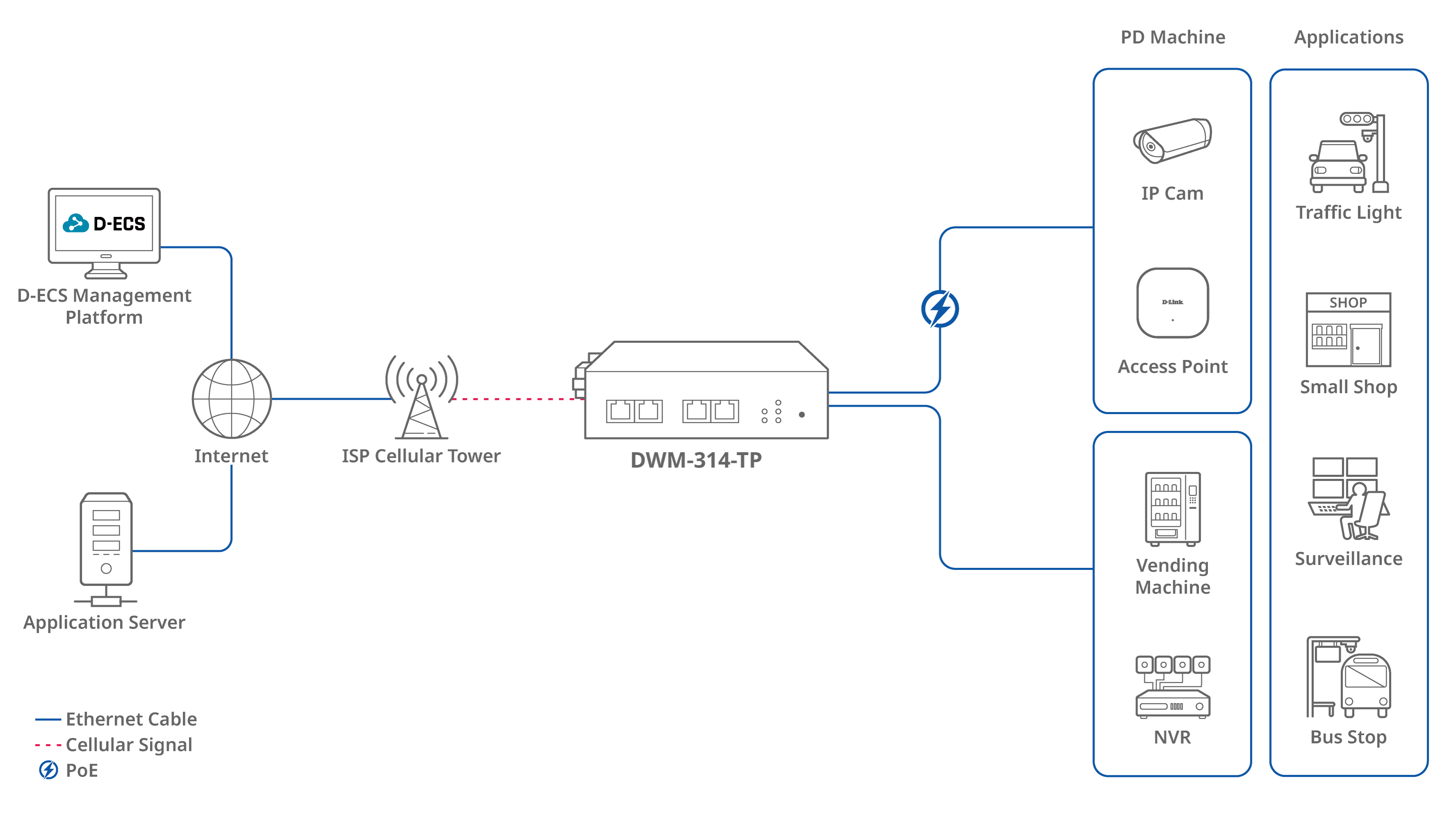

Equipped with two Fast Ethernet LAN ports and dual 802.3af/at PoE ports, the DWM-314-TP delivers both power and data to multiple Ethernet-powered devices, such as IP cameras, access points, vending machines, and NVRs. The automatic device recovery feature can reboot unresponsive devices, supporting more stable and consistent operation. By connecting multiple endpoints without requiring additional PoE switches, it may help reduce equipment needs and simplify installations. The modem is suited for high-usage scenarios, including traffic systems, retail environments, surveillance networks, and public infrastructure like bus stops.

Versatile Applications

Surveillance​

Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.​

Access Point​

Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.​

IoT Sensor​

Power and connect IoT sensors in remote locations to support real-time data monitoring and transmission over secure 4G networks.

Smart Pole​

Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.​​

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Related Products

4G M2M PoE Modem​
DWM-311-TP
Find out more
5G Multi-Gigabit PoE Rugged M2M Modem
DWM-311-GP
Find out more
5G PoE Rugged Modem/Gateway
DWM-314-GP
Find out more
Cellular
4G LTE
SIM x 1
Digital I/O
No IO
Ethernet Ports
4 x LAN
Ethernet Speed
10/100 Mbps Port
GNSS
No GNSS
Ignition Sense
No IGN
Modbus
No
Network
DHCP Server
IPv4/v6
NAT
Port Forwarding
Management
D-ECS
SMS
Web UI/CLI
PoE
2 x FE (802.3at PSE)
Power Input
DC 48V-57V
Serial Interface
No
Storage
No Storage
VPN
OpenVPN
WAN
Cellular
WiFi
No Wi-Fi
