4G M2M PoE Modem​

DWM-311-TP

  • Product Status (Revision AX_v1.11): Live
  • Transfer speeds of up to 150 Mbps1 for fast internet access and data transfer
  • 1 x 10/100 Fast Ethernet PoE LAN port for PoE-enabled connectivity
  • 1 x SIM slot for plug-and-play WAN connectivity
  • No set up required, simply plug it in and your network is ready to go
  • Durable zinc-plated steel case
  • -30 to 70°C operating temperature to resist harsh environments
  • DIN-rail mounting allows for optimal device placement
    Shipping Globally | Coming Soon to North America

Download the datasheet.

Where to buy
Plug & Play

Simplifies setup, enhances security, and ensures reliable performance for critical applications.

PoE Connectivity (PSE)

Fast Ethernet PoE LAN port to deliver both data and power to a PD device for M2M various application.​

SMS Event Management

Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Centralized Management

Conveniently manage devices from anywhere via the D-ECS management platform.

Flexible 4G Modem for Environmental and Edge Applications

The DWM-311-TP 4G PoE Modem provides 4G LTE connectivity with dual SIM slots and failover functionality to help maintain service across changing network conditions. Compact in size at just 3.94 x 3.07 x 1.26 inches (100 x 78 x 32 mm), it fits easily into space-limited enclosures or outdoor cabinets. With 802.3af/at PoE support, it delivers both power and data through a single cable—helping streamline installation for remote or distributed deployments. While well-suited for environmental sensing and real-time monitoring of temperature, humidity, and weather data, it can also support a range of M2M and IoT applications, including industrial sensors, kiosks, smart meters, transportation systems, and digital signage. Its web-based interface supports straightforward setup and remote management across varied field applications..

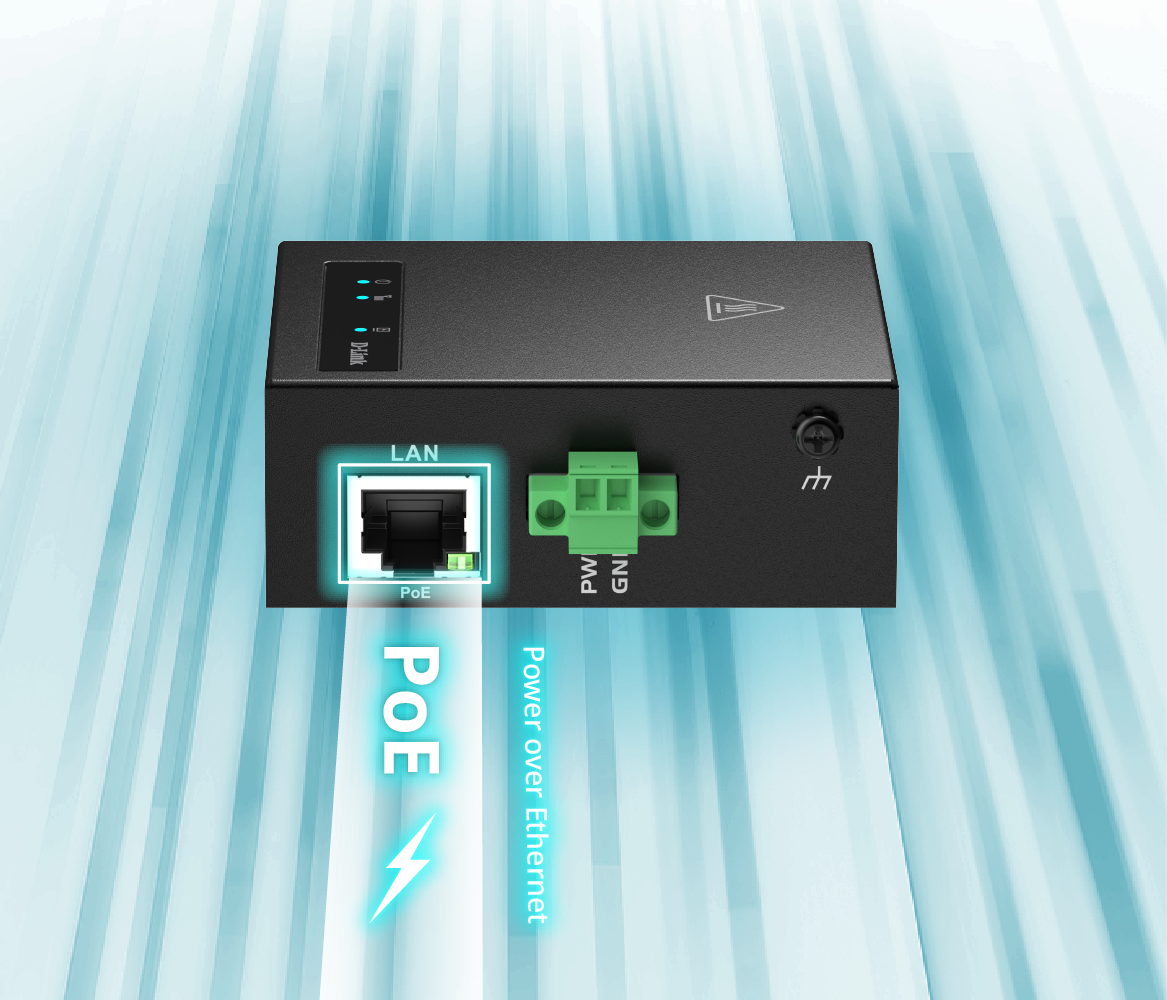

Empower Your M2M Network with PoE+​

The DWM PoE Modem Series, featuring 802.3af/at Power over Ethernet (PoE+) technology, delivers both data and power through a single Ethernet cable. As a true PSE (Power Sourcing Equipment) solution, it streamlines M2M communication for IoT applications, reducing the need for separate electrical infrastructure and lowering installation costs. Ideal for powering surveillance cameras, digital signage, wireless access points, and IoT sensors, it offers flexible device placement without extra wiring. Its PD-Alive feature minimizes downtime, ensuring continuous operation, while PoE scheduling optimizes power use and cuts energy costs.​

Robust Build Quality

The industrial-grade casing of the DWM-311-TP is built to support high-speed connectivity in challenging environments. Its corrosion-resistant, zinc-plated steel enclosure, along with a wide operating temperature range and humidity tolerance, makes it suitable for demanding M2M applications across various settings. DIN-rail mounting support adds flexibility for positioning in space-constrained installations or optimizing signal quality.

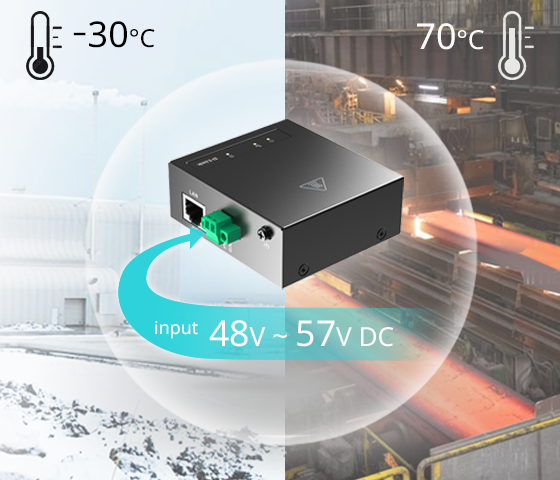

The DWM-311-TP is also designed to handle a wide input voltage range (VDC 48–57), offering flexibility when selecting a power source and supporting smoother integration into different deployment environments.

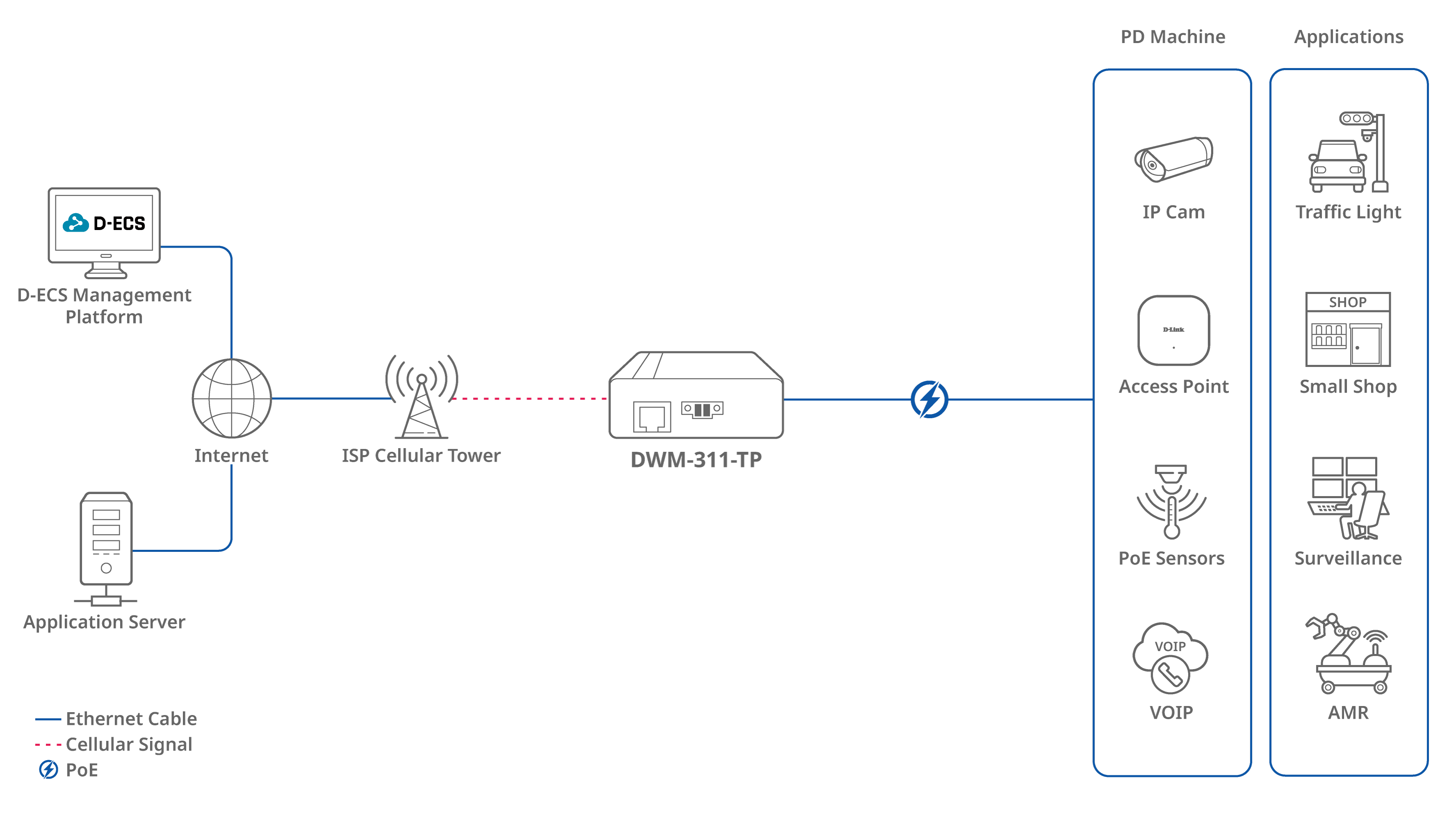

Seamless 4G PoE Connectivity for Efficient Operations​

The DWM-311-TP 4G M2M PoE Modem supports 4G LTE and Ethernet connectivity for PoE devices, with plug-and-play functionality to help simplify deployment. Its Fast Ethernet port with 802.3af/at PoE supports both data and power delivery over a single cable—making it suitable for IP cameras, access points, PoE sensors, and VoIP systems. An auto-reboot feature helps maintain device responsiveness by restarting unresponsive endpoints. Well-suited for traffic systems, small retail environments, surveillance setups, and Autonomous Mobile Robots (AMR), the DWM-311-TP offers secure, flexible connectivity with an intuitive web-based interface for configuration and management.

Versatile Applications

Surveillance​

Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.

Access Point​

Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.​

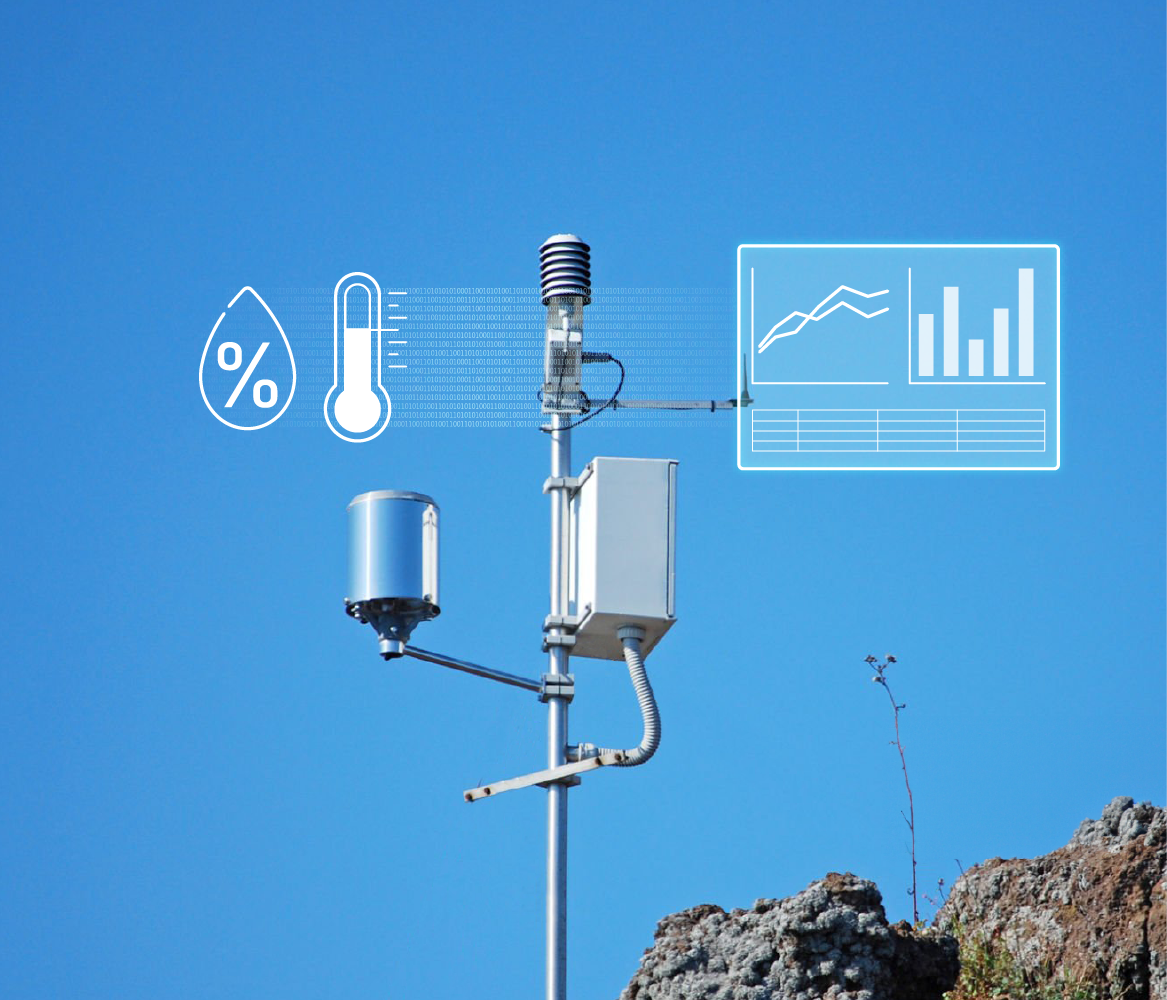

IoT Sensor​

Power and connect IoT sensors in remote locations to support real-time data monitoring and transmission over secure 4G networks.

Smart Pole​

Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.​​

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Related Products

5G Multi-Gigabit PoE Rugged M2M Modem
DWM-311-GP
Find out more
Rugged 4G Multi-Port PoE Modem
DWM-314-TP
Find out more
5G PoE Rugged Modem/Gateway
DWM-314-GP
Find out more
Cellular
4G LTE
SIM x 1
Digital I/O
No IO
Ethernet Ports
1 x LAN
Ethernet Speed
10/100 Mbps Port
GNSS
No GNSS
Ignition Sense
No IGN
Modbus
No
Network
Bridge
DHCP Server
IPv4/v6
NAT
Port Forwarding
Management
D-ECS
SMS
Web UI/CLI
PoE
1 x FE (802.3at PSE)
Power Input
DC 48V-57V
Serial Interface
No
Storage
No Storage
VPN
OpenVPN
WAN
Cellular
WiFi
No Wi-Fi
